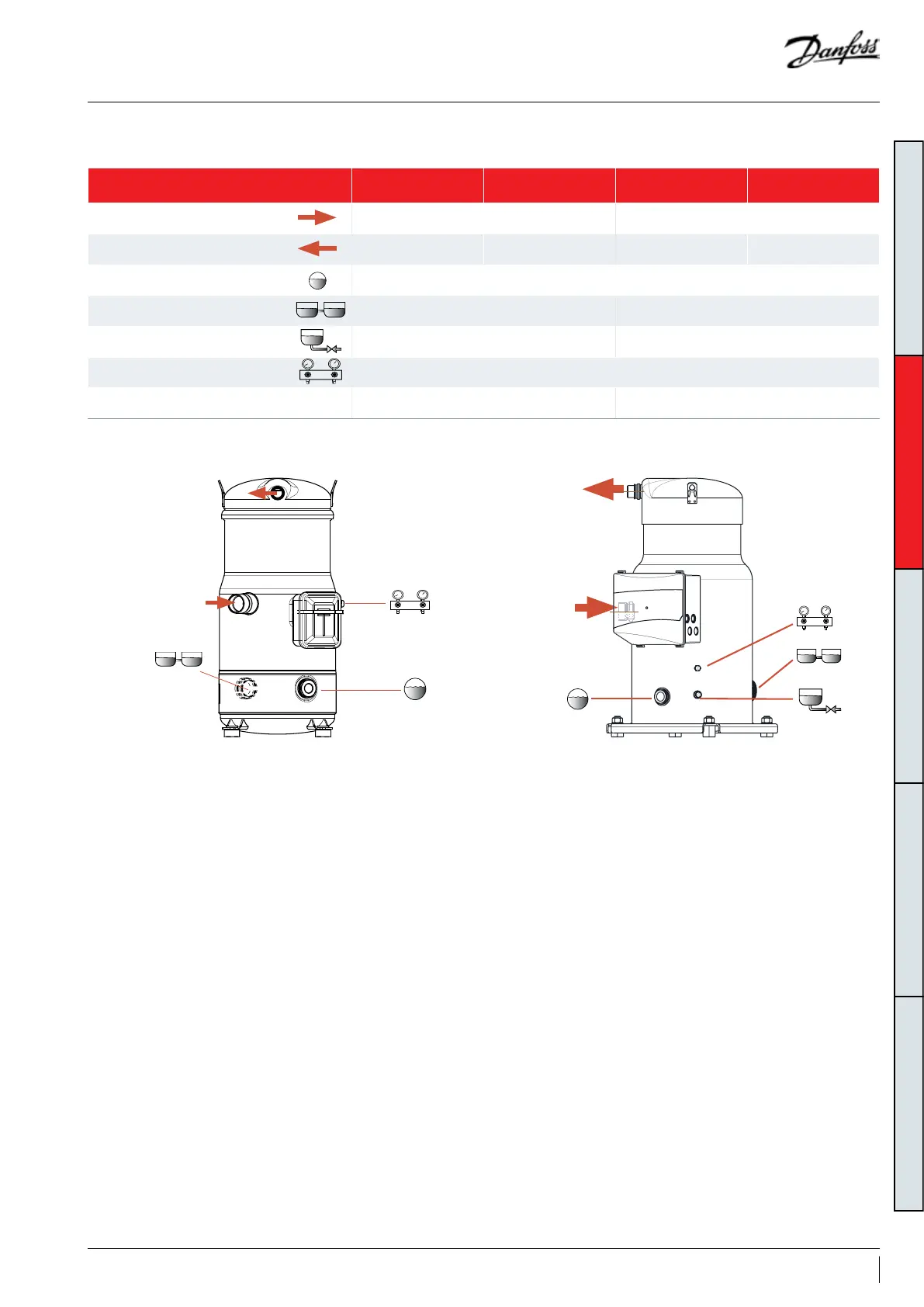

Dimensions
Connection Details
DSH090 DSH105-120 -140-161-184 DSH240-295-381 DSH485
Suction connection Brazed 1"1/8 Brazed 1"3/8 Brazed 1"5/8 Brazed 1"5/8
Discharge connection Brazed 7/8" Brazed 7/8" Brazed 1"1/8 Brazed 1"3/8
Oil sight glass Threaded (1"1/8 – 18 UNEF)
Oil equalization connection Rotolock 1"3/4 Rotolock 2"1/4
Oil drain connection None Female ¼" Flare incorporating a Schrader valve
Low pressure gauge port (Shrader) Male ¼" Flare incorporating a Schrader valve
Outline
