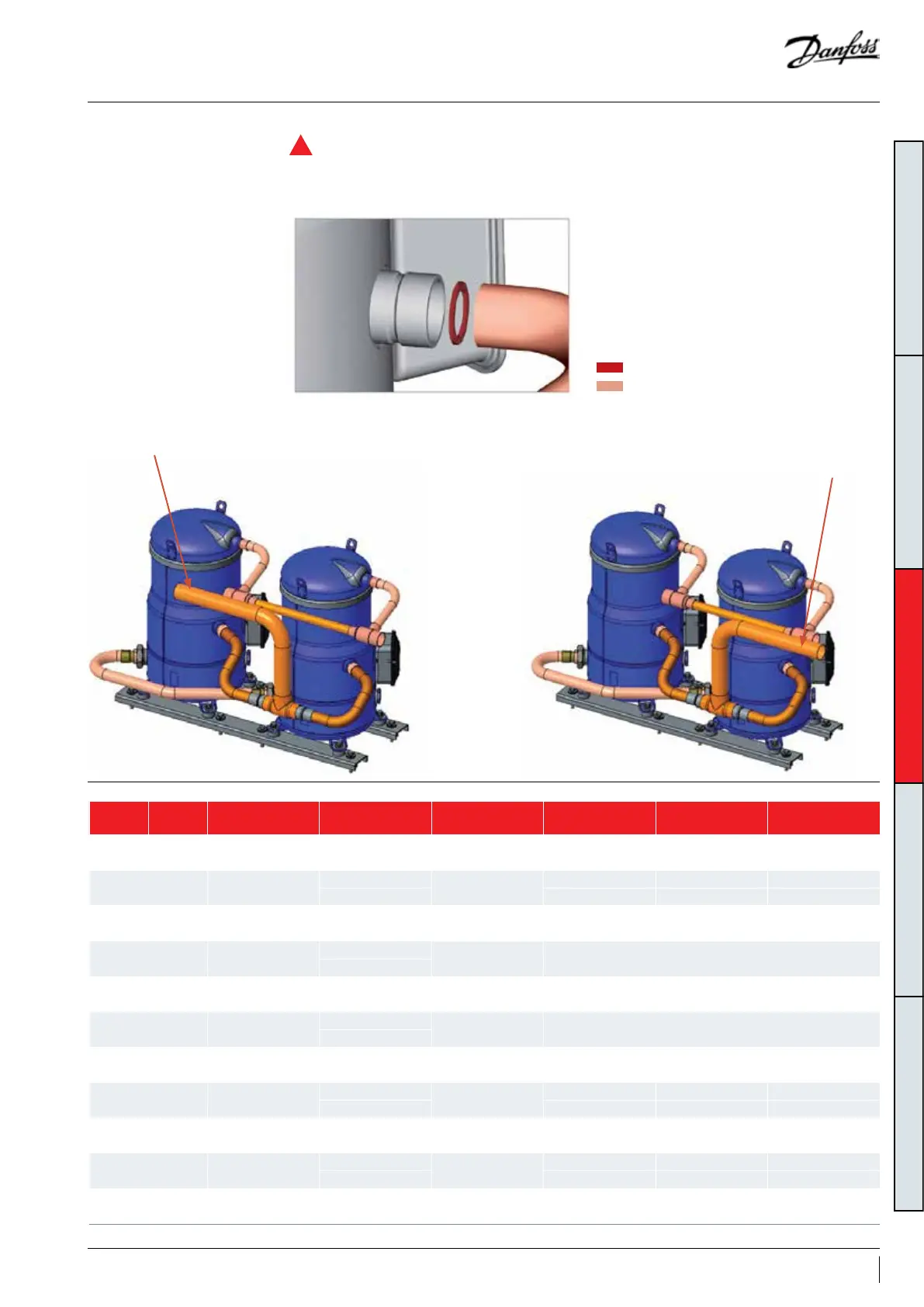

Suction washer position Depending on manifold configuration, it is
essential to equalize the pressure of compressor
sumps. Hence, a suction washer must be added
on certain compressors according to the table.
Suction washers are included in tandem or trio
accessory kits as described in the illustrations.
R
Included in tandem or trio accessory kit
Not supplied
Design piping
On tandem models
Compressor1
(Cp1)
Compressor1
(Cp1)
Right suction
Left suction
Compressor2
(Cp2)
Compressor2
(Cp2)
Cp1 Cp2 Tandem Model Suction From Kit Code No To Order Washer Reference
Washer Inner
Diameter
Washer In Suction Of
DSH090 + DSH090 DSH180E
Left
120Z0634 Not needed
Right
DSH090 + DSH105 DSH195U
Left
120Z0694
5312497P01 25mm (0.98inch) Cp2
Right 5312497P05 26mm (1.02inch) Cp2
DSH090 + DSH120 DSH210U
Left
120Z0694
5312497P04 27mm (1.06inch) Cp2
Right 5312497P04 27mm (1.06inch) Cp2
DSH105 + DSH105 DSH210E
Left
120Z0634 Not needed
Right
DSH090 + DSH140 DSH230U
Left
120Z0694
5312639P05 23mm (0.91inch) Cp1
Right 5312639P05 23mm (0.91inch) Cp1
DSH120 + DSH120 DSH240E
Left
120Z0634 Not needed
Right
DSH090 + DSH161 DSH251U
Left
120Z0694
5312639P07 21mm (0.83inch) Cp1
Right 5312639P07 21mm (0.83inch) Cp1
DSH120 + DSH140 DSH260U
Left
120Z0692
5312497P04 27mm (1.06inch) Cp1
Right 5312497P04 27mm (1.06inch) Cp1
DSH090 + DSH184 DSH274U
Left
120Z0693
5312639P01 20mm (0.79inch) Cp1
Right 5312639P01 20mm (0.79inch) Cp1
DSH120 + DSH161 DSH281U
Left
120Z0692
5312497P01 25mm (0.98inch) Cp1
Right 5312497P01 25mm (0.98inch) Cp1
DSH140 + DSH140 DSH280E
Left
120Z0634 Not needed
Right
Tandem to be achieved by assembly of individual compressors
