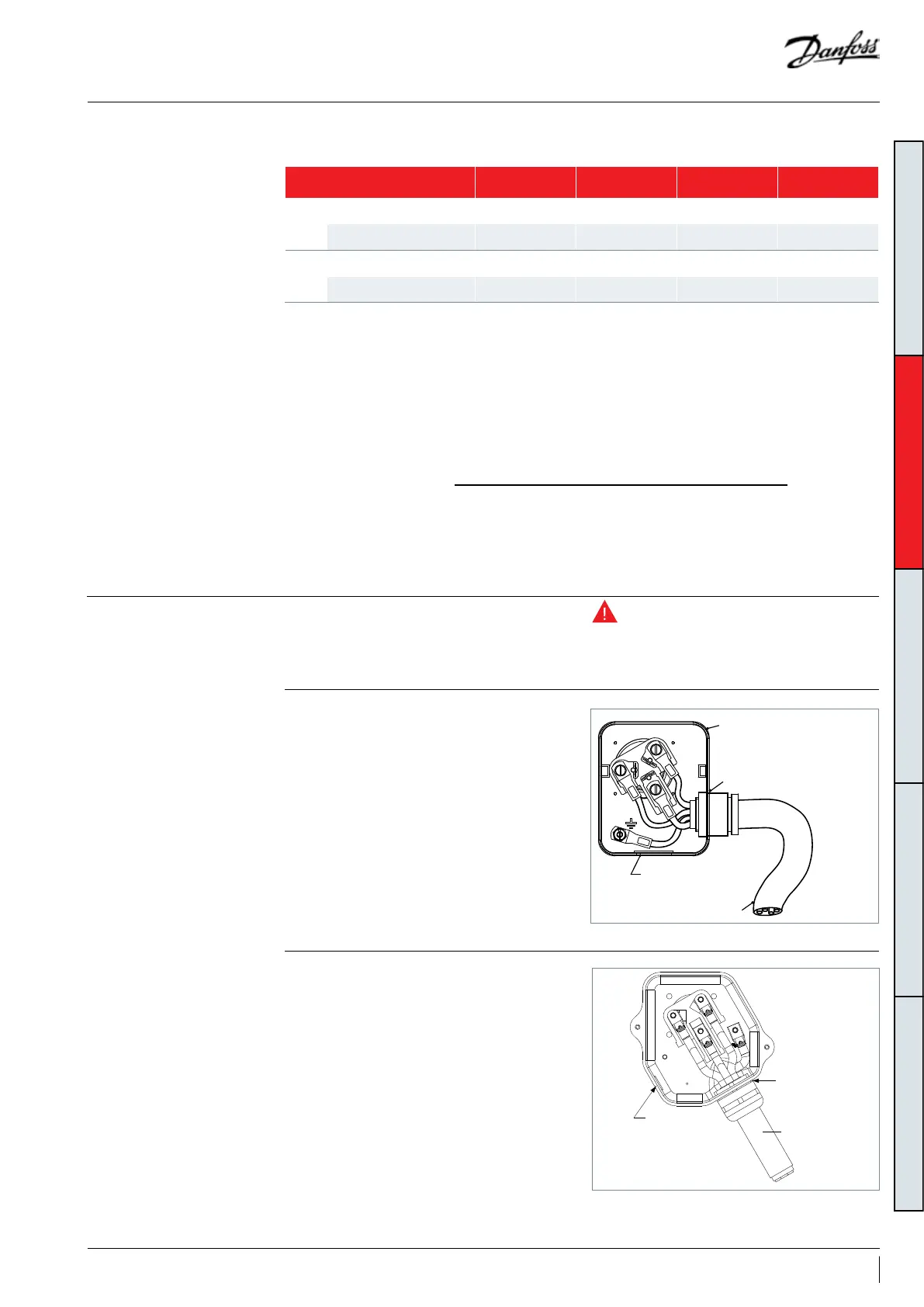

Electrical data, connections and wiring
Danfoss scroll compressors DSH are available in four different motor voltages as listed below.
Electrical power is connected to the compressor
terminals by Ø 4.8mm (3/16") screws. The
maximum tightening torque is 3Nm. Use a 1/4"
ring terminal on the power leads.
Cable gland or similar protection
component must be used on electrical box's
knockouts to against accidental contact with
electrical parts inside.
Motor voltage
Wiring connections
DSH090-105-120-140-161
*except DSH140-161 code3
DSH140-161 code3 &
DSH184
The terminal box is provided with a Ø 25.5mm
(φ1 inch) (ISO25) and a Ø 29mm (φ1.14) (PG21)
knockouts.
The terminal box is provided with a Ø 40.5mm
(φ1.59inch) hole (ISO40) for power supply and a
Ø 16.5mm (φ0.65inch) knockout (ISO16).
Motor voltage code Code 3 Code 4 Code 7 Code 9
50Hz
Nominal voltage -
380-415V-3ph
380-400V-3ph*
- -
Voltage range*** -
342-457V
342-440V*
- -
60Hz
Nominal voltage 200-230V-3ph 460V-3ph 575V-3ph
380-400V-3ph
380V-3ph **
Voltage range*** 180-253V 414-506V 517- 632V
342-440V
342-418V **
* DSH240-4 and DSH381-4
** DSH240-9 to DSH485-9
*** The voltage range indicates where the compressor can run in the majority of the application envelope. A boundary voltage
supply which accumulates under specific conditions such as high ambiance, high superheat, or map boundary conditions, may lead
to a compressor trip.
Vavg = Mean voltage of phases 1, 2, 3.
V1-2 = Voltage between phases 1 and 2.
V1-3 = Voltage between phases 1 and 3.
V2-3 = Voltage between phases 2 and 3.
| Vavg - V1-2 | + | Vavg - V1-3 | + | Vavg - V2-3 |
2 x Vavg
% voltage
imbalance
= x 100
The maximum allowable voltage imbalance is
2%. Voltage imbalance causes high amperage
over one or several phases, which in turn leads to
overheating and possible motor damage. Voltage
imbalance is given by the formula:
Terminal box
Ø 25.5mm (φ1inch) knockout
Power supply
Ø 29mm (φ1.14inch)
knockout
Ø 40.5mm
(φ1.59inch) hole
Ø 16.5mm
(φ0.65inch)
knockout
Power supply
15FRCC.PC.045.A7.02
