Design compressor mounting
Tandem requirements
DSH180E to DSH368E
mounting

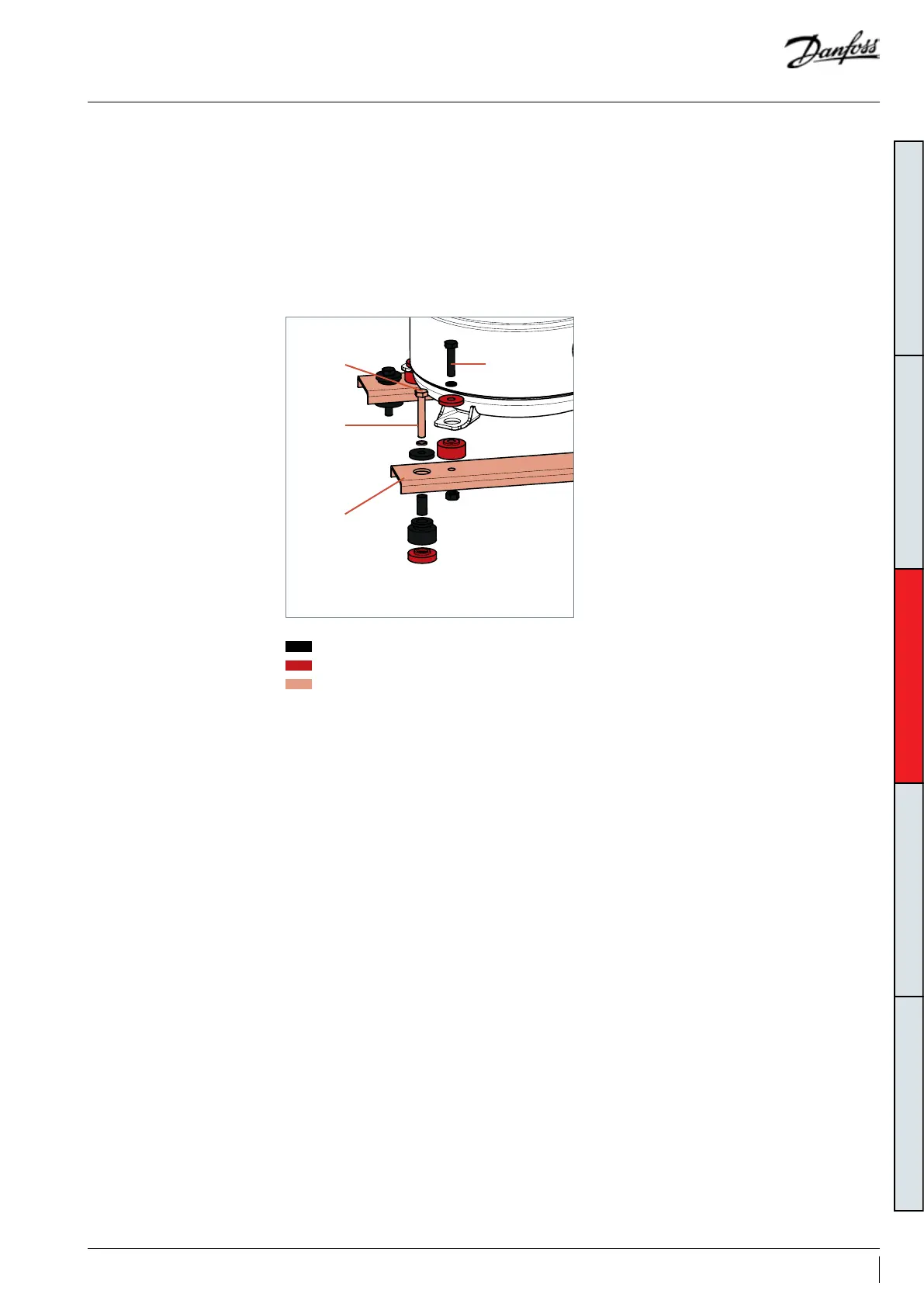

The compressors must be mounted with rigid
mounting spacers on rails. Rubber grommets and
spacers must be installed below the rails.
The rigid mounting spacers are included in
tandem accessory kits. The rubber grommets are
supplied with compressor.
For more details about parallel mounting feet,
please see parallel unit outline drawing.
Included in tandem kit
Not supplied
Supplied with the compressor
Not supplied
Φ8x75mm
0.31x2.95inch
Tightening
torque
15Nm
4mm
(0.16 inch)
thickness
Tightening
torque
15Nm
29FRCC.PC.045.A7.02
