Design piping
Included in tandem kit
Supplied with the compressor
The organ pipe needs to be installed in the
direction indicated by the label attached on pipe
surface, which will ensure best oil balance.
R

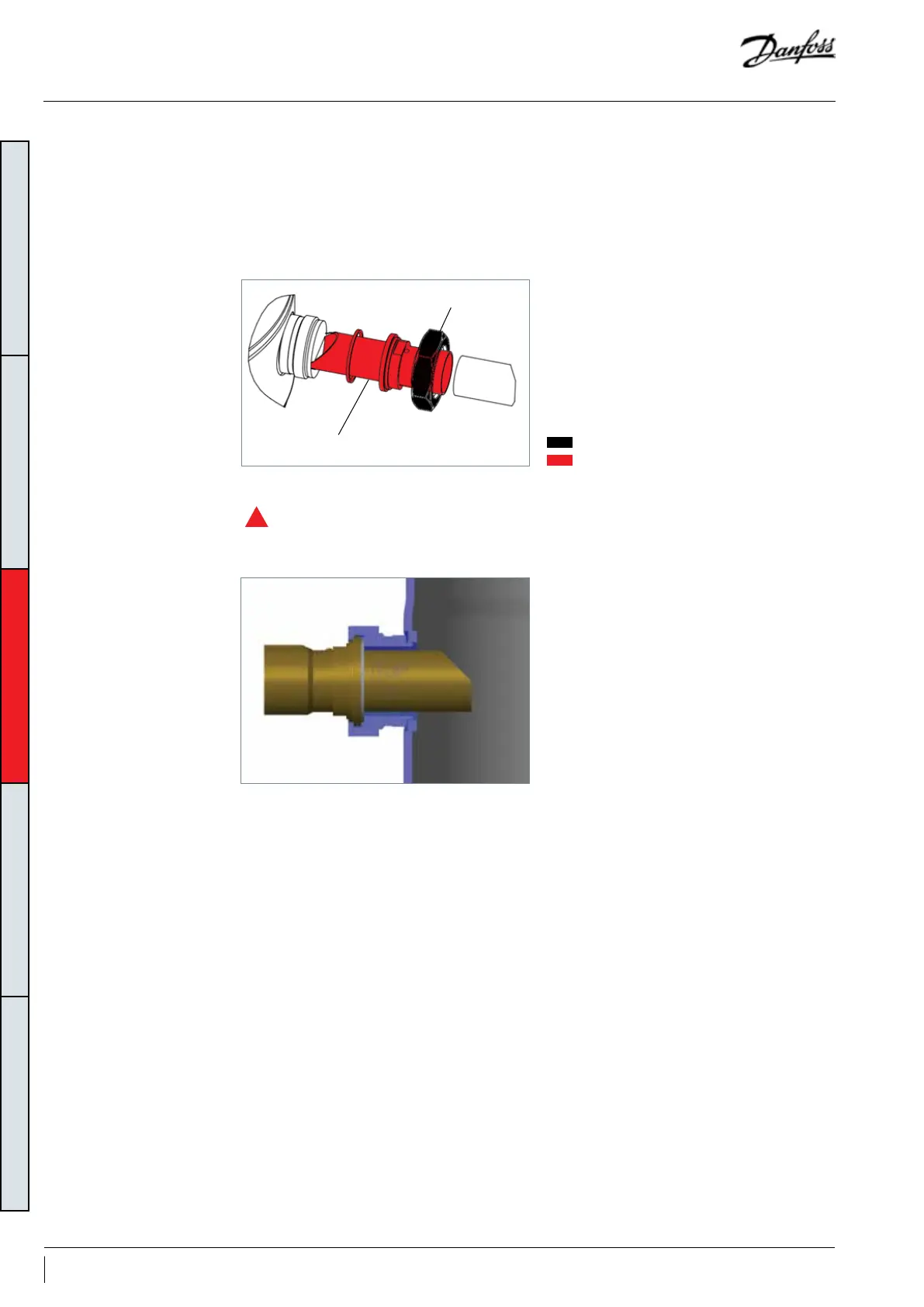

Oil equalization design
The oil level is balanced by a pipe of 1"1/8 oil
equalization line.
In order ensure best oil balance, the organ pipe
need to be mounted inside the oil equalization
port as indicated on below picture. To connect
the equalization line on rotolock connections,
the organ pipe adaptor and teflon gasket are
included in the tandem kit must be used.
DSH180E to DSH368E
Tightening torque 100Nm
Organ pipe
26 FRCC.PC.045.A7.02
