Danfoss DSH090 Application Guidelines

GENERAL INFORMATIONPRODUCT INFORMATIONINTEGRATION INTO SYSTEMORDERING INFORMATION SYSTEM DESIGN

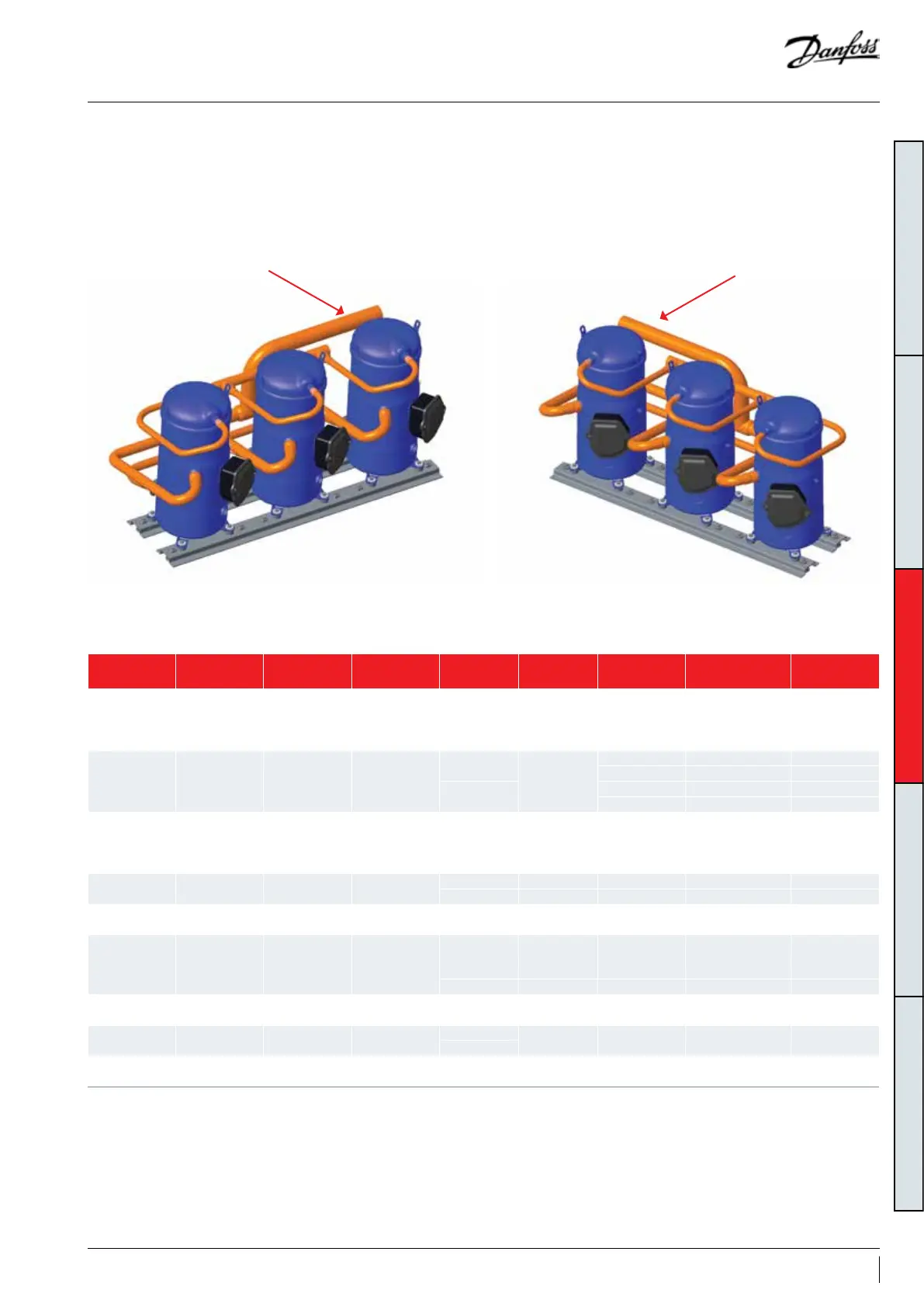

Design piping
Compressor 1
(Cp1)
Right suction Left suction
Compressor 2
(Cp2)
Compressor 3
(Cp3)
Right suction
Cp1 Cp2 Cp3 Trio model Suction from
Kit code n°
to order
Washer
reference
Washer Inner
Diameter
Washer in
suction of
DSH140 DSH140 DSH140 DSH420
Left
120Z0672
5312497P05 26mm (1.02inch) CP1
5312497P06 24mm (0.94inch) CP3
Right
5312639P04 24.5mm (0.96inch) CP1
5312639P04 24.5mm (0.96inch) CP3
DSH161 DSH161 DSH161 DSH483
Left
120Z0684
5312497P05 26mm (1.02inch) CP1
5312497P01 25mm (0.98inch) CP3
Right
5312497P05 26mm (1.02inch) CP1
5312497P01 25mm (0.98inch) CP3
DSH184 DSH184 DSH184 DSH552
Left
120Z0685
5312497P04 27mm (1.06inch) CP1
5312497P06 24mm (0.94inch) CP3
Right
5312497P08 26.5mm (1.04inch) CP1
5312639P04 24.5mm (0.96inch) CP3
DSH240 DSH240 DSH240 DSH720
Left 120Z0673 5311579 P0 8 30mm (1.18inch) Cp3
Right 7777039 5311579P03 34.5mm (1.36inch) Cp1 and Cp3
DSH295 DSH295 DSH295 DSH885
Left 120Z0673 5311579 P0 8 30mm (1.18inch) Cp3
Right 7777039 5311579P03 34.5mm (1.36inch) Cp1 and Cp3
DSH381 DSH381 DSH381 DSH1140
Left 120Z0686
5311579 P01
5311579 P05
31mm (1.22inch)
and
29mm (1.14inch)
Cp1
and
Cp3
Right 120Z0688 5311579P01 31mm (1.22inch) Cp1
DSH381 DSH381 DSH485 DSH1245
Left
7777063 5311579 P 05 29mm (1.14 inch) Cp1
Right
DSH485 DSH485 DSH381 DSH1350
Left
7777063 5311579 P 05 29mm (1.14inch) Cp3
Right
DSH485 DSH485 DSH485 DSH1455
Left
7777040 5311579 P02 33mm (1.3inch) Cp2 and Cp3
Right
+
+ +
+ +
+ +
+
+
+
+
+
+
+
+
+
+
+
=
=
=
=
=
=
=
=
=
On trio models:
Compressor 1
(Cp1)
Compressor 2
(Cp2)
Compressor 3
(Cp3)
25FRCC.PC.045.A7.02
