GENERAL INFORMATIONPRODUCT INFORMATIONINTEGRATION INTO SYSTEMORDERING INFORMATION SYSTEM DESIGN
DSH090-105-120-140-
161-184 mounting
DSH240-295-381-485
mounting

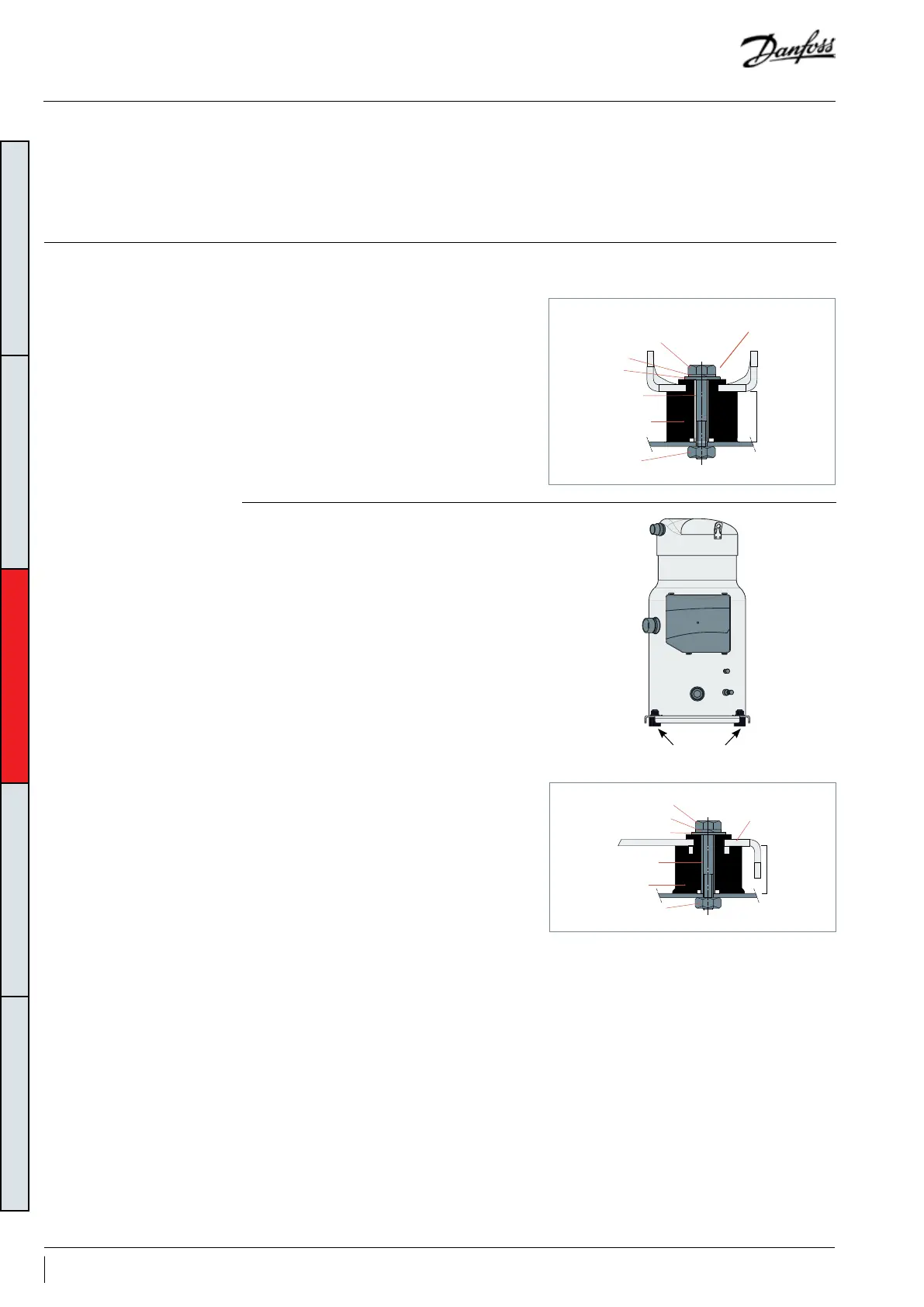

Design compressor mounting
General requirements
Single requirements
Compressors used in single applications must be
mounted with flexible grommets.
Compressors used in parallel applications must
be mounted with rigid spacers onto rails and
the manifold assembly must be mounted with
flexible grommets onto the frame.
During operation, the maximum inclination from
the vertical plane must not exceed 3 degrees.
Compressors DSH090-105-120-140-161-184
are delivered with rubber grommets and steel
mounting sleeve used to isolated the compressor
from the base frame.
The grommets must be compressed until contact
between the flat washer and the steel mounting
sleeve is established. The required bolt size for
the DSH090-105-120-140-161-184 compressors is
HM8-40. This bolt must be tightened to a torque
of 15Nm.
15mm
(0.59 inch)
HM 8 bolt
Lock washer
Flat washer
Steel mounting
sleeve
Rubber grommet
Nut
Tightening torque 15 Nm
To be used in single applications, an additional
accessory including flexible grommets is
necessary kit 8156138.
The grommets must be compressed until contact
between the flat washer and the steel mounting
sleeve is established. The required bolt size for
the DSH240-295-381-485 compressors is HM8-55.
This bolt must be tightened to a torque of 21Nm.
Rubber grommets from
kit 8156138
HM 8 bolt
Lock washer
Flat washer
Steel mounting sleeve
Rubber grommet
Nut
27.5 mm
(1.08 inch)
Compressor
base plate
28 FRCC.PC.045.A7.02
