Danfoss Eco Installation Guide

4
06/2015 VIJPD102 Danfoss Heating Solutions

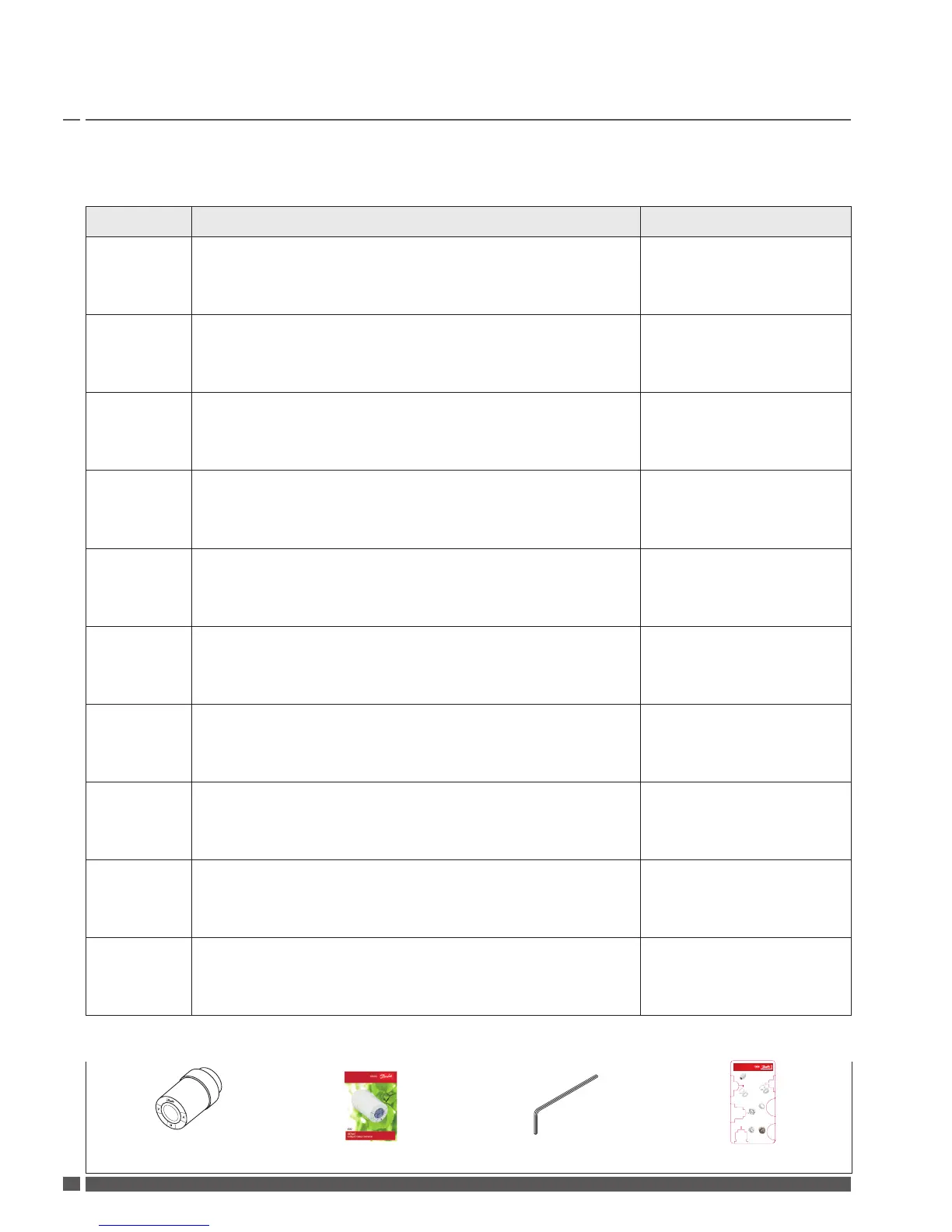

1. Installation
1.1 Identify your eco thermostat
eco comes in several versions to meet the demands of dierent markets. To identify, see the code number on the box label.
Code no. Version characteristics Quick guide languages
014G0080
(DK) eco supplied with a separate RA-, RAV, RAVL and K adapter, to
be tted on a Danfoss RA, RAV and RAVL valve or competitor valves
with M30x1,5 thread.
Default MODERATE and FORECAST ON in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0081
(DE) eco supplied with a separate RA, RAV, RAVL and K adapter, to
be tted on a Danfoss RA, RAV and RAVL valve or competitor valves
with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0082
(FR) eco supplied with a separate RA, COMAP and K adapter, to be
tted on a Danfoss RA valve,COMAP valves with M28x1,5 thread or
competitor valves with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0083
(PL, UK, NL, BE, HR, HU, RO, SK, CZ, SI, NO) eco supplied with a
separate RA, RTD and K adapter, to be tted on a Danfoss RA, and
RTD valve or competitor valves with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
PL, UK, NL, NO, CZ, HR, HU,
RO, SK, SI, FR, SE
014G0084
(AT) eco supplied with a separate RA, RTD, Hertz and K adapter,
to be tted on a Danfoss RA valve, RTD valves, Hertz valves with
M28x1,5 thread or competitor valves with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0085
(FI, LT, EE, LV, IS) eco supplied with a separate RA-and K adapter, to
be tted on a Danfoss RA valve or competitor valves with M30x1,5
thread.
Default MODERATE and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0086
(SE) eco supplied with a separate RA-, MMA, and K adapter, to be
tted on a Danfoss RA valve, an MMA valve with M28x1,5 thread or
competitor valves with M30x1,5 thread.
Default MODERATE and FORECAST OFF in software setting
PL, UK, NL, NO, CZ, HR, HU,
RO, SK, SI, FR, SE
014G0087
(ES, PT) eco supplied with a separate RA, Orkli, and K adapter, to be
tted on a Danfoss RA valve, an Orkli valve with M28x1 thread or
competitor valves with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0088
(IT) eco supplied with a separate RA-, Herz and K adapter, to be
tted on a Danfoss RA valve, an Herz valve with M28x1,5 thread or
competitor valves with M30x1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
014G0089
(CH) eco supplied with a separate RA-, RAV, RAVL and K adapter, to
be tted on a Danfoss RA, RAV and RAVL valve or competitor valves
with M30x 1,5 thread.
Default QUICK and FORECAST OFF in software setting
DK, UK, FI, LT, EE, LV, IS, DE,
FR, ES, PT, IT
1.2 In the package (eco are supplied with the adapters as above.) Each pack contains:
eco sensor Quick Guide Allen key, 2 mm Adapter Guide
Installation Guide eco Intelligent Radiator Thermostat
RAV
(Old Danfoss)
RAVL
(Old Danfoss)
RA
(Danfoss)
M28
(Ø28 mm)
Orkli, Comap,
Herz, MMA
013R9598
M30
(Ø30 mm)
Heimeier, TA,
Oventrop,
Honeywell
Adapter
selection guide
RTD
(Old Danfoss)

Danfoss Eco Specifications

General

Package weight	250 g
Accuracy	50 sec/month
Noise level	30 dB
Certification	CE, ERC, EAC
Product color	White
Smart thermostat	-
Spindle movement	2 - 4.5 mm
Operating frequency	2400 MHz
Wireless connection	Yes
Maximum water temperature	90 °C
Storage temperature (T-T)	-20 - 65 °C
Temperature control range	4 - 28 °C
Operating temperature (T-T)	0 - 40 °C
International Protection (IP) code	IP20
Display type	LCD
Battery type	AA
Battery voltage	1.5 V
Power consumption (typical)	1.2 W
Number of batteries supported	2

Weight and Dimensions

Weight	100 g
