Danfoss Eco Installation Guide

12
06/2015 VIJPD102 Danfoss Heating Solutions

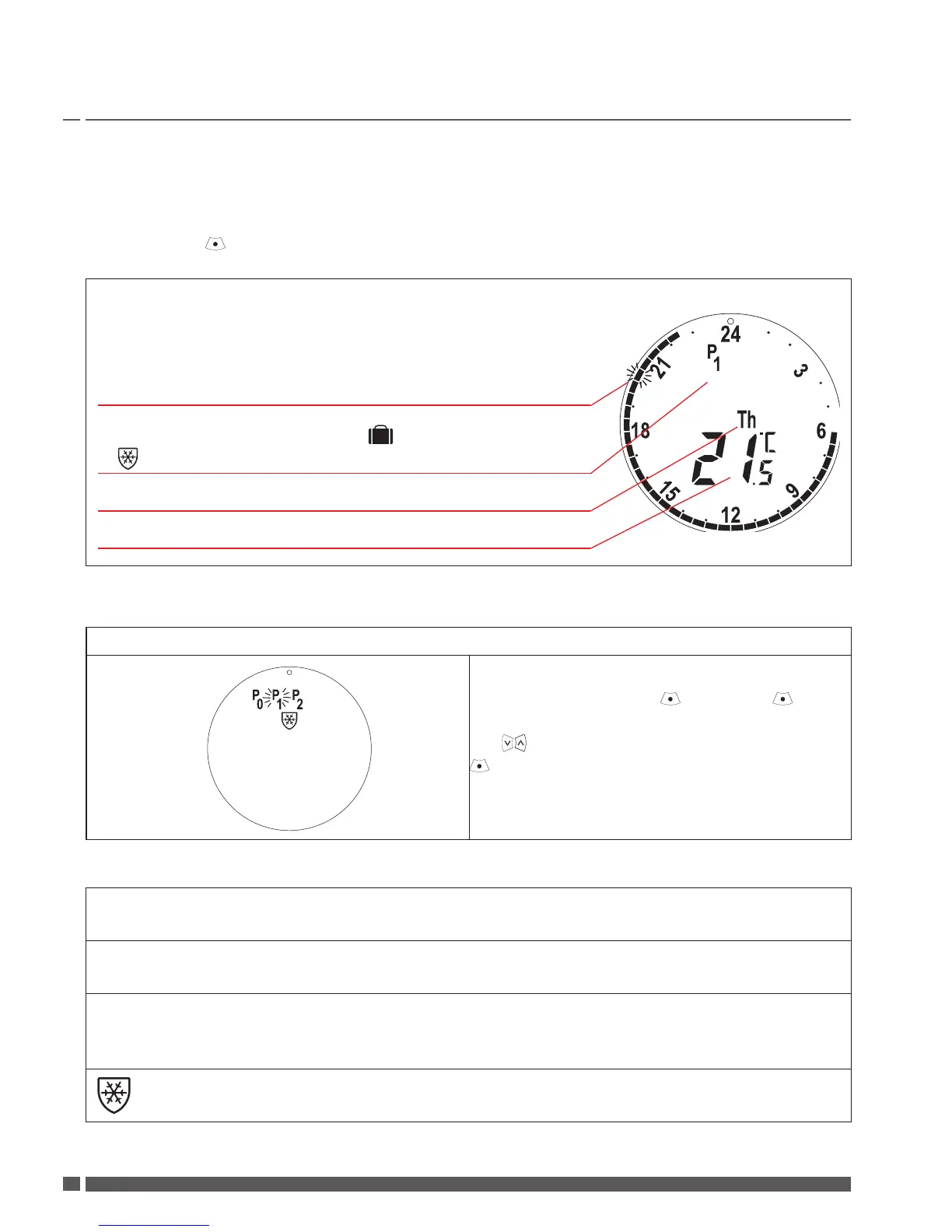

3. Display and menus
3.1 Home Screen
When pressing the Home Screen appears with basic information on programming and operation
of eco:
Time is shown with the dashed circle, each segment representing
30 minutes.
• Black segments = periods with comfort temperature.
• White segments = periods with setback temperature.
• Flashing segment = current time.
The chosen programme P
0
, P
1
, P
2, (Travel)
or (Pause)
Day of week
The set temperature*
* eco is displaying the set temperature, not the measured room temperature.
3.2 Programme menu
1. To select the Programme menu:
If the display is off, press , then press again
to open theprogramme menu.
Use to shift between the programmes, press
to conrm. The chosen programme is flashing.
Display symbols in the Programme menu
P
0
Programme without automatic temperature reduction. This programme maintains the
comfort temperature of 21 degrees constant all day and night.
P
1
Saving programme which as default lowers the temperature to 17 °C at night (22:30 -
06:00 hrs). Time and temperature are congurable.
P
2
Extended saving programme which as default lowers the temperature to 17 °Cat
night (22:30 - 06:00 hrs), and during the day on weekdays (08:00 - 16:00 hrs). Time and
temperature are congurable.
Pause program. The thermostat will maintain a constant temperature of 4-10 °C in the
room, ensuring frost protection.
Note! Symbols must be flashing to be activated.
User Guide eco Intelligent Radiator Thermostat

Danfoss Eco Specifications

General

Package weight	250 g
Accuracy	50 sec/month
Noise level	30 dB
Certification	CE, ERC, EAC
Product color	White
Smart thermostat	-
Spindle movement	2 - 4.5 mm
Operating frequency	2400 MHz
Wireless connection	Yes
Maximum water temperature	90 °C
Storage temperature (T-T)	-20 - 65 °C
Temperature control range	4 - 28 °C
Operating temperature (T-T)	0 - 40 °C
International Protection (IP) code	IP20
Display type	LCD
Battery type	AA
Battery voltage	1.5 V
Power consumption (typical)	1.2 W
Number of batteries supported	2

Weight and Dimensions

Weight	100 g
