" Initial Commissioning

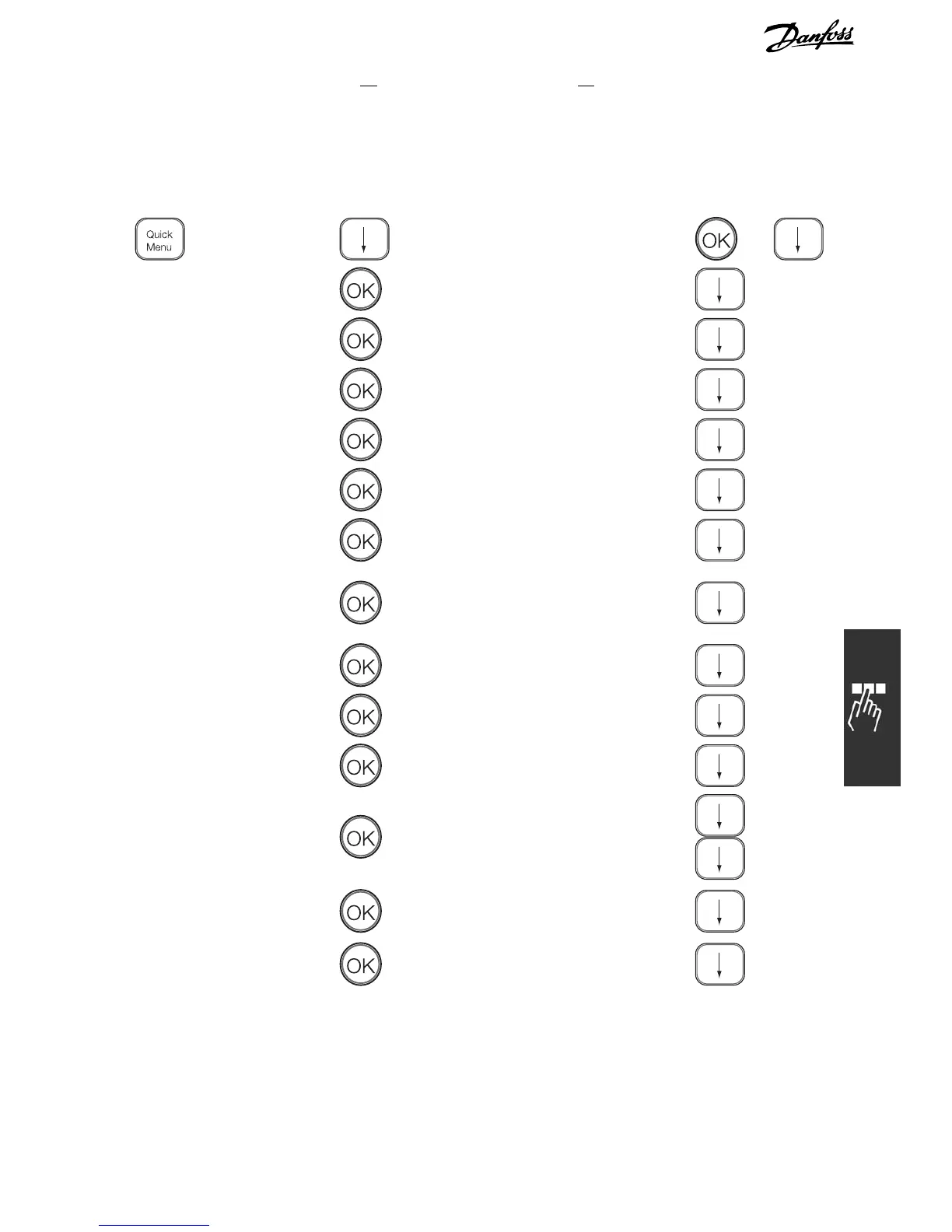

Doing the initial commissioning, the easiest way to go through is using the Quick Menu
button and follows the quick set-up procedure using G-LCP:
Press
Q2 Quick Menu
0-01 Language Set language
1-20 Motor power Set Motor name plate power
1-22 Motor voltage Set Nameplate voltage
1-23 Motor frequency Set Nameplate frequency
1-24 Motor current Set Nameplate current
1-25 Motor nominal speed Set Nameplate speed in RPM
5-12 Terminal 27 Digital
Input
If terminal default is Coast inverse it
is possible to change this setting to No
function. No connection to terminal 27
is then needed for running AMA
1-29 Automatic Motor
Adaptation
Set desired AMA function. Enable
complete AMA is recommended
3-02 Minimum reference
Set the minimum speed of the motor
shaft
3-03 Maximum reference
Set the maximum speed of the motor
shaft
3-41 Ramp1 up time
Settherampinguptimewithreference
to n omina l motor speed (set in par.
1-25)
3-43 Ramp1 down time
Set the ramping d ow n time with
reference to nominal motor speed (set
in par. 1-25)
3-13 Reference site
Set the site from where the reference
must work
