FC 300 Operating Instructions
How to Install
" Mechanical Installation
" Mechanical m ounting
FC 300 IP20 Frame sizes A1, A2 and A3 allows side-by-side installation. D ue to cooling conditions,
there m ust be a minimum of 100 mm free air passage above a nd below the FC 300.
If the IP 21 Enclosure kit (130B1122 or 130B1123)
is used there must be a clearance between
the drives of min 50 mm.
1. Drill holes in accordance with the measurements given.
2. You must provide screws suitable for the surface on which you want to mount
the FC 300. Retighten all four screws.

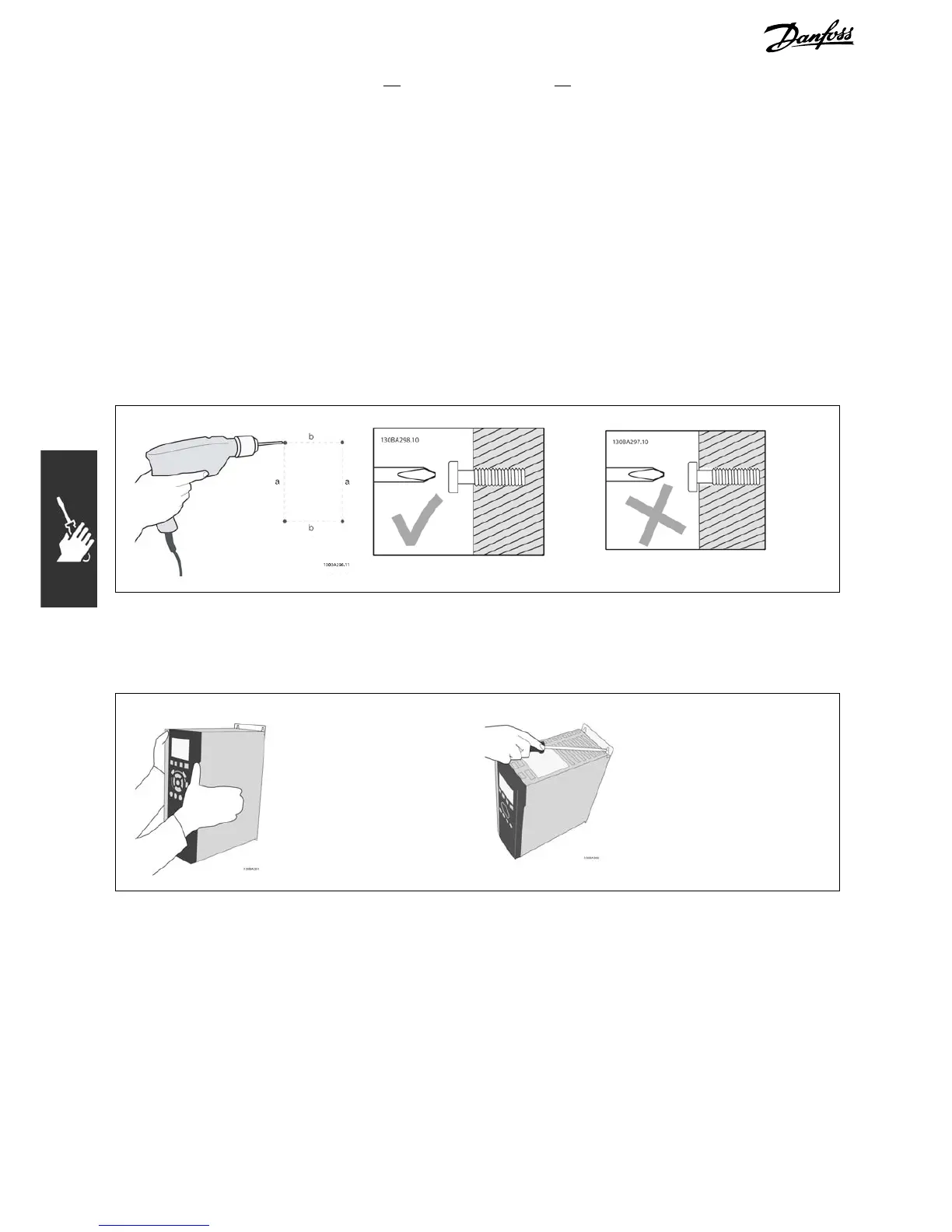

Mounting frame sizes A1, A2 and A3:
14
