Danfoss FC 300 Operating Instruction

FC 300 Operating Instructions
How to Programm e
" The FC 300 Graphical and Numerical LCP
The easie st programming of FC 300 frequency converters is performed b y the Graphical Local Control Panel
(G-LCP): It is necessary to consult F C 300 Design Guide when using Numeric Local Control Panel (N-LCP).
" HowtoProgrammeontheGraphical
Local Control Panel

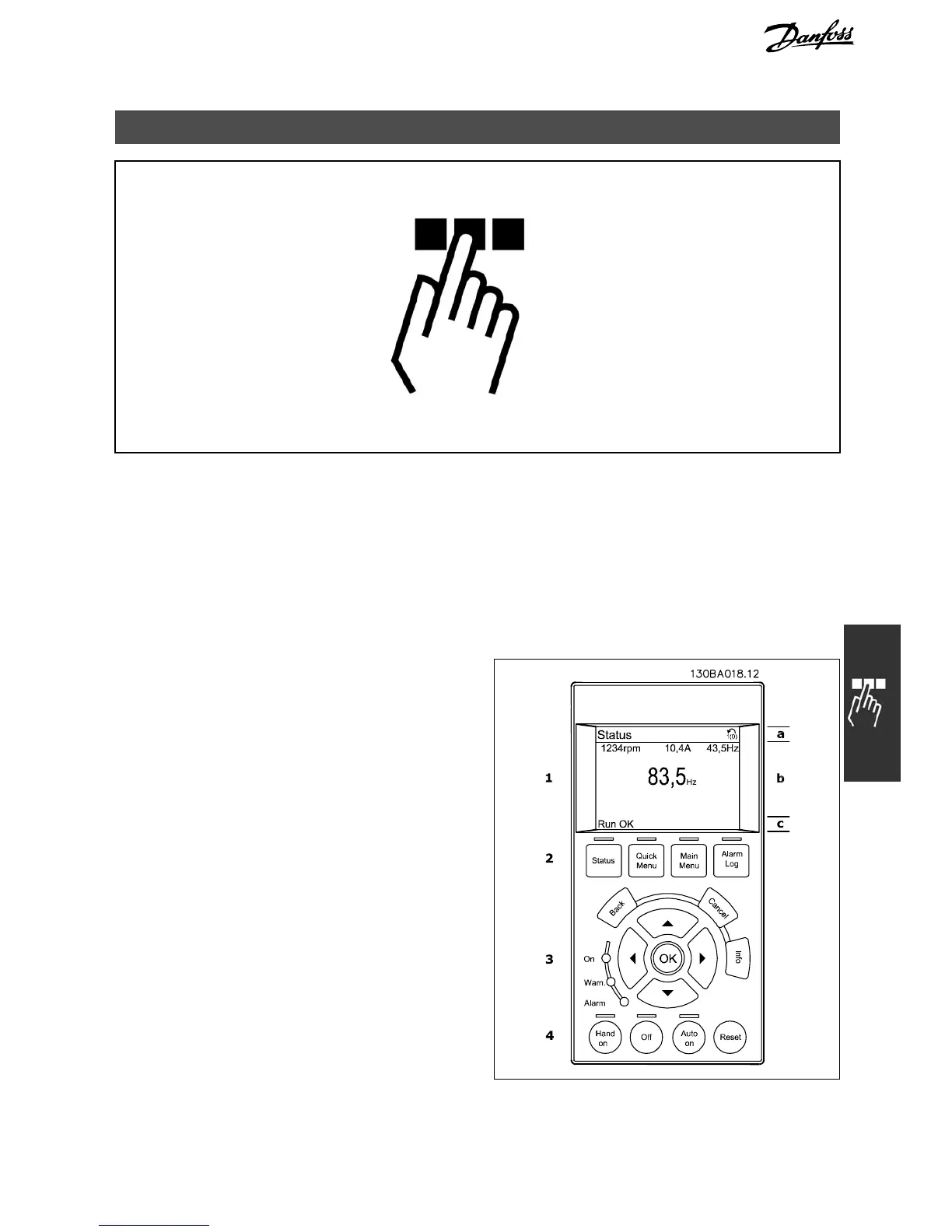

The following instructions are valid for the
graphical LCP (LCP 102):
The control panel is divided into four
functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing
parameters and switching between
display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
a. Status line:Status messages displaying
icons and graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
33
MG.33.A7.02 - VLT is a registered Danfoss trademark
