FC 300 Operating Instructions
How to Install

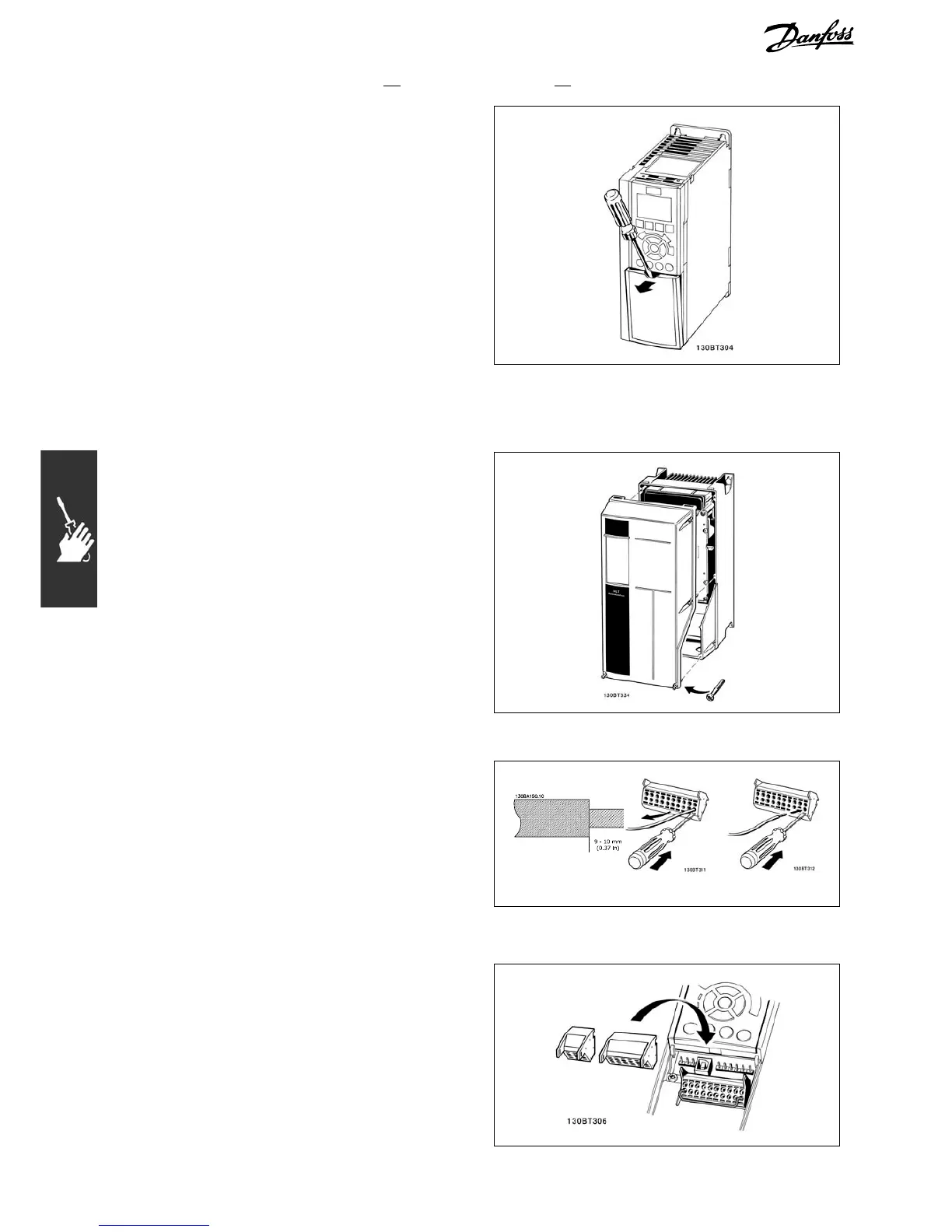

" Access to Control Terminals
All terminals to the control cables are located
underneath the terminal cover on the front of the
frequency converter. Remove the terminal cover
by means of a screwdriver (see illustration).
A1, A2 and A3 enclosures
A5, B1 and B2 enclosures
"
Electrical Installation, C ontrol Terminals
To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
2. Insert a screw driver
1)
inthesquarehole.
3. Insert the cable in the adjacent circular hole.
4. Remove the screw driver. The cable is now
mounted to the termi
nal.
To remove the cable from the term inal:
1. Insert a screw driver
1)
inthesquarehole.
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
1.
2. 3.
24
MG.33.A7.02 - VLT is a registered Danfoss trademark
