Danfoss FC 300 Operating Instruction

FC 300 Operating Instructions
How to Install
" Electrical Insta llation, Control Cables

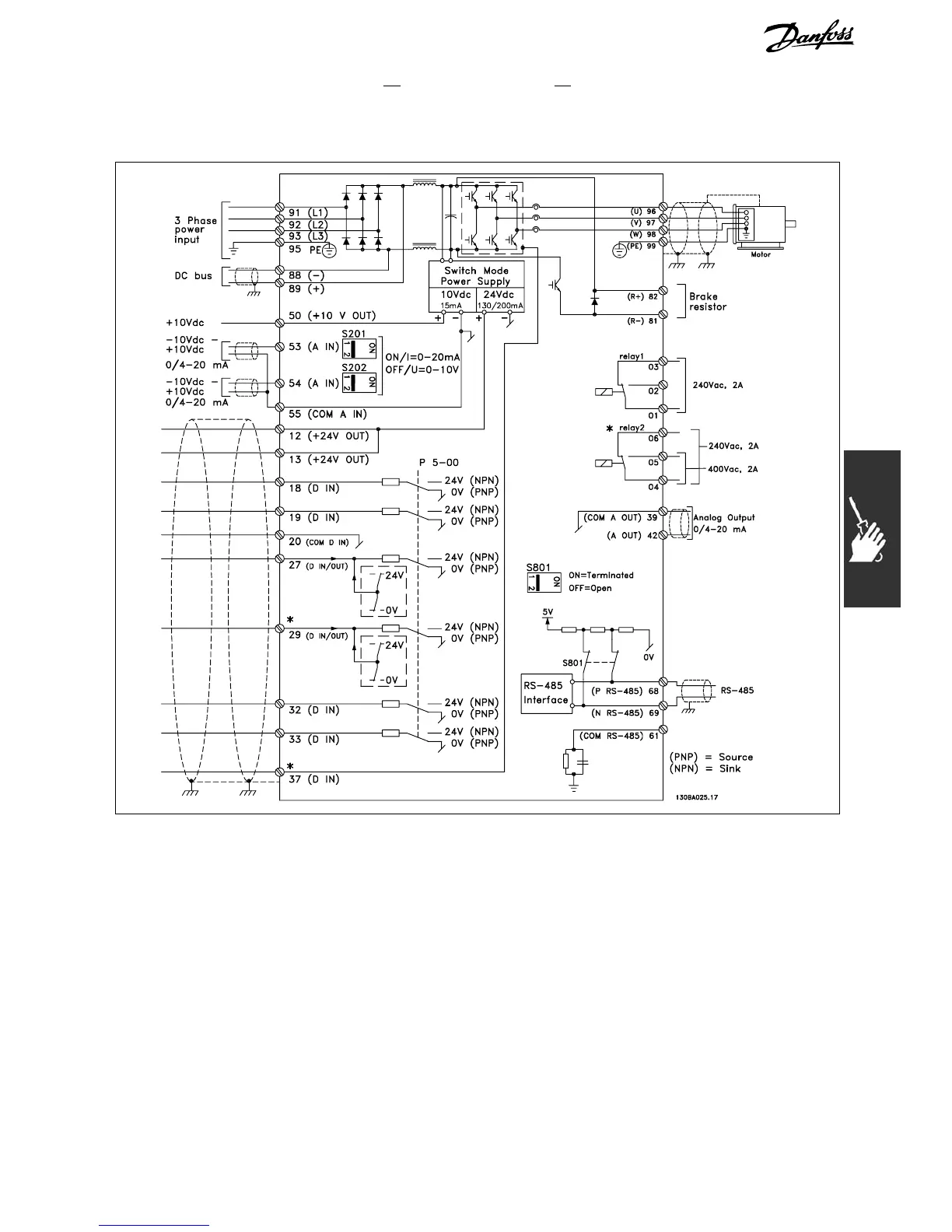

Diagram showing a
ll electrical termina ls without options.
Terminal 37 is the input to be used for Safe Stop. For instructions on Safe Stop installation please refer
to the section Safe Stop Installation in the FC 300 Design Guide.
*Terminal37isnot
included in FC 301 (Except FC 301 A1, which includes Safe Stop).
Terminal 29, Relay 2, is not included in FC 301.
Very long control cables and analog signals may in rare cases and depending on installation result
in 50/60 Hz earth loops due to noise from mains supply cables.
If this occurs, you may have to break the screen or insert a 100 n F capacitor between screen a n d chassis.
The digital and analog in- and outputs must be connected separately to the FC 300 common
inputs (term
inal 20, 55, 39) to avoid ground curre nt s from both groups to affect other groups. For
example, switching on the digital input may disturb the analog input signal.
27
MG.33.A7.02 - VLT is a registered Danfoss trademark
