Danfoss FC 300 Operating Instruction

FC 300 Operating Instructions
How to Install

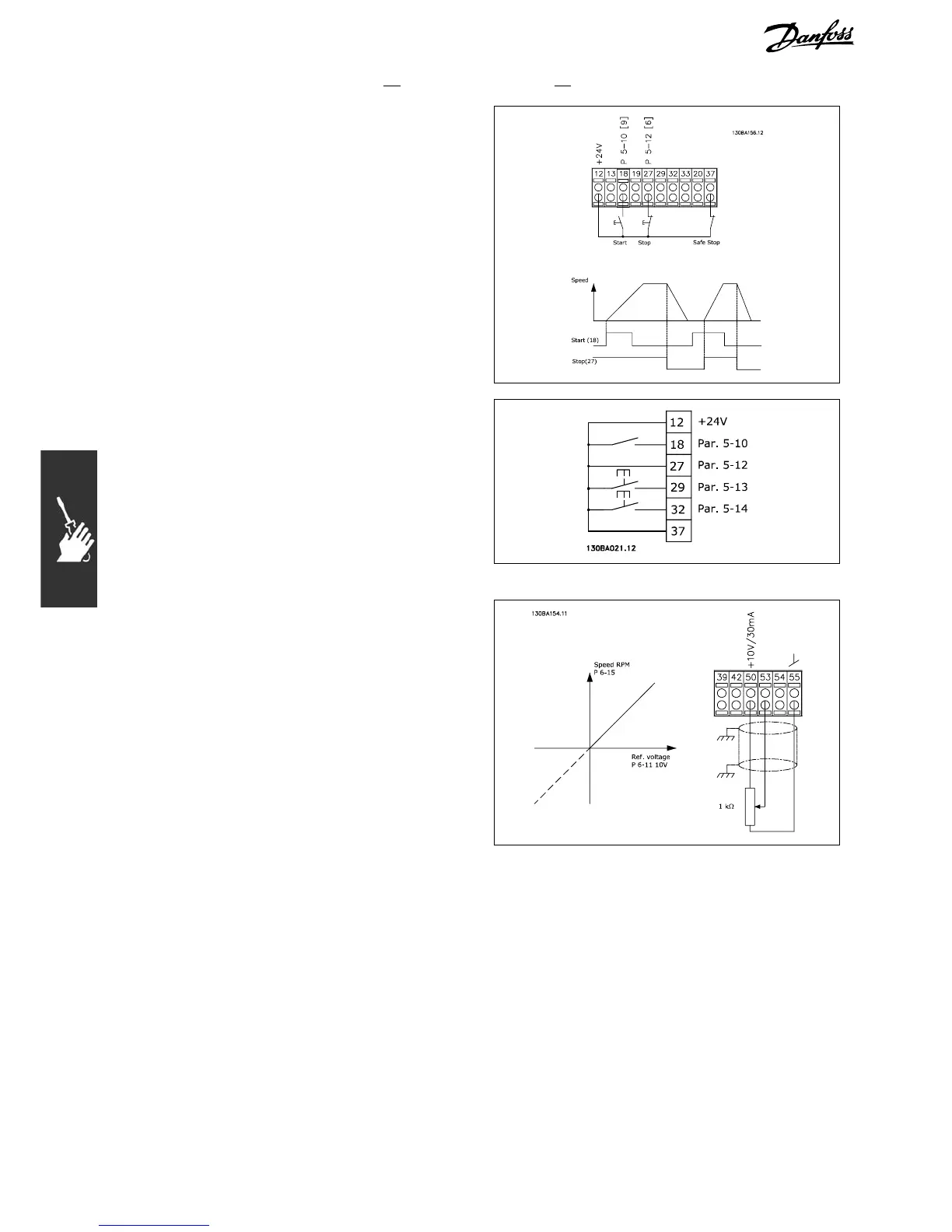

" Pulse Start/Stop
Termin a l 18 = Par. 5-10 [9] Latched start
Terminal 27= Par. 5-1 2 [6] Stop inverse
Terminal37=Safestop(FC302andFC301A1only!)
" Speed Up/Down
Terminals 29/ 32 = Speed up/dow n.
Ter mina l 1 8 = Pa r. 5-10 [9] Start(default)
Terminal 27 = Par. 5-12 [19] Freeze reference
Terminal 29 = Par. 5-13 [ 21] Speed up
Terminal 32 = Par. 5-14 [22] Speed down
Note: Terminal 29 only in FC 302.
" Potentiometer Reference
Voltage reference via a potentiometer
.
Reference Resource 1 = [1] Analogue
input 5 3 (default)
Terminal 53, Low Voltage = 0 Volt
Terminal 53, High Voltage = 10 Volt
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
26
MG.33.A7.02 - VLT is a registered Danfoss trademark
