FC 300 Operating Instructions
How to Install

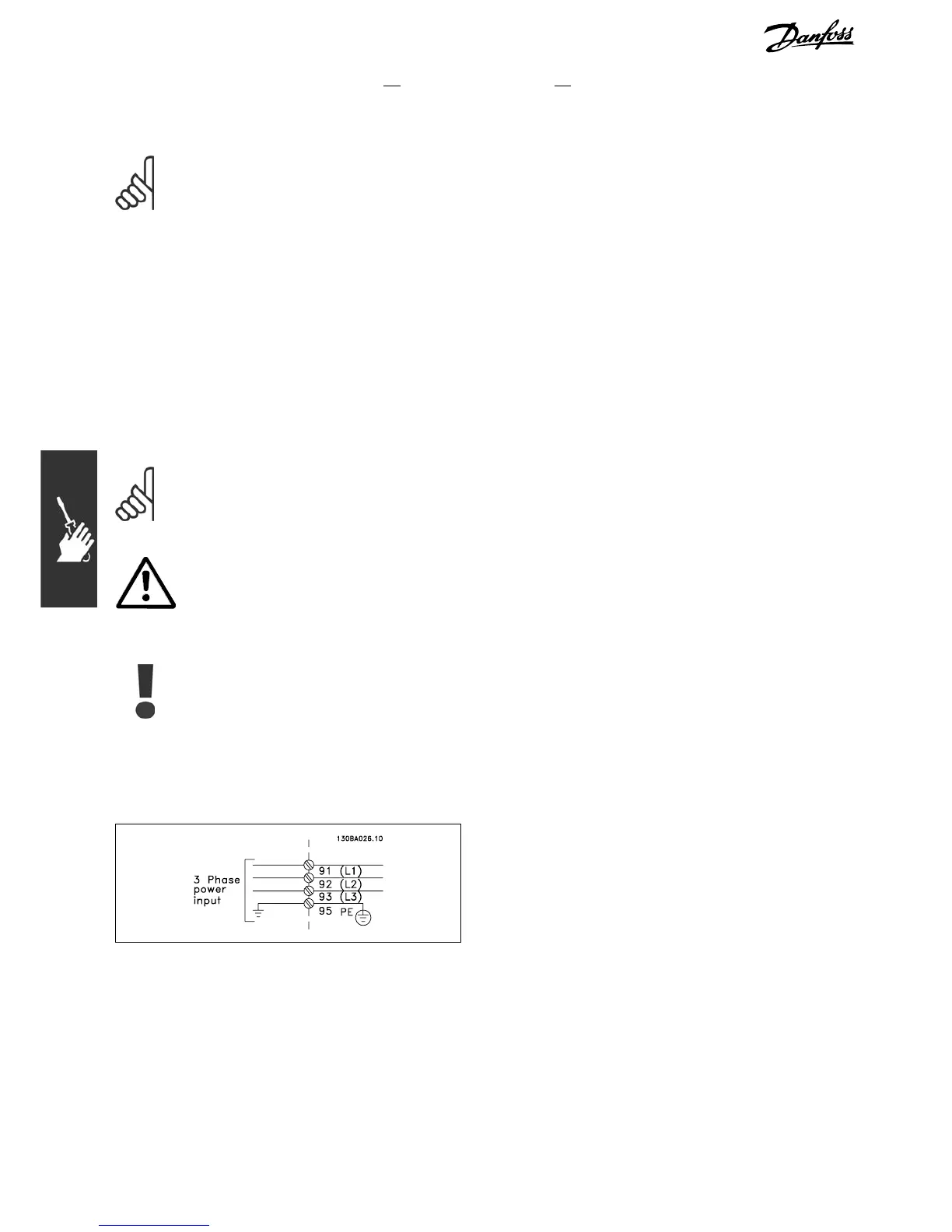

" Connection to Mains and Earthing
NB!:
The plug connector for power can be
removed on FC 302 up to 7.5 kW.
1. Fit the two screws in the de-coupling plate,
slide it into place and tighten the screws.
2. Make sure the FC 300 is properly earthed.
Connect to earth connection (terminal 95).
Use screw from the accessory bag.
3. Place plug connector 91(L1), 92(L2), 93(L3)
from the accessory bag onto the terminals
labelled MAINS at the bottom of FC 300.
4. Attach mains wires to the mains plug connector.
5. Relive the cable with the supporting
enclosed brackets.
NB!:
Check that mains voltage corresponds
to the mains voltage of the FC
300 name plate.
IT Mains
Do not connect 400 V frequency
converters with RFI-filters to mai ns
supplies with a voltage between phase
and earth of more than 440 V.
The earth connection cable c ross
section must be at least 10 mm
2
or
2 x rated mains wires terminated
separately according to EN 50178.
The mains connection is fitted to the main
switch if this is included.
18
MG.33.A7.02 - VLT is a registered Danfoss trademark
