L2L1 L3
U
V
W
e30bj817.11
2
3
1
4
5
6
7
8
9
11
13
10 10
14
16
12
R- R+
15

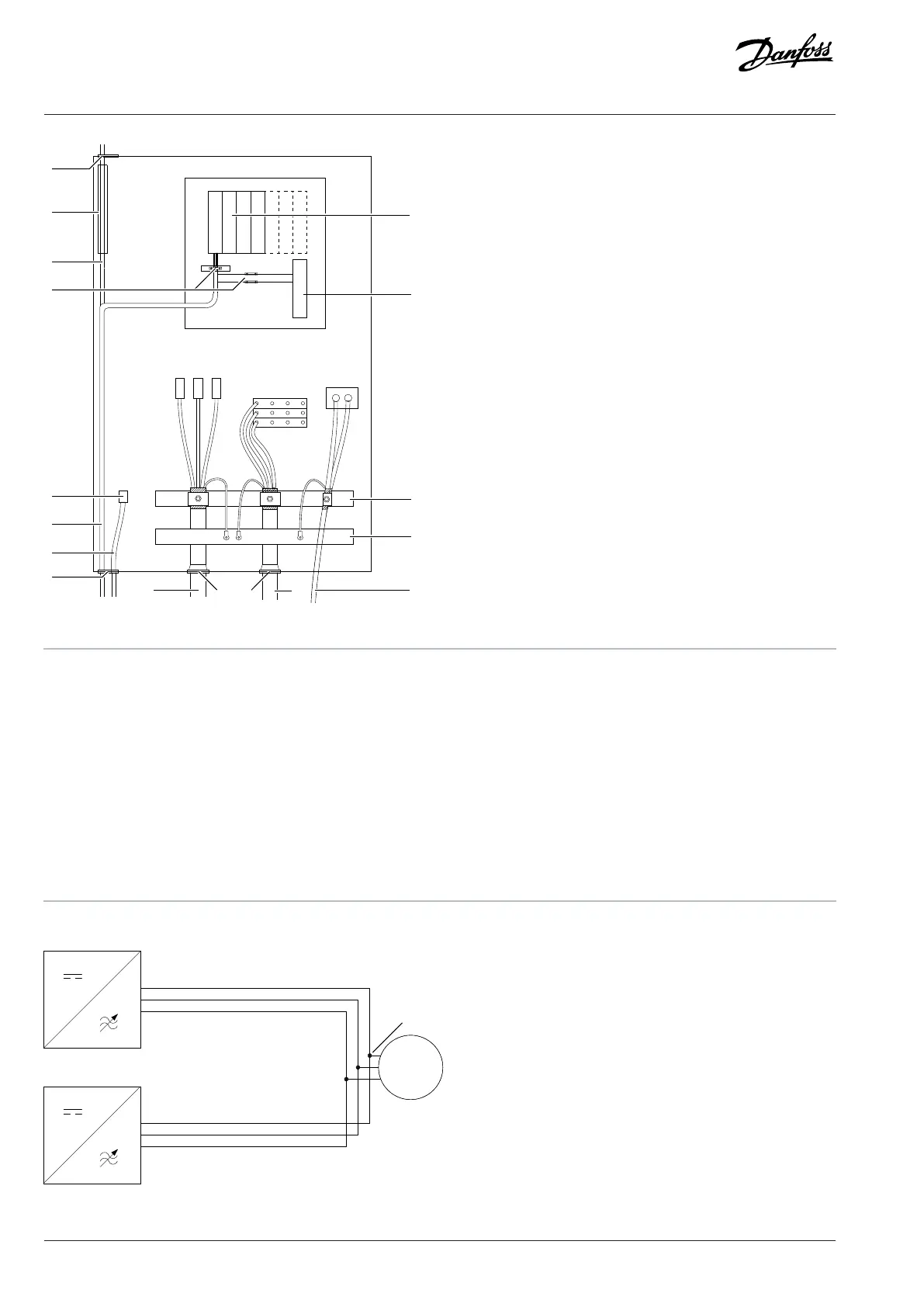

Figure 10: Cabling Principle
1 Control cable grommet 2 Cable installation tubes, 2 pcs, diameter 32 mm (1.3 in)
3 Control cables from the top 4 Strain relief and cable grounding
5 Auxiliary power terminals 6 Control cables from the bottom
7 Auxiliary power cable 8 Control cable grommet
9 Mains cable 10 Grommets
11 Control board and option boards 12 Terminal blocks
13 Strain relief and 360° grounding 14 PE busbar
15 Motor cable 16 Brake cable
M
e30bg896.11
1
1
2
Figure 11: Recommended Installation
