Danfoss iC7 - Installing the Back-Channel Cooling Option

Installation Guide | iC7-Automation Air-cooled Enclosed Drives Mechanical Installation
1
2
2
e30bl779.10

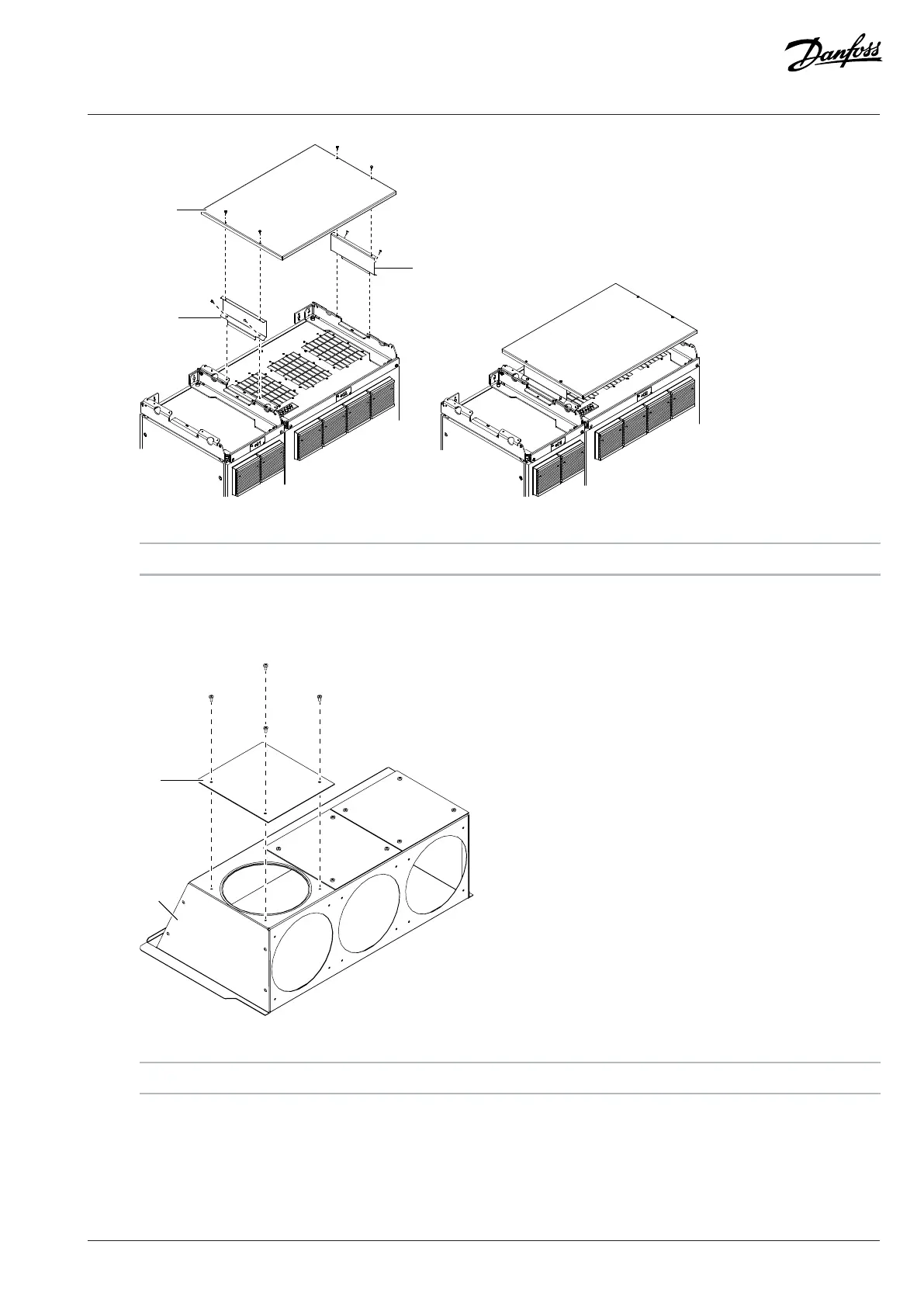

Figure 6: Installing the IP21 Top Cover
1 Top cover 2 Top cover brackets
2.5 Installing the Back-channel Cooling Option
1. Attach the cover plate of the top hood with 4 screws.
e30bk080.10
1
2
Figure 7: Installing the Back-channel Cooling Option Cover Plate
1 The cover plate 2 The top hood
2. Place the top hood on top of the cabinet.
3. Place the brackets so that they press the sides of the top hood down.
a. Attach each bracket with 4 screws.
Danfoss Drives Oy © 2024.09 AN484843731544en-000101 / 172K4825A | 9
