Installation Guide | iC7-Automation Air-cooled Enclosed Drives Overview
1 Overview
1.1 Safety and Installation Awareness
Before starting installation, read all safety guidelines and precautions related to installing the products. For more information, see the
product-specific design guide. Supplemental information and other guides can be downloaded from
https://www.danfoss.com/en/
service-and-support/documentation/.
1.2 Checking the Delivery and the Contents
Make sure that the items supplied and the information on the product label correspond to the order confirmation.
P/N: 137L9057
S/N :DC000C7J - 0524 - DC
POWER :200KW(400V)/300HP(460V)
IN: 3~380-500VAC 50/60Hz, 325A (400VAC) / 303A (480VAC)
OUT :3x0-Vin 0-599Hz, 394A (400VAC) / 372A (460VAC)
+BAMT+CAR0+CBR0+DAAU+EGXX+GACO+IFCS+IHAT+IICD+MAU2
DK-6430 Nordborg
www.danfoss.com
MADE IN FINLAND
Danfoss A/S
Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB
ENCL :IP21
Air cooled
Protection class 1
SCCR: 65kA
AE10 + IE10
Tamb :40°C/104°F
iC7-Automation
M/C :IC7-60EA3H05-385AE21F3
1
2
3
4
5
6
7
8
9
10
e30bl631.10

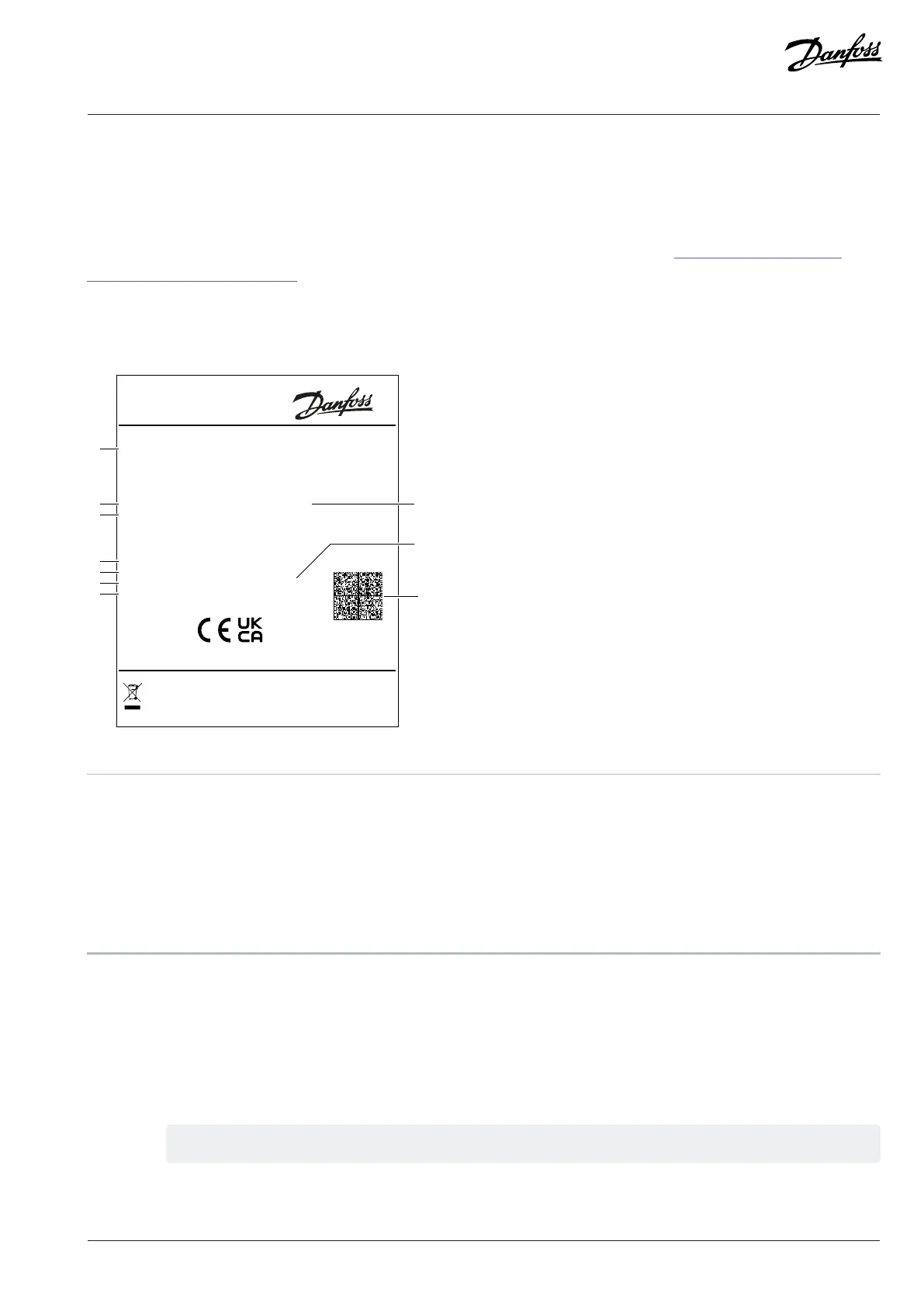

Figure 1: Product Label for iC7 Series Air-cooled Enclosed Drives
1 Model code of the product 2 Product number
3 Power, input, and output ratings 4 Protection rating
5 Temperature rating for ambient air 6 Protective class
7 Short-circuit current rating 8 Serial number
9 Frame designation 10 2D code accessible with a Datamatrix ECC 200 compatible
barcode reader
1.3 Lifting the Enclosed Drive
The AC drive is delivered on a wooden pallet. A delivery containing 1 cabinet is delivered horizontally, but a delivery containing many
cabinets is delivered vertically.
1. If the drive is delivered horizontally, lift it to an upright position.
a. Put the lifting hooks in the 2 front lifting loops on the top of the cabinet.
The minimum lifting angle is 60°.
b. Lift the drive to an upright position.
Danfoss Drives Oy © 2024.09 AN484843731544en-000101 / 172K4825A | 5
