3.4 Installing the Brake Cables, FE9, FE10
1. Strip the brake cables.
2. To make a 360° connection, expose the shield of the cables.
3. Peel the cable shield and attach the end to the PE busbar.
4. Use cable clamps to fix the cables.
5. Find the brake terminals in the system module inside the cabinet. Connect the brake cables to the brake terminals.
Use M10 bolts.
Use the tightening torque 19 Nm (168 in-lb).

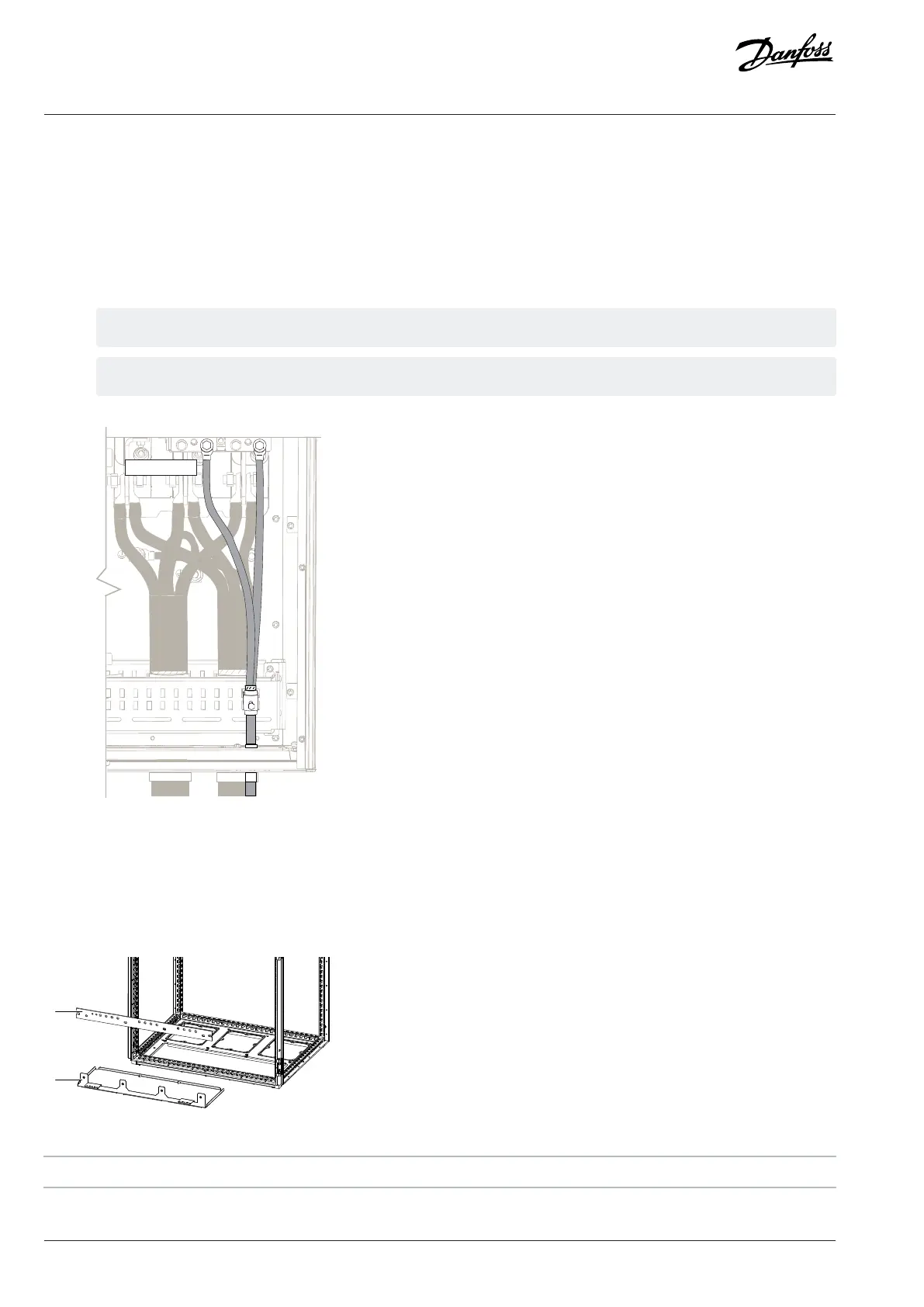

Figure 15: Installing the Brake Cables in the Enclosed Drive, FE9, FE10
3.5 Power Cabling Floor Components, UL
The UL variant of the enclosed drive includes a sealed bottom plate for free cutting of the cable entry holes.
Some grounding wires are connected to the PE busbar. Reconnect these grounding wires after installation.
Figure 16: UL Floor Components
1 PE busbar 2 Plate for cutting of the cable entry holes
16 | Danfoss Drives Oy © 2024.09 AN484843731544en-000101 / 172K4825A
Installation Guide | iC7-Automation Air-cooled Enclosed Drives Electrical Installation
