Danfoss iC7 - Installing the Power Cables through the Top (+KCIT or +KDOT)

1 PE busbar 2 Grommet holder
3 Cable shield 4 Cable clamp
5 Grommet 6 Knitted metal mesh tube
7 Cable tie A IP21
B IP54 C EMC 360° (IP54 and knitted metal mesh tube)
8. Connect the mains cables to the terminals L1, L2, and L3, and the motor cables to the terminals U, V, and W.
See the correct tightening torques in 6.1 Tightening Torques.
9. Connect the grounding conductors to the PE busbar.
1
2
3
4
e30bj514.11

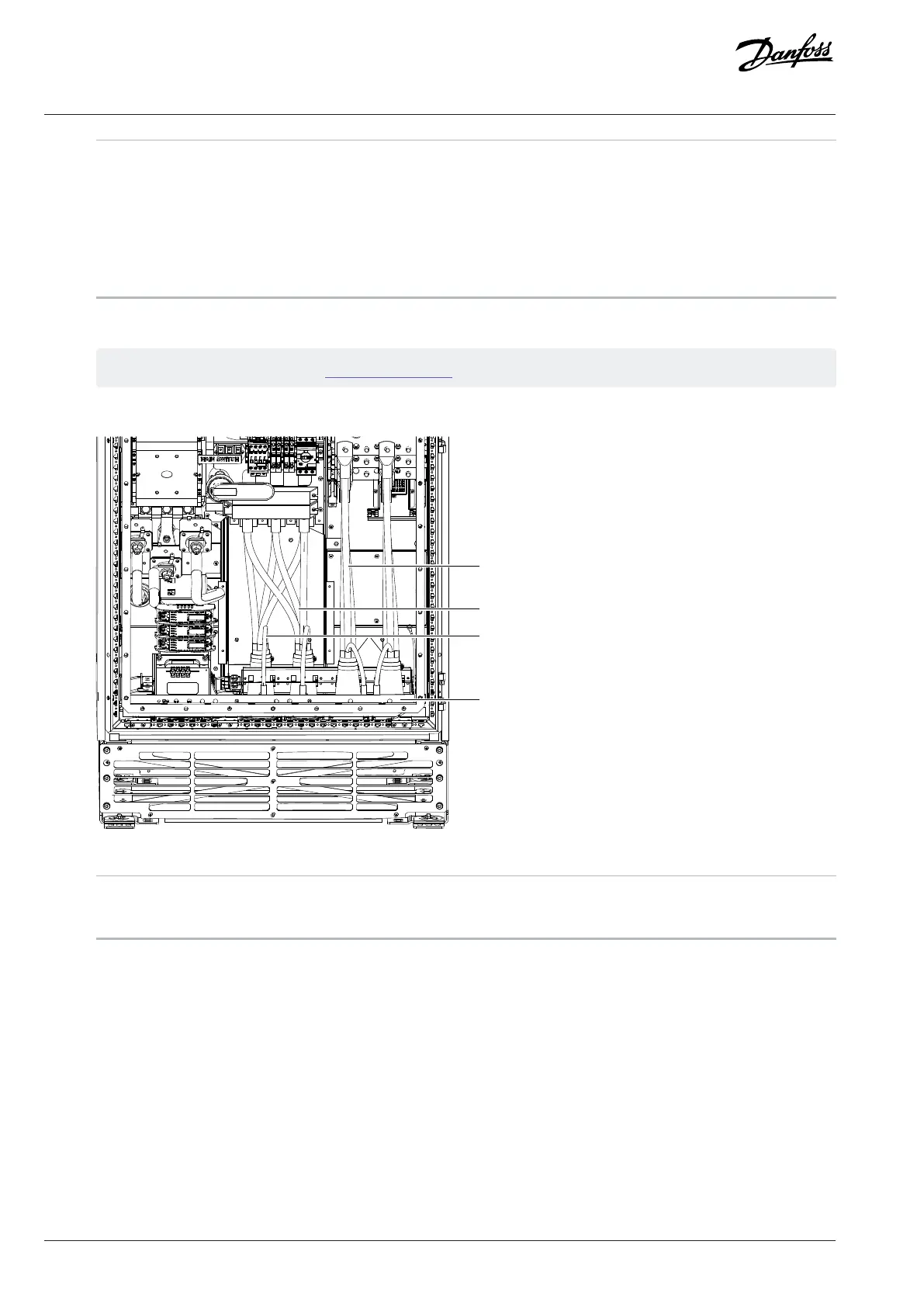

Figure 13: Cabling of the Enclosed Drive
1 Motor cables 2 Mains cables
3 Grounding conductor 4 PE busbar
10. Release and lower the service table.
3.3.2 Installing the Power Cables through the Top (+KCIT or +KDOT)
Use these instructions with the options Top-entry +KCIT and +KDOT.
