Installation Guide | iC7-Automation Air-cooled Enclosed Drives Control and Option Installation
1
2
3
2
5
4
e30bj922.10

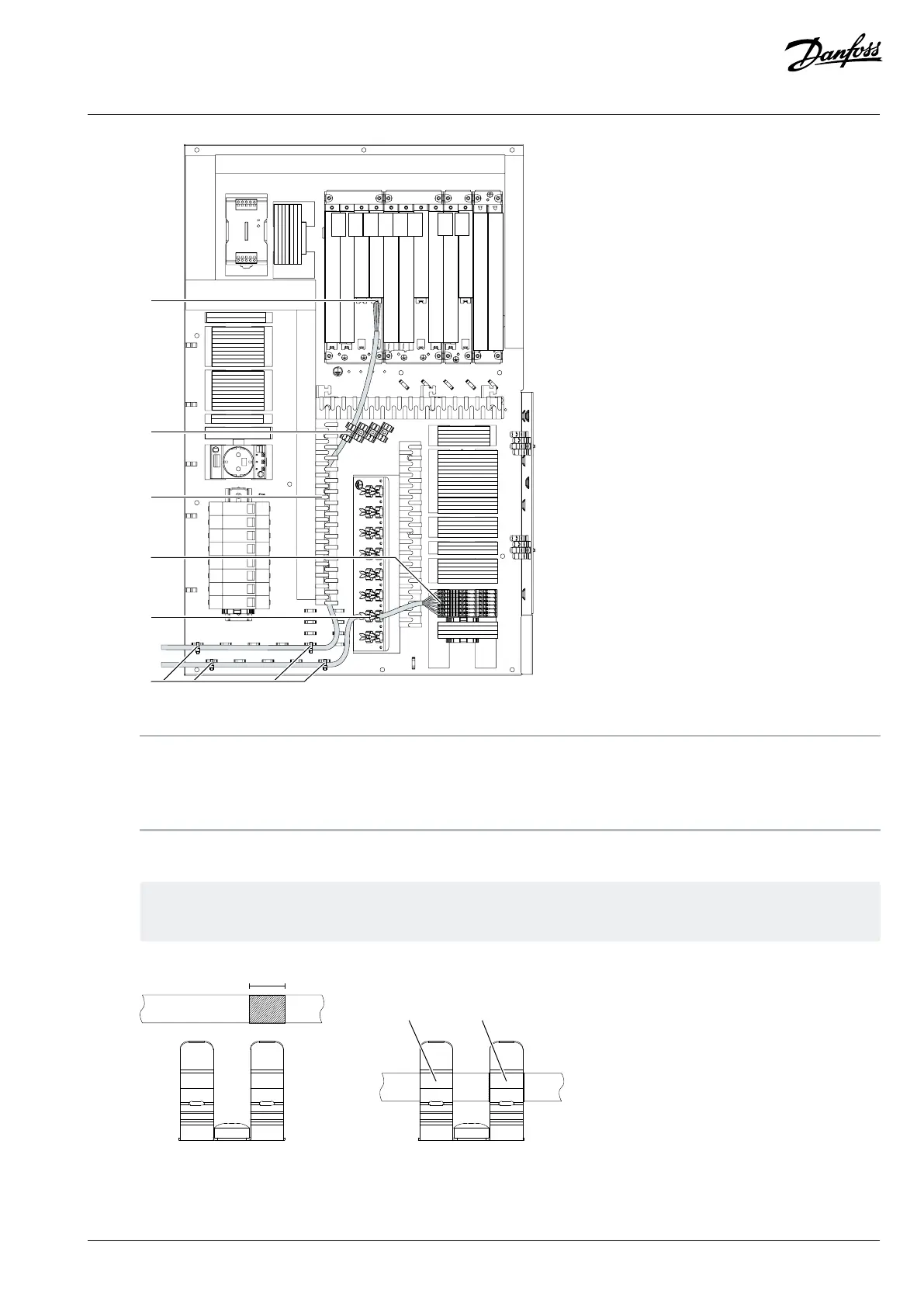

Figure 25: Example of Installing the Control Cables on Terminals Blocks
1 Option board 2 Cable clamp
3 Cable duct 4 Terminal block
5 Guidance for the control cable
2. Strip the control cables. Attach the control cables to the cable clamps on the control compartment.
The lower part of the cable clamp fixes the cable to the plate and provides strain relief. The upper part provides ~360°
grounding for the cable shield.
1
2 3
e30bj147.11
Figure 26: Stripping the Cable and Using the Grounding Plates
