5.1.8. Mains connection for B1, B2 and B3

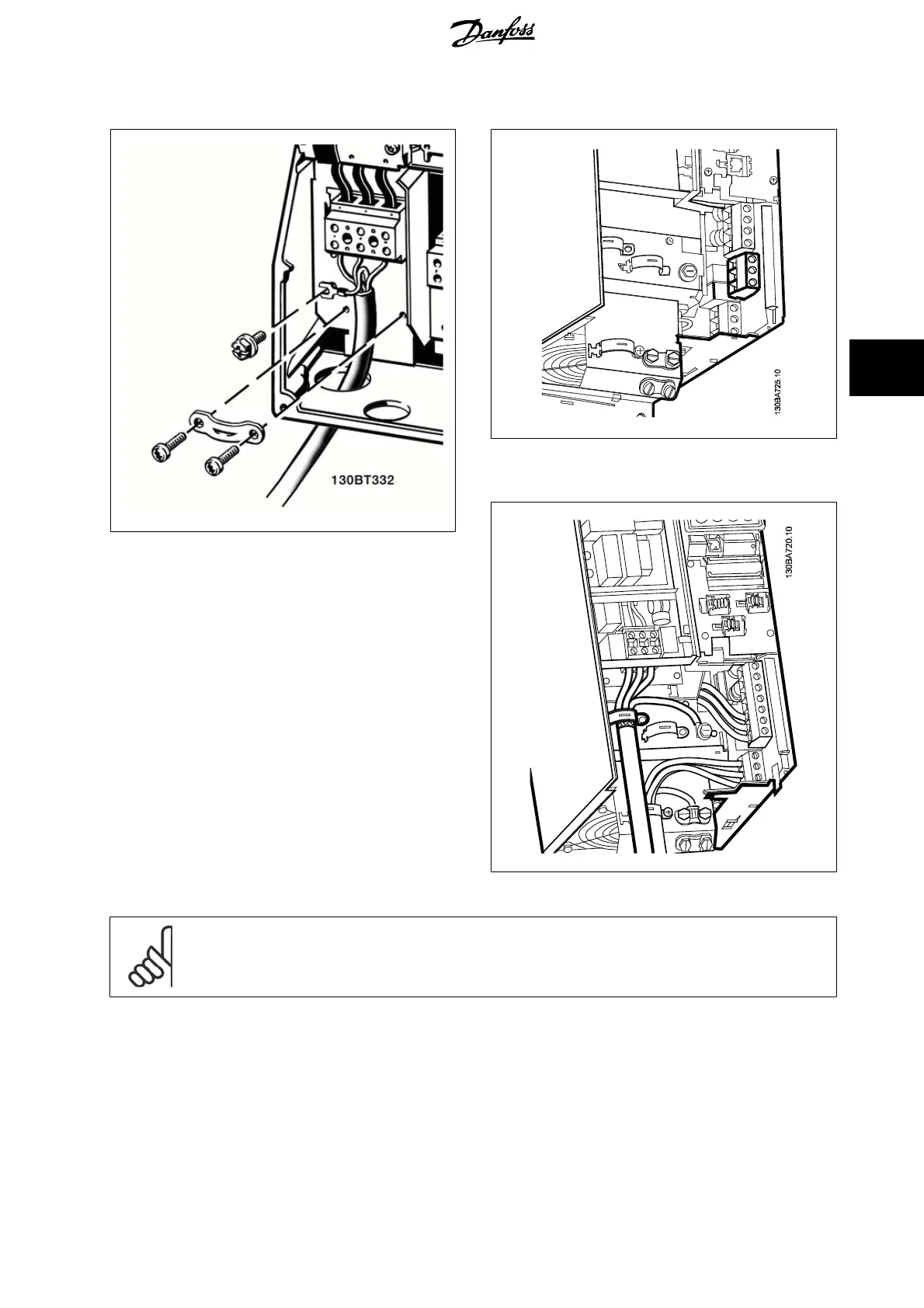

Illustration 5.12: How to connect to mains and earthing for B1 and B2

Illustration 5.13: How to connect to mains and earthing for B3 without

RFI.

Illustration 5.14: How to connect to mains and earthing for B3 with RFI.

NB!

For correct cable dimensions please see the section General Specifications at the back of this manual.
