Danfoss VLT AQUA Drive FC 202

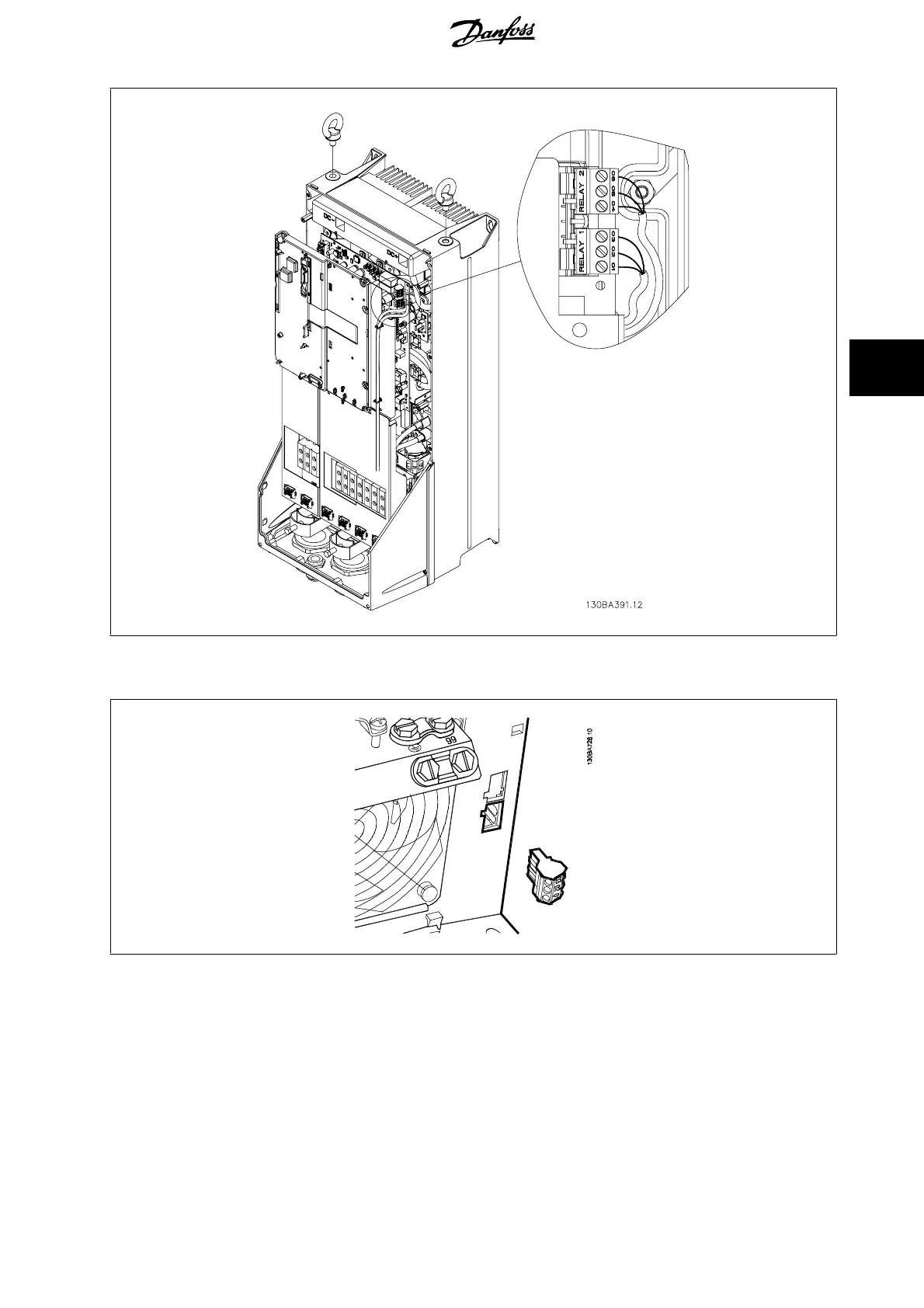

Illustration 5.37: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the Accessory Bag) fitted.
Illustration 5.38: Terminals for relay connections for B3. Only one knock-out is fitted from the factory.
VLT
®
AQUA Drive
Operating Instructions
5. Electrical installation
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark 37
