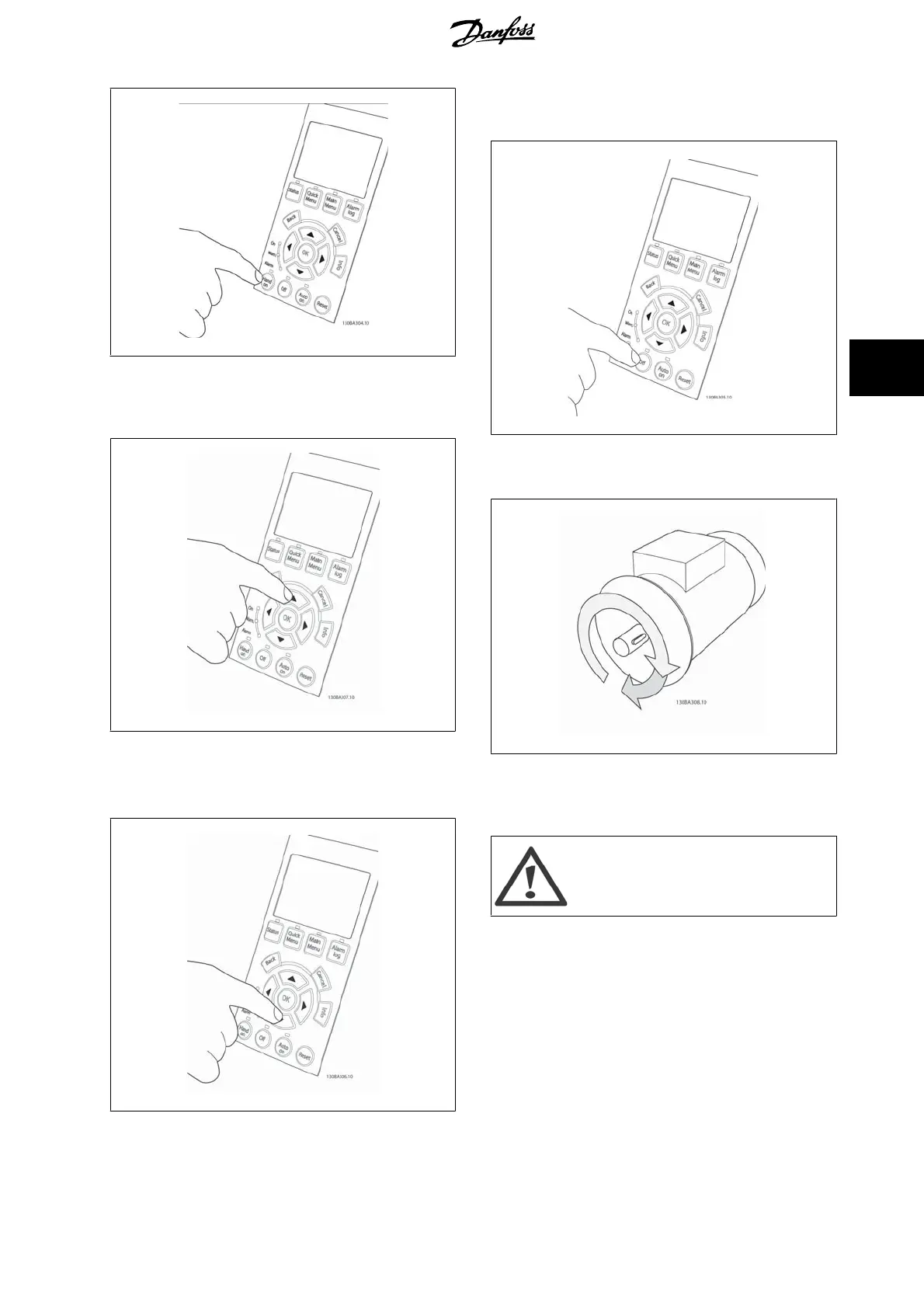

Illustration 5.50:
Step 5: By pressing the [Hand on] button, the LED above the button
should be lit and the motor may rotate.
Illustration 5.51:
Step 6: The speed of the motor can be seen in the LCP. It can be
adjusted by pushing the up
▲
and down
▼
arrow buttons.
Illustration 5.52:
Step 7: To move the cursor, use the left ◄ and right ► arrow buttons.
This enables changing the speed in larger increments.
Illustration 5.53:
Step 8: Press the [Off] button to stop the motor again.
Illustration 5.54:
Step 9: Change two motor wires if the desired rotation of direction is
not achieved.
Remove mains power from the frequency converter
before changing motor wires.
