8.1.8. Main Menu Mode
Both the GLCP and NLCP provide access to the main menu mode. Select
the Main Menu mode by pressing the [Main Menu] key. Illustration 6.2
shows the resulting read-out, which appears on the display of the GLCP.
Lines 2 through 5 on the display show a list of parameter groups which
can be chosen by toggling the up and down buttons.
1

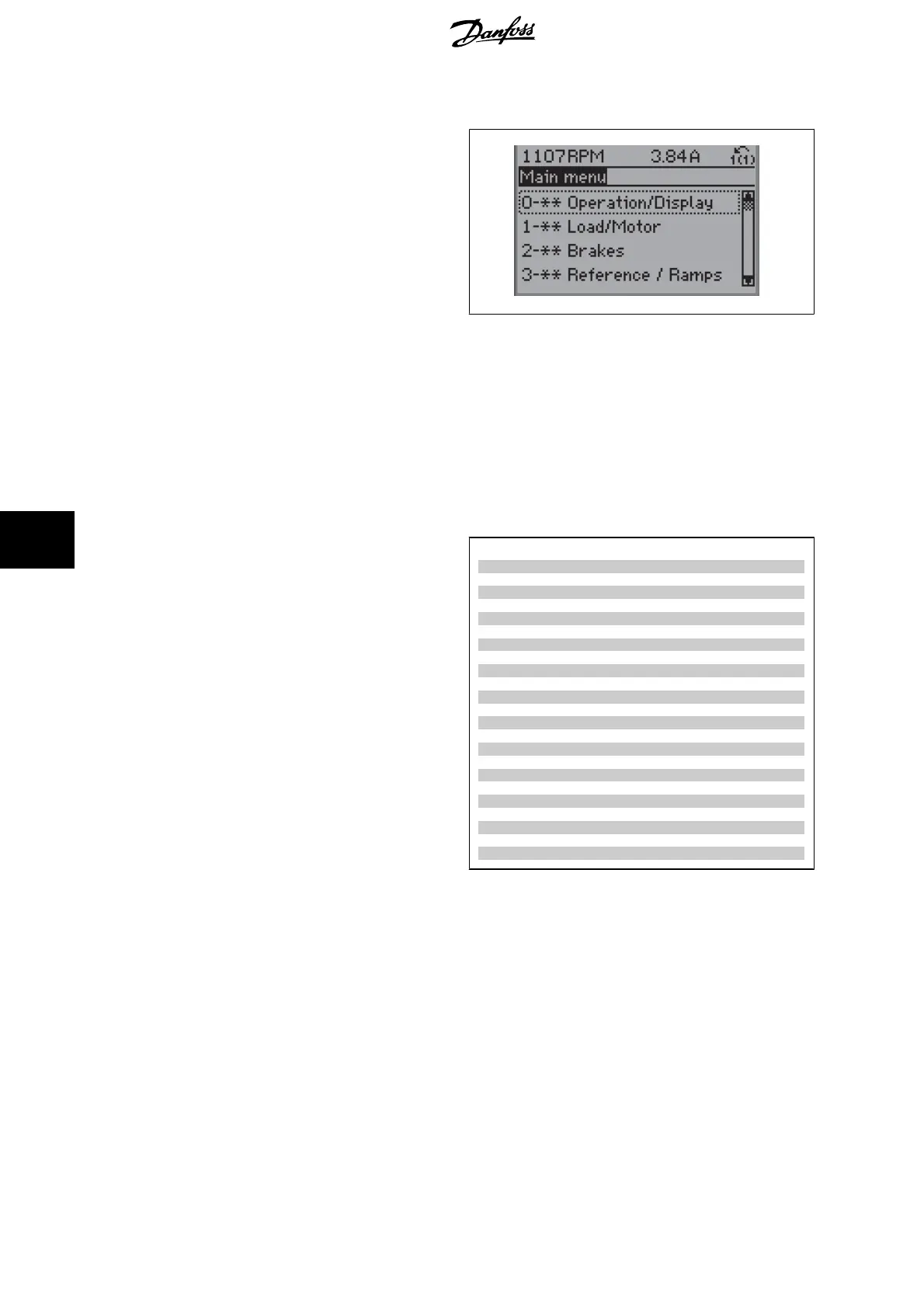

Illustration 8.9: Display example.
Each parameter has a name and number which remain the same regardless of the programming mode. In the Main Menu mode, the parameters are
divided into groups. The first digit of the parameter number (from the left) indicates the parameter group number.
All parameters can be changed in the Main Menu. The configuration of the unit (par. 1-00
Configuration Mode
) will determine other parameters available
for programming. For example, selecting Closed Loop enables additional parameters related to closed loop operation. Option cards added to the unit
enable additional parameters associated with the option device.
8.1.9. Parameter Selection
In the Main Menu mode, the parameters are divided into groups. Select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
8 Comm. and Options
9 Profibus
10 CAN Fieldbus
11 LonWorks
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed Loop
21 Ext. Closed Loop
22 Application Functions
23 Time-based Functions
24 Fire Mode
25 Cascade Controller
26 Analog I/O Option MCB 109
Table 8.3: Parameter groups.
8. How to programme the frequency converter
VLT
®
AQUA Drive
Operating Instructions
68
MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
8
