1.1.6. Quick Menu Mode
The GLCP provides access to all parameters listed under the Quick Menus. The NLCP only provides
access to the Quick Setup parameters. To set parameters using the [Quick Menu] button:
Pressing [Quick Menu] the list indicates the different areas contained in the Quick menu.
Efficient Parameter Set-up for Water Ap-
plications
The parameters can easily be set up for the vast majority of the water and wastewater applications
only by using the [Quick Menu].
The optimum way to set parameters through the [Quick Menu] is by following the
below steps:
1. Press [Quick Setup] for selecting basic motor settings, ramp times, etc.
2. Press [Function Setups] for setting up the required functionality of the frequency con-
verter - if not already covered by the settings in [Quick Setup].
3. Choose between
General Settings
,
Open Loop Settings
and
Closed Loop Settings.
It is recommended to do the set-up in the order listed.
Select
My Personal Menu
to display only the parameters, which have been pre-selected and pro-
grammed as personal parameters. For example, a pump or equipment OEM may have pre-
programmed these to be in My Personal Menu during factory commissioning to make on site
commissioning / fine tuning simpler.. These parameters are selected in parameter 0-25
My Per-
sonal Menu
. Up to 20 different parameters can be defined in this menu.

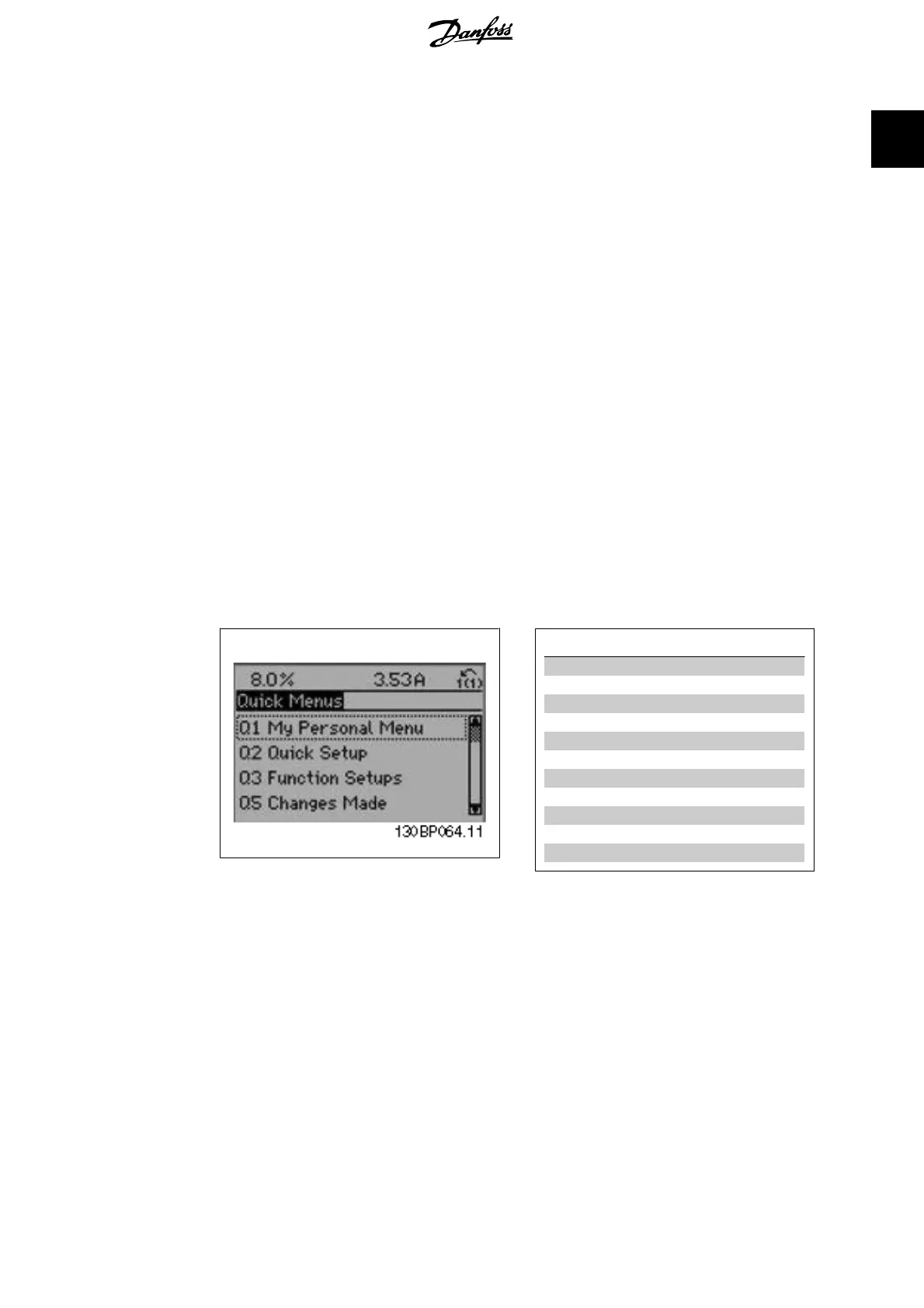

Illustration 1.1: Quick menu view.
Par. Designation [Units]
0-01 Language
1-20 Motor Power [kW]
1-22 Motor Voltage [V]
1-23 Motor Frequency [Hz]
1-24 Motor Current [A]
1-25 Motor Nominal Speed [RPM]
3-41 Ramp 1 Ramp up Time [s]
3-42 Ramp 1 Ramp down Time [s]
4-11 Motor Speed Low Limit [RPM]
4-13 Motor Speed Low High [RPM]
1-29 Automatic Motor Adaption [AMA]
Table 1.1: Quick Setup parameters
*The display showing depends on choices made in parameter 0-02 and 0-03. The default setting
of parameters 0-02 and 0-03 depends on which region of the world the frequency converter is
supplied to but can be re-programmed as required.
If
No Operation
is selected in terminal 27 no connection to +24 V on terminal 27 is necessary to
enable start.
If
Coast Inverse
(factory default value) is selected in Terminal 27, a connection to +24V is nec-
essary to enable start.
Select
Changes made
to get information about:
• the last 10 changes. Use the up/down navigation keys to scroll between the last 10
changed parameters.
• the changes made since default setting.
VLT
®
AQUA Drive Programming Guide 1. How to Programme
MG.20.O2.02 - VLT
®
is a registered Danfoss trademark
11
1
