Quick Setup is used to set up the frequency converter using only the most essential parameters.
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys
[Back]
for stepping backwards
Arrow [ ] [ ]▲▼
keys are used for manoeuvring between pa-
rameter groups, parameters and within pa-
rameters
[OK]
is used for choosing a parameter marked by
the cursor and for enabling the change of a
parameter.
130BP079.10

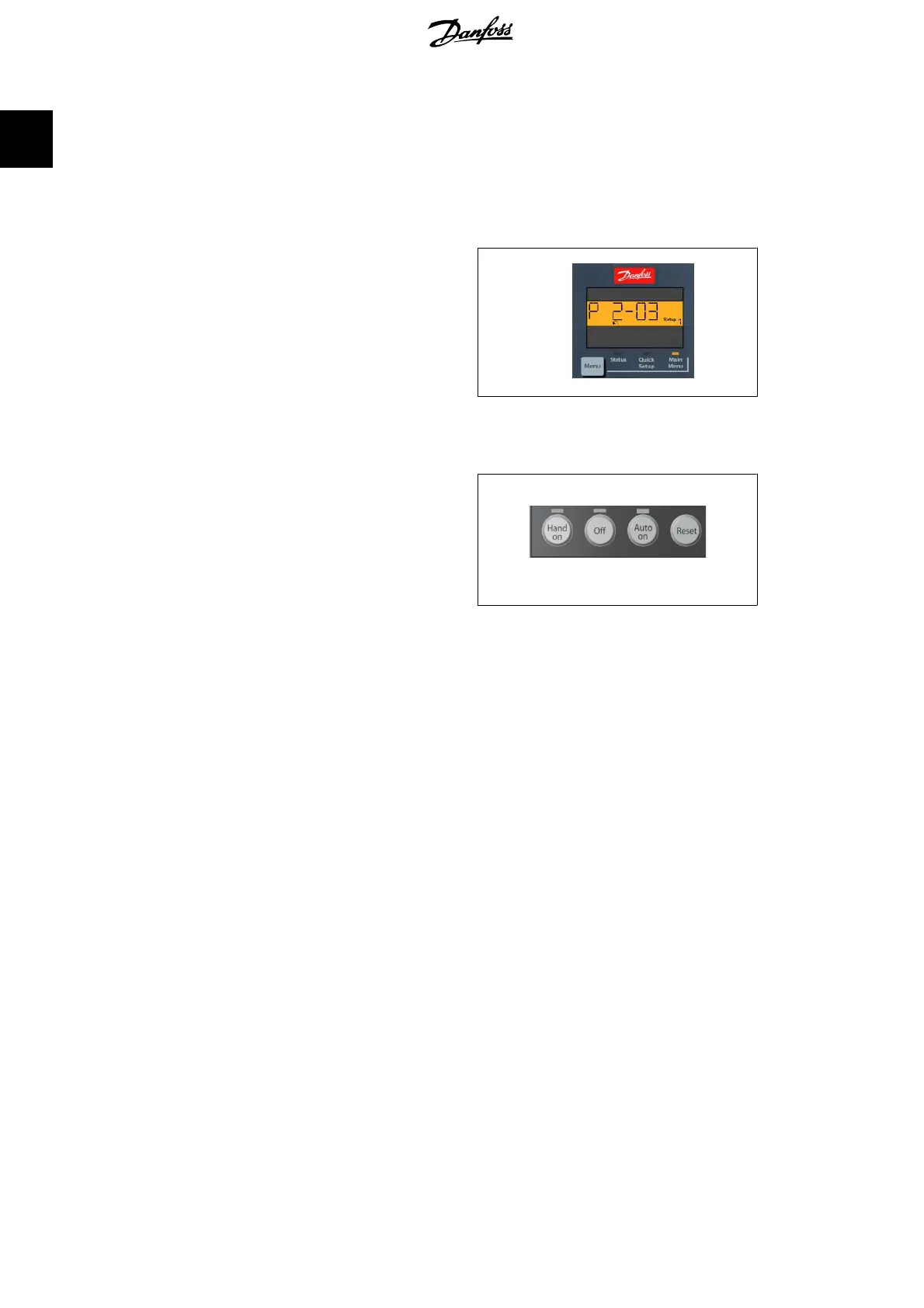

Illustration 1.17: Display example
Operation Keys
Keys for local control are found at the bottom
of the control panel.
130BP046.10
Illustration 1.18: Operation keys of the numerical
CP (NLCP)
[Hand on]
enables control of the frequency converter via the LCP. [Hand on] also starts the motor and it is
now possible to enter the motor speed data by means of the arrow keys. The key can be
Ena-
bled
[1] or
Disabled
[0] via par. 0-40
[Hand on] Key on LCP
.
External stop signals activated by means of control signals or a serial bus will override a 'start'
command via the LCP.
The following control signals will still be active when [Hand on] is activated:
• [Hand on] - [Off] - [Auto on]
• Reset
• Coasting stop inverse
• Reversing
• Set-up select lsb - Set-up select msb
• Stop command from serial communication
•Quick stop
•DC brake
[Off]
stops the connected motor. The key can be
Enabled
[1] or
Disabled
[0] via par. 0-41
[Off]
Key on LCP
.
If no external stop function is selected and the [Off] key is inactive the motor can be stopped by
disconnecting the mains supply.
