Danfoss vlt aqua Programming Guide

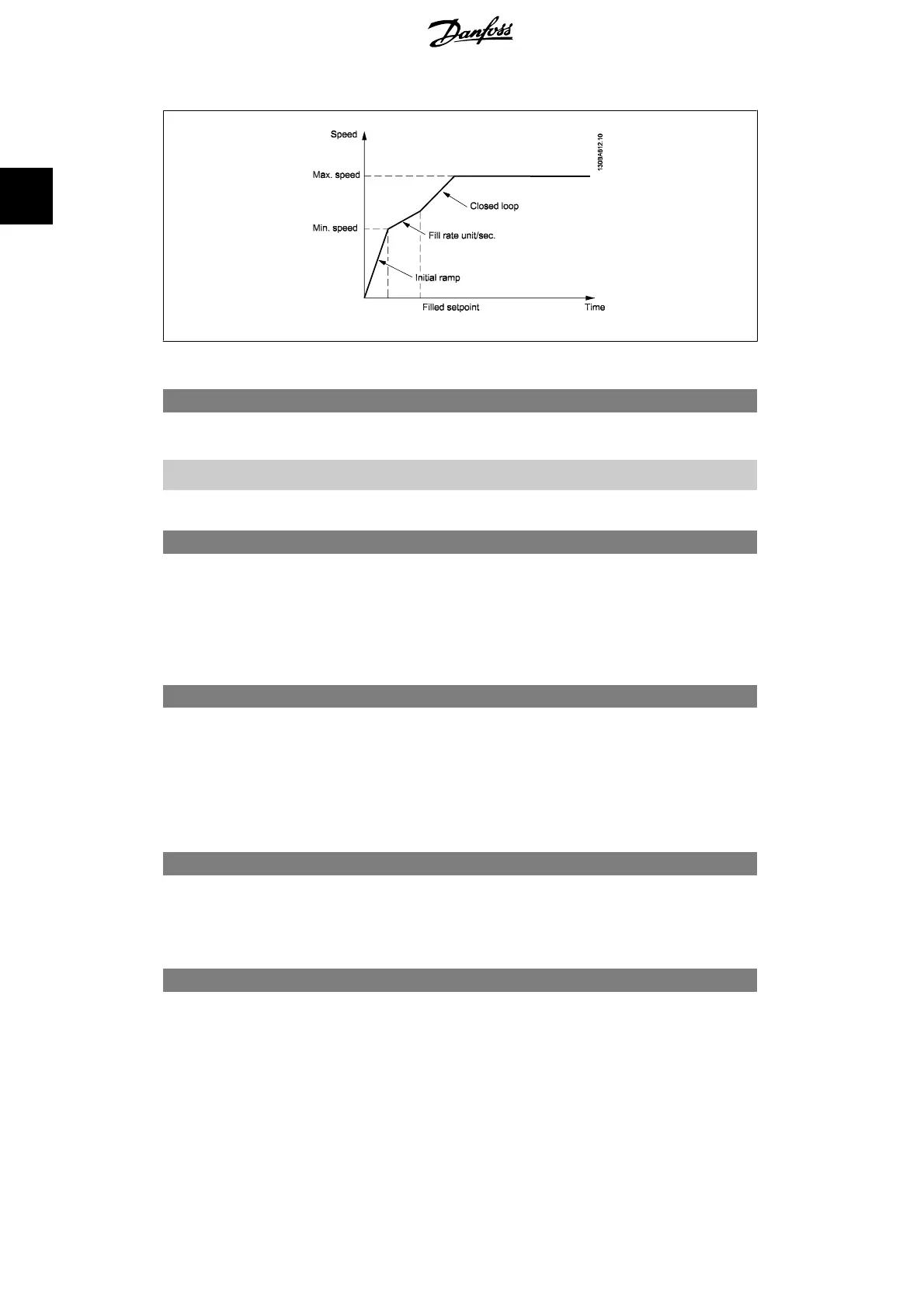

Illustration 2.5: Vertical Pipe System
29-00 Pipe Fill Enable
Option: Function:
[0]
*
Disabled
[1] Enabled Select Enabled to fill pipes with a user specified rate.
29-01 Pipe Fill Speed [RPM]
Range: Function:
Speed
Low
Limit
*
[Speed Low Limit -
Speed High Limit]
Set the filling speed for filling horizontal pipe systems. The
speed can be selected in Hz or RPM depending on the choice in
P4-11/P4-13 (RPM) or P4-12/P4-14 (Hz).
29-02 Pipe Fill Speed [Hz]
Range: Function:
Motor
Speed
Low
Limit
*
[Speed Low Limit -
Speed High Limit]
Set the filling speed for filling horizontal pipe systems. The
speed can be selected in Hz or RPM depending on the choice in
P4-11/P4-13 (RPM) or P4-12/P4-14 (Hz).
29-03 Pipe Fill Time
Range: Function:
0 s
*
[0 - 3600 s] Set the specified time for Pipe Fill of horizontal pipe systems.
29-04 Pipe Fill Rate
Range: Function:
0.001
units/s
*
[0.001 – 999999.999] Specifies the filling rate units/second using the PI controller. Fill
Rate units are Feedback Units/second. This function is for filling
up vertical pipe systems.
2. Parameter Description VLT
®
AQUA Drive Programming Guide
254 MG.20.O2.02 - VLT
®
is a registered Danfoss trademark
2
