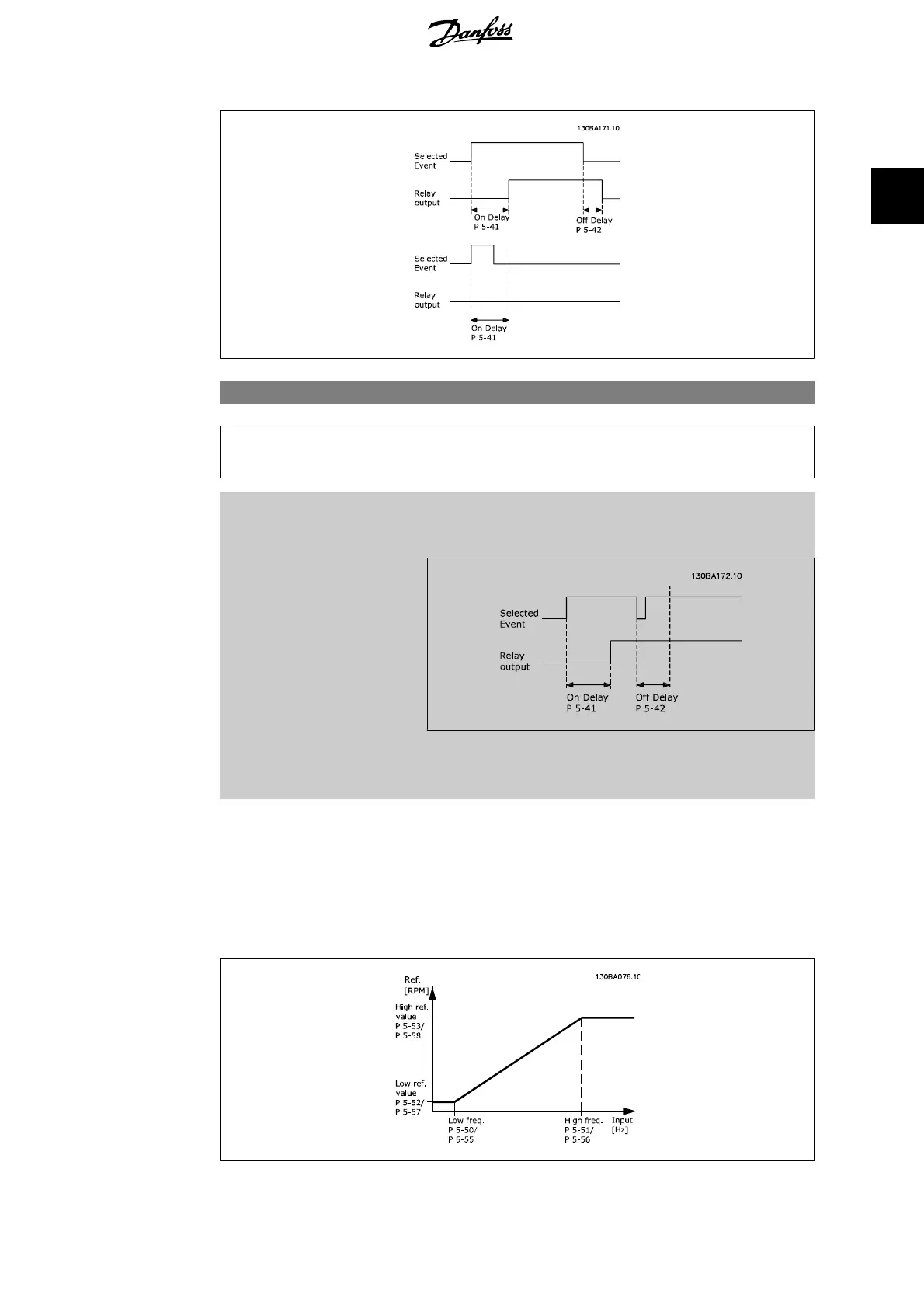

5-42 Off Delay, Relay
Array [8] (Relay 1 [0], Relay 2 [1], Relay 7 [6], Relay 8 [7], Relay 9
[8])
0.01s
*
[0.01 - 600.00 s.] Enter the delay of the relay cut-out time. Select one of available
mechanical relays and MCO 105 in an array function. See par.
5-40.
If the Selected Event condition changes before the on- or off
delay timer expires, the relay output is unaffected.
2.7.6. 5-5* Pulse Input
The pulse input parameters are used to define an appropriate window for the impulse reference
area by configuring the scaling and filter settings for the pulse inputs. Input terminals 29 or 33
act as frequency reference inputs. Set terminal 29 (par. 5-13) or terminal 33 (par. 5-15) to
Pulse
input
[32]. If terminal 29 is used as an input, then set par. 5-02 to
Input
[0].
VLT
®
AQUA Drive Programming Guide 2. Parameter Description
MG.20.O2.02 - VLT
®
is a registered Danfoss trademark
91
