5.4.4 Status Menu on NLCP
After power-up, Status Menu is active. Press [Menu] to
toggle between Status, Quick Menu, and Main Menu.
[
▲
] and [
▼
] toggle between the options in each menu.
The display indicates the status mode with a small arrow
above Status.

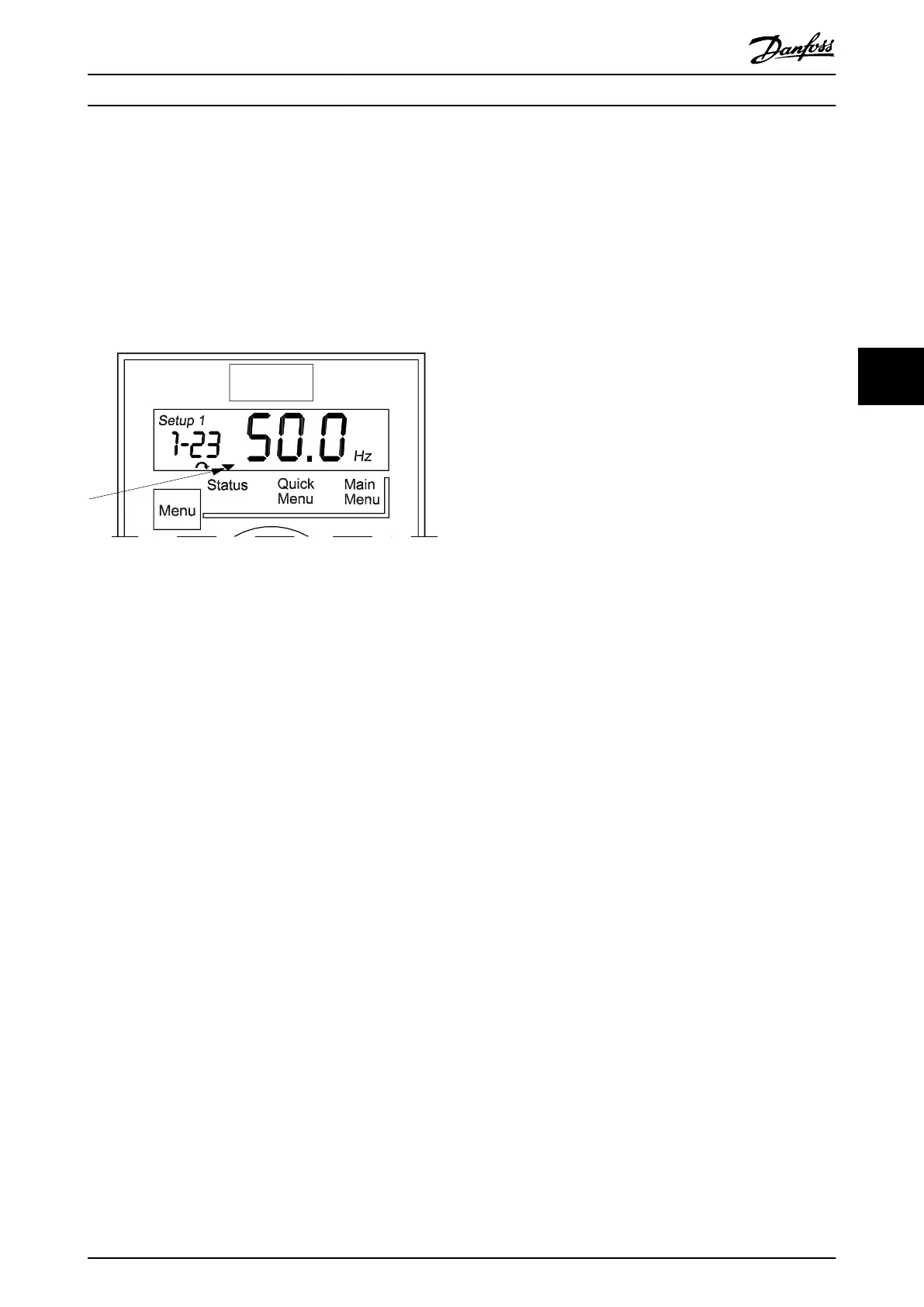

Illustration 5.6 Indicating Status Mode
The following 8 parameters can be accessed from NLCP
status menu in auto-on mode:
•
Parameter 16-02 Reference [%].
•
Parameter 16-09 Custom Readout.
•
Parameter 16-10 Power [kW].
•
Parameter 16-13 Frequency.
•
Parameter 16-14 Motor current.
•
Parameter 16-16 Torque [Nm].
•
Parameter 16-30 DC Link Voltage.
•
Parameter 16-52 Feedback[Unit].
The following 6 parameters can be accessed from NLCP
status menu in [Hand On] mode:
•
Parameter 16-09 Custom Readout.
•
Parameter 16-10 Power [kW].
•
Parameter 16-13 Frequency.
•
Parameter 16-14 Motor current.
•
Parameter 16-16 Torque [Nm].
•
Parameter 16-30 DC Link Voltage.
5.4.5 Main Menu on NLCP
The Main Menu gives access to all parameters.
1. To enter Main Menu, press [Menu] until the
indicator in the display is placed above Main
Menu.
2.
[
▲
] [
▼
]: Browse through the parameter groups.
3. Press [OK] to select a parameter group.
4.
[
▲
] [
▼
]: Browse through the parameters in the
specic group.
5. Press [OK] to select the parameter.
6.
[►] and [
▲
] [
▼
]: Set/change the parameter value.
7. Press [OK] to accept the value.
8. To exit, press either [Back] twice (or 3 times for
array parameters) to enter Main Menu, or press
[Menu] once to enter Status.
See Illustration 5.7, Illustration 5.8, and Illustration 5.9 for the
principles of changing the value of continuous,
enumerated, and array parameters, respectively. The
actions in the illustrations are described in Table 5.5,
Table 5.6, and Table 5.7.
Commissioning Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 25
