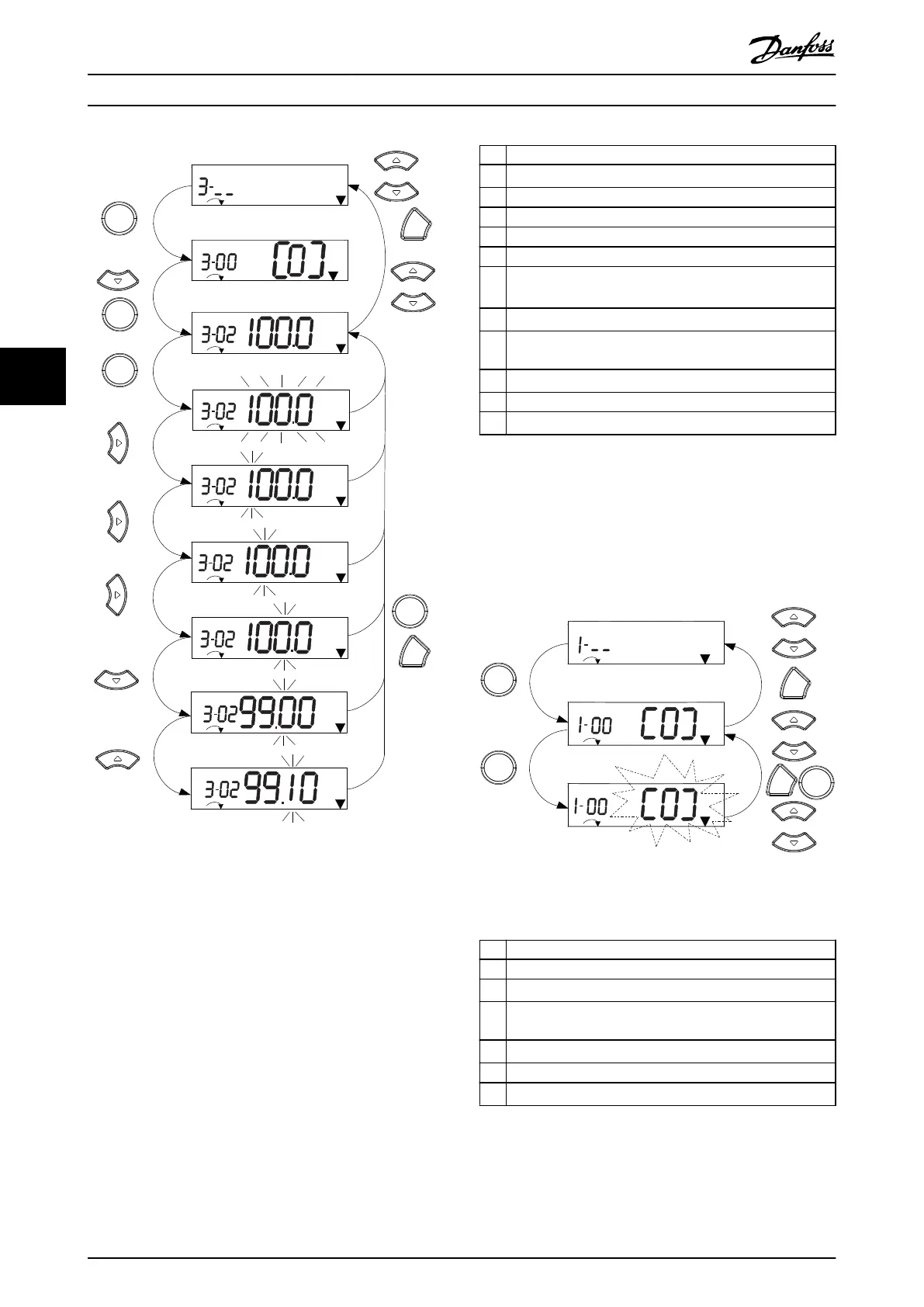

Illustration 5.7 Main Menu Interactions - Continuous
Parameters
1 [OK]: The rst parameter in the group is shown.
2
Press [
▼
] repeatedly to move down to the parameter.
3 Press [OK] to start editing.
4
[►]: First digit ashing (can be edited).
5
[►]: Second digit ashing (can be edited).
6
[►]: Third digit ashing (can be edited).
7
[
▼
]: Decreases the parameter value, the decimal point
changes automatically.
8
[
▲
]: Increases the parameter value.
9 [Back]: Cancel changes, return to 2.
[OK]: Accept changes, return to 2.
10
[
▲
][
▼
]: Select parameter within the group.
11 [Back]: Removes the value and shows the parameter group.
12
[
▲
][
▼
]: Select group.
Table 5.5 Changing Values in Continuous Parameters
For enumerated parameters, the interaction is similar, but
the parameter value is shown in brackets because of the
LCP 21 digits limitation (4 large digits), and the enum can
be greater than 99. When the enum value is greater than
99, the LCP 21 can only show the
rst part of the bracket.
130BC447.11
Setup 1
Setup 1
Setup 1
1
2
3
4
5
6
OK
OK
Back
7
OK
Back
Illustration 5.8 Main Menu Interactions - Enumerated
Parameters
1 [OK]: The rst parameter in the group is shown.
2 Press [OK] to start editing.
3
[
▲
][
▼
]: Change parameter value (ashing).
4 Press [Back] to cancel changes or [OK] to accept changes
(return to screen 2).
5
[
▲
][
▼
]: Select a parameter within the group.
6 [Back]: Removes the value and shows the parameter group.
7
[
▲
][
▼
]: Select a group.
Table 5.6 Changing Values in Enumerated Parameters
