Array parameters function as follows:
130BC448.10
1
2
4
5
6
7
8
9
10
OK
Back
Back
Back
5 x
Setup 1
Setup 1
Setup 1
Setup 1
%
INDEX
%
INDEX
%
INDEX
Setup 1
INDEX
%
OK
OK
OK

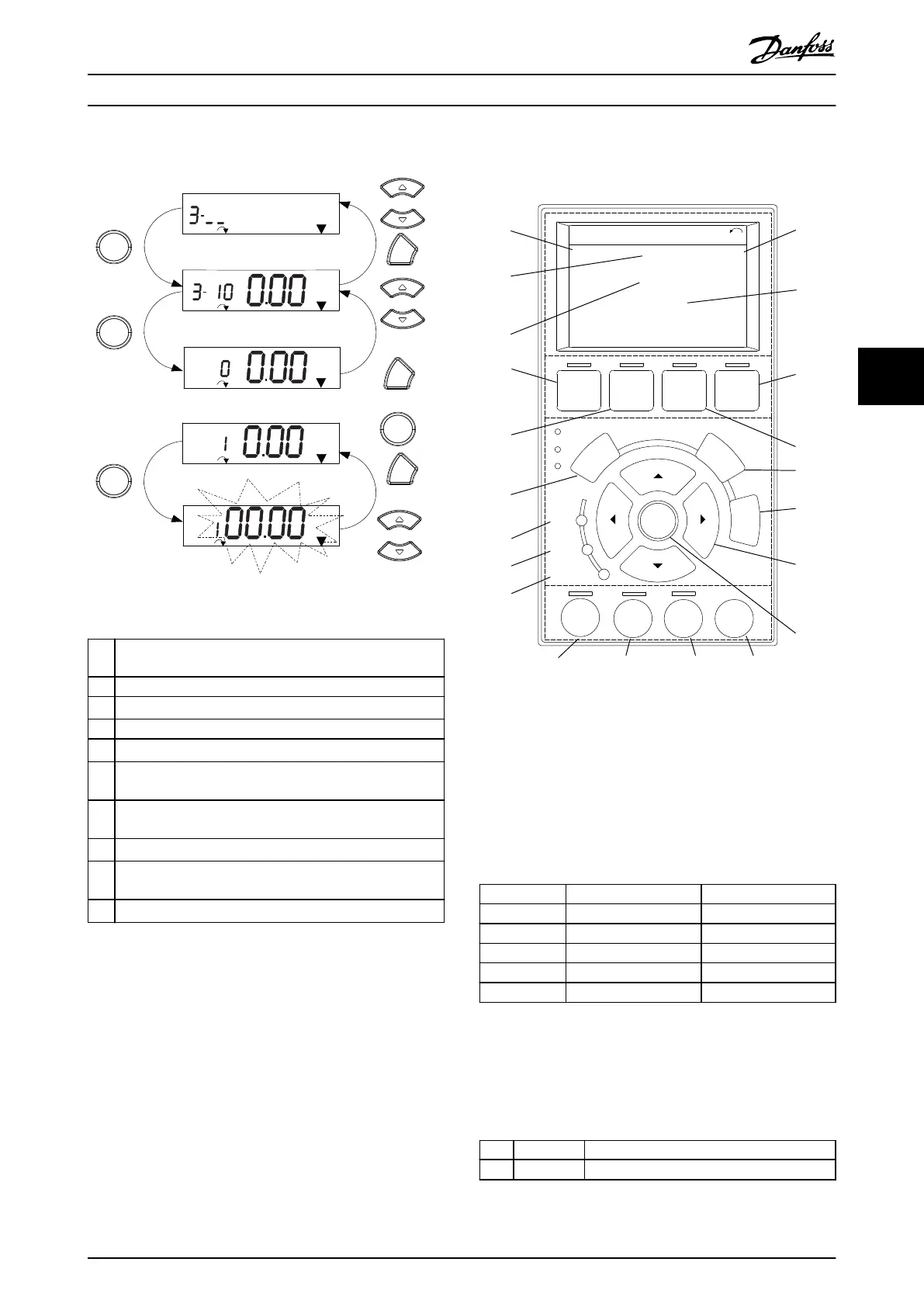

Illustration 5.9 Main Menu Interactions - Array Parameters
1 [OK]: Shows parameter numbers and the value in the rst
index.
2 [OK]: Index can be selected.
3
[
▲
][
▼
]: Select index.
4 [OK]: Value can be edited.
5
[
▲
][
▼
]: Change parameter value (ashing).
6 [Back]: Cancels changes.
[OK]: Accepts changes.
7 [Back]: Cancels editing index, a new parameter can be
selected.
8
[
▲
][
▼
]: Select parameter within the group.
9 [Back]: Removes parameter index value and shows the
parameter group.
10
[
▲
][
▼
]: Select group.
Table 5.7 Changing Values in Array Parameters
5.4.6 Graphical Local Control Panel
The graphical local control panel LCP 102 has a larger
display area, which shows more information than LCP 21.
LCP 102 supports English, Chinese, and Portuguese
displays.
The GLCP is divided into 4 functional groups (see
Illustration 5.10).
A. Display area.
B. Display menu keys.
C. Navigation keys and indicator lights (LEDs).
D. Operation keys and reset.
130BD598.10
Auto
On
Reset
Hand
On
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(1)
36.4 kW
Auto Remote Ramping
0.000
On
Alarm
Warn.
A
7.83 A
799 RPM
B
C
D
53.2 %
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19 20 21
Illustration 5.10 Graphic Local Control Panel (GLCP)
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage or a DC bus
terminal.
The information shown on the LCP can be customized for
user applications. Select options in the Quick Menu Q3-13
Display Settings.
Display Parameter number Default setting
1 0-20 [1602] Reference [%]
2 0-21 [1614] Motor Current
3 0-22 [1610] Power [kW]
4 0-23 [1613] Frequency
5 0-24 [1502] kWh Counter
Table 5.8 Legend to Illustration 5.10, Display Area
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key Function
6 Status Shows operational information.
Commissioning Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 27
5 5
