1.6.2 Enclosure Sizes and Power Ratings
Enclosure size
380–480 V
J1 J2 J3 J4 J5 J6 J7
Power size [kW
(hp)]
0.37–2.2
(0.5–3)
3.0–5.5
(4.0–7.5)
7.5
(10)
11–15
(15–20)
18.5–22
(25–30)
30–45
(40–60)
55–75
(75–100)
Dimensions
[mm (in)]
Height A 210 (8.3) 272.5 (10.7) 272.5 (10.7) 317.5 (12.5) 410 (16.1) 515 (20.3) 550 (21.7)
Width B 75 (3.0) 90 (3.5) 115 (4.5) 133 (5.2) 150 (5.9) 233 (9.2) 308 (12.1)
Depth C 168 (6.6) 168 (6.6) 168 (6.6) 245 (9.6) 245 (9.6) 241 (9.5) 323 (12.7)
Depth C with
option B
173 (6.8) 173 (6.8) 173 (6.8) 250 (9.8) 250 (9.8) – –
D 180 (7.1) 240 (9.4) 240 (9.4) 270 (10.6) 364.7 (14.4) 452 (17.8) 484.5 (19.0)
Mounting holes
a 198 (7.8) 260 (10.2) 260 (10.2) 297.5 (11.7) 390 (15.4) 495 (19.5) 521 (20.5)
b 60 (2.4) 70 (2.8) 90 (3.5) 105 (4.1) 120 (4.7) 200 (7.9) 270 (10.6)
Mounting screw M4 M5 M5 M6 M6 M8 M8

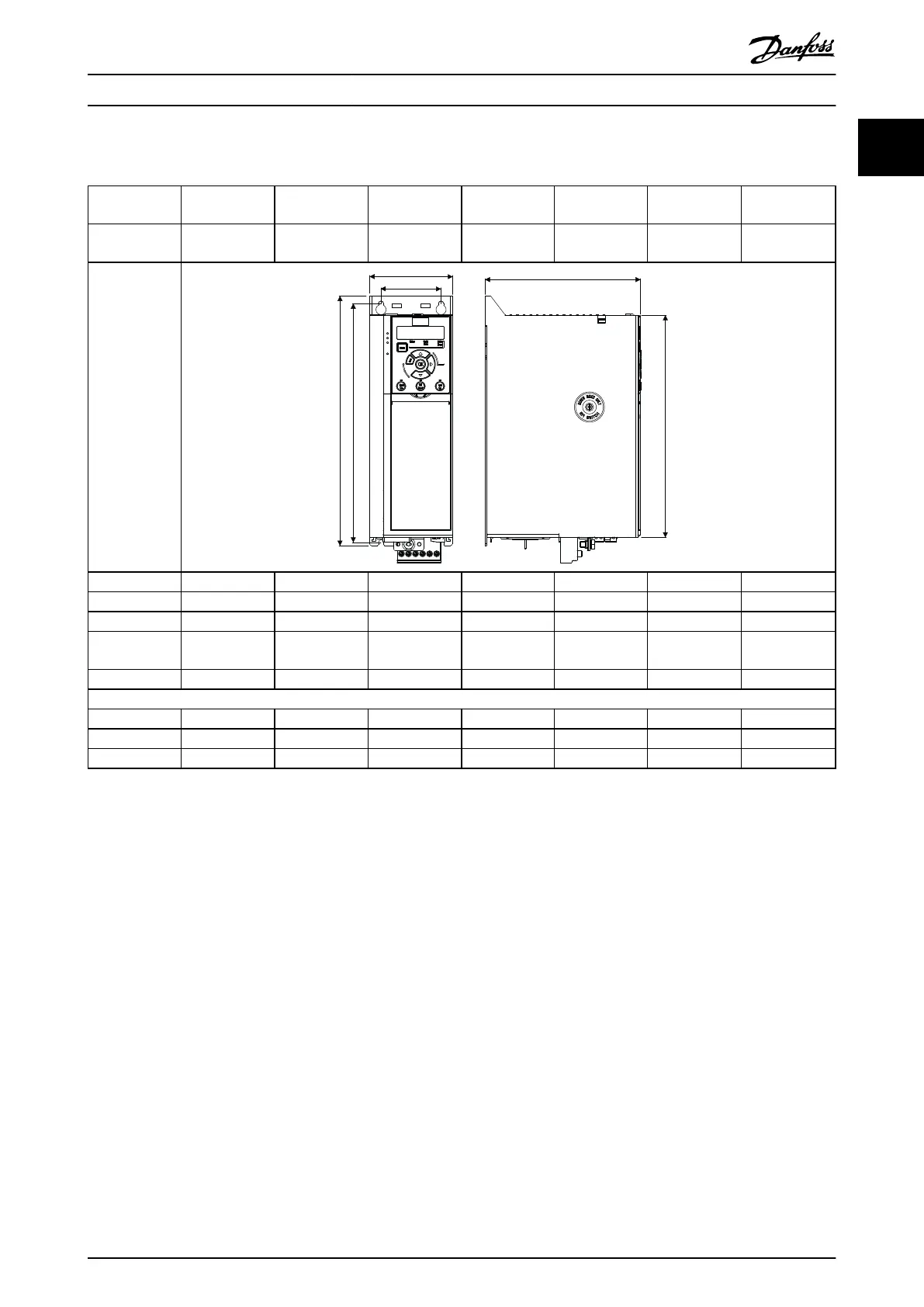

Table 1.1 Enclosure Sizes, Power Ratings, and Dimensions
Introduction Quick Guide
MG06A702 Danfoss A/S © 03/2017 All rights reserved. 5
1 1
