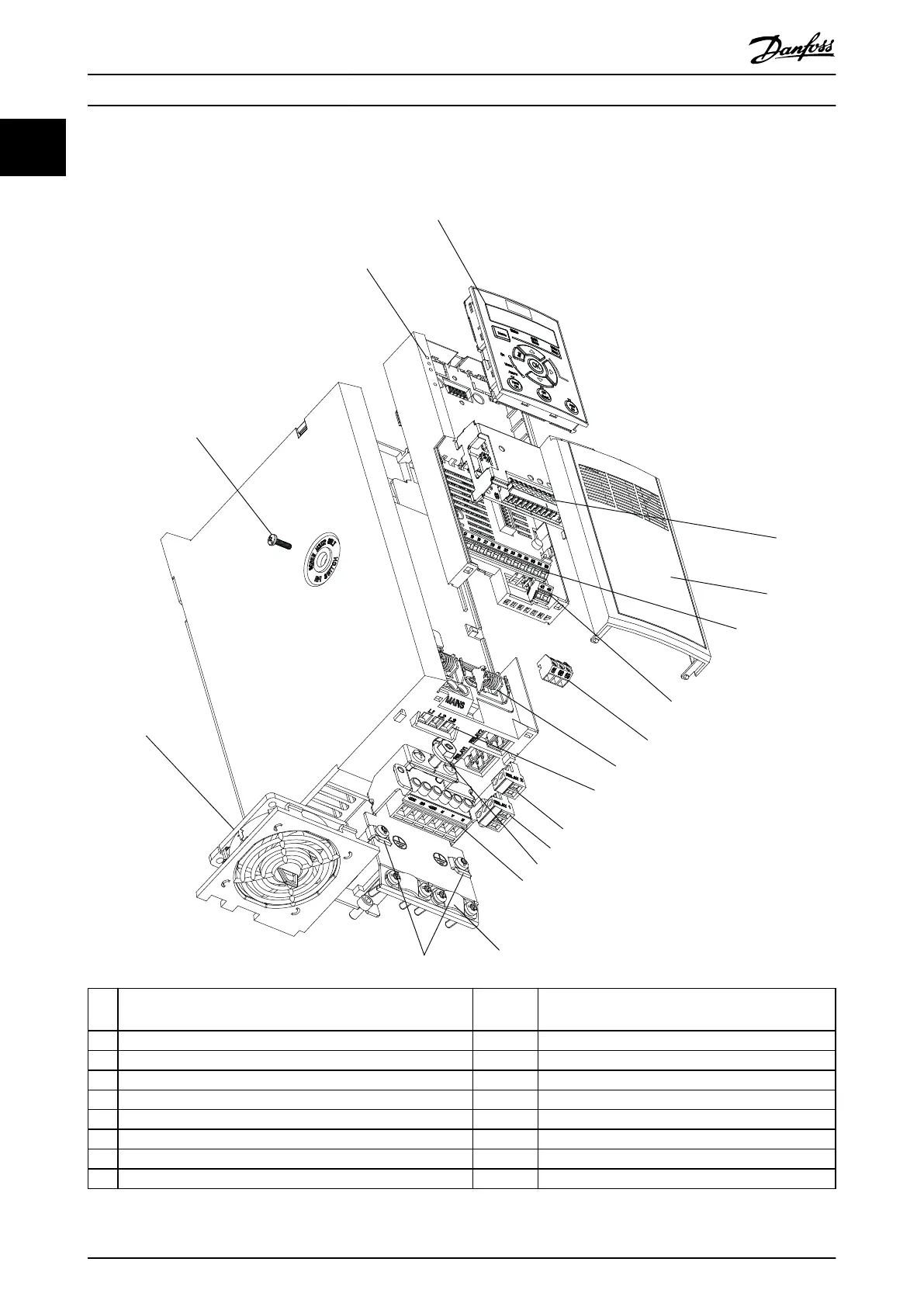

1.6.3 Exploded Views
130BC439.11
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
03
02
01
05
04
1 NLCP (accessory) 10 2-pole relay 2 (0.37–7.5 kW/0.5–10 hp), pluggable
3-pole relay 2 (11–22 kW/15–30 hp), pluggable
2 Control cassette 11 Mains terminals
3 RFI switch (screw M3x12 only) 12 Cable strain relief (accessory for 0.37–2.2 kW units)
4 Removable fan assembly 13 Pluggable RS485 terminal
5 Grounding clamp (accessory) 14 Fixed I/O terminals
6 Shielded cable grounding clamp and strain relief (accessory) 15 Fixed I/O terminals
7 Motor terminals (U, V, W), and brake and load sharing terminals 16 Terminal cover
8 PE ground 17 B options (MCB 102/MCB 103 accessories)
9 3-pole relay 1
Illustration 1.2 Exploded View, J1–J5 (0.37–22 kW/0.5–30 hp), IP20 (Taking J2 as an example)
Introduction
VLT
®
AutomationDrive FC 360
6 Danfoss A/S © 03/2017 All rights reserved. MG06A702
