3.1.4 Decoupling Plate
Use the decoupling plate for EMC-correct installation.
Shown here on an H3 enclosure.
130BB793.10
99 99

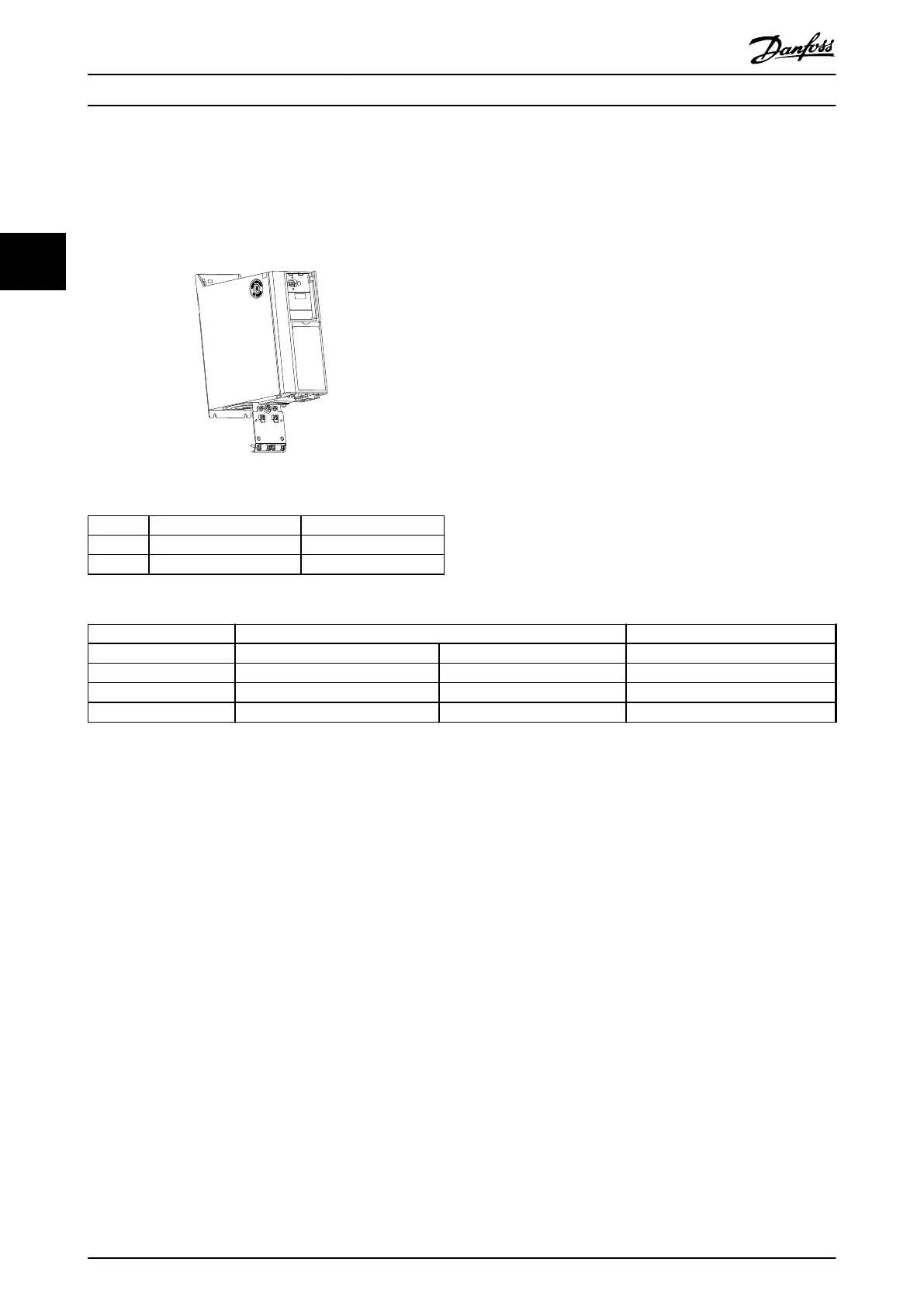

Illustration 3.6 Decoupling Plate
Length [mm/(in)] Width [mm/(in)]
H3 80.8 (3.2) 72.0 (2.8)
H4/H5 85.0 (3.3) 84.8 (3.3)
Table 3.5 Dimensions, Decoupling Plate
Cooling capacity Decoupling plate
Enclosure 3x200–240 V 3x380–480 V –
H3 – 4–5 TR 120Z0582
H4 4–5 TR 6.5 TR 120Z0583
H5 6.5 TR – 120Z0583
Table 3.6 Decoupling Plate Specications
Selection
VLT
®
Compressor Drive CDS 803
