1.1.4 Definitions
Frequency converter
I
VLT,MAX
Maximum output current.
I
VLT,N
Rated output current supplied by the frequency converter.
U
VLT,
MAX
Maximum output voltage.
Input
Control command
Start
and stop the connected motor by means of LCP and
digital inputs.
Functions are divided into two groups.
Functions in group 1 have higher priority than functions in
group 2.
Group 1 Reset, Coasting stop, Reset and Coasting stop,
Quick-stop, DC braking, Stop and the [OFF] key.
Group 2 Start, Pulse start, Reversing, Start reversing, Jog
and
Freeze output
Table 1.4
Motor:
Motor Running
Torque
generated on output shaft and speed from zero
rpm to max. speed on motor.
f
JOG
Motor frequency when the jog function is activated (via
digital
terminals).
f
M
Motor frequency.
f
MAX
Maximum motor frequency.
f
MIN
Minimum motor frequency.
f
M,N
Rated motor frequency (nameplate data).
I
M
Motor current (actual).
I
M,N
Rated motor current (nameplate data).
n
M,N
Rated motor speed (nameplate data).
n
s
Synchronous motor speed
n
s
=
2 × par . 1 − 23 × 60 s
par . 1 − 39
n
slip
Motor slip.
P
M,N
Rated motor power (nameplate data in kW or HP).
T
M,N
Rated torque (motor).
U
M
Instantaneous motor voltage.
U
M,N
Rated motor voltage (nameplate data).

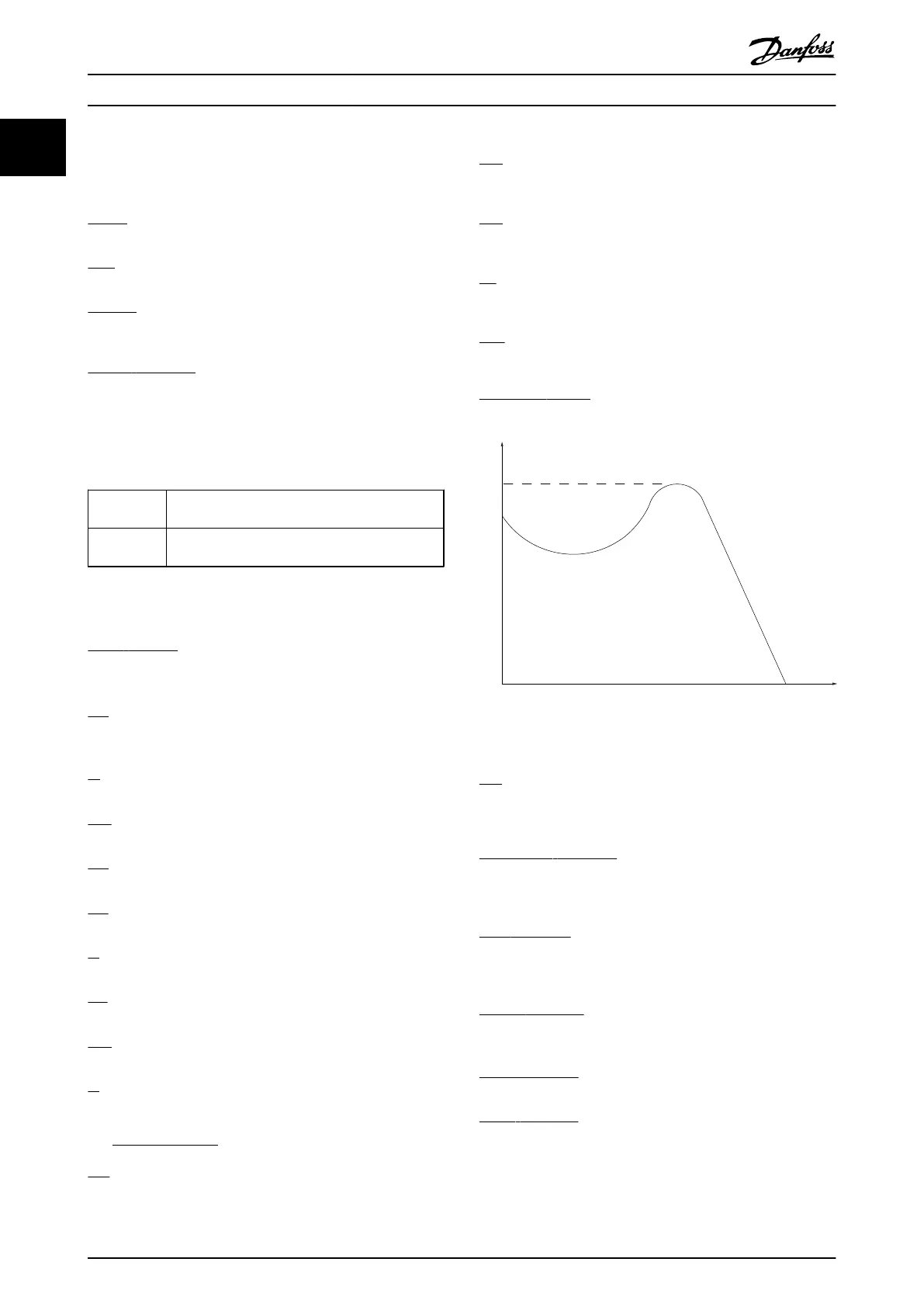

Break-away torque
175ZA078.10
Pull-out
rpm
Torque
Illustration 1.1
η
VLT
The efficiency of the frequency converter is defined as the
ratio
between the power output and the power input.
Start-disable command
A
stop command belonging to the group 1 control
commands - see this group.
Stop command
See
Control commands.
References
Analog Reference
A
signal transmitted to the analog inputs 53 or 54, can be
voltage or current.
Binary Reference
A
signal transmitted to the serial communication port.
Preset Reference
A
defined preset reference to be set from -100% to +100%
of the reference range. Selection of eight preset references
via the digital terminals.
Introduction
VLT
®
Refrigeration Drive Programming Guide
4 MG16H102 - VLT
®
is a registered Danfoss trademark
