3.20 Main Menu - Analog I/O Option MCB
109 - Group 26
3.20.1 Analog I/O Option MCB 109, 26-**
The Analog I/O Option MCB 109 extends the functionality
of
VLT Refrigeration Drive FC 103 Series frequency
converters, by adding a number of additional,
programmable analog inputs and outputs. This could be
especially useful in Building Management System instal-
lations where the frequency converter may be used as
decentral I/O, obviating the need for an outstation and
thus reducing cost.

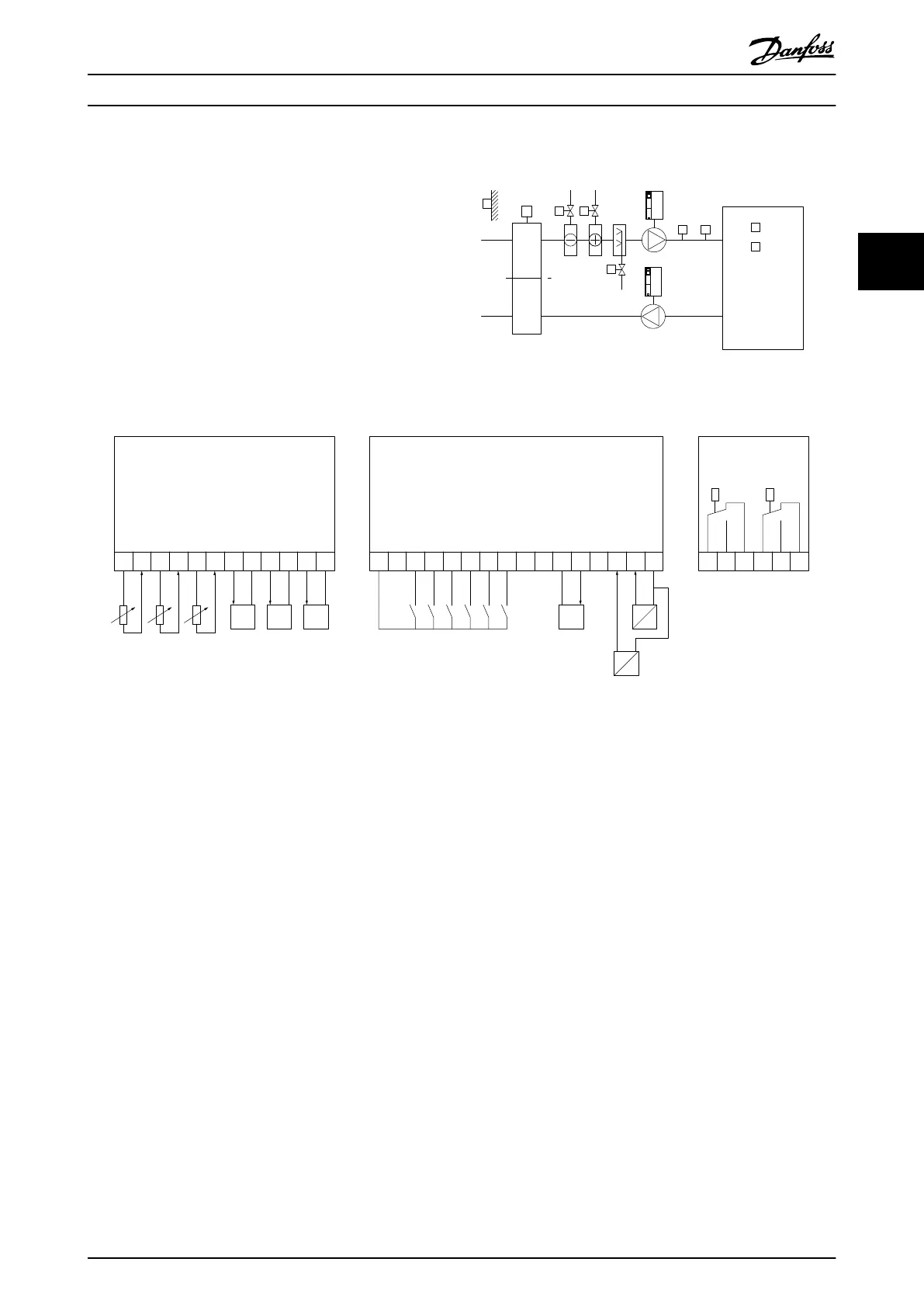

Consider the diagram:
130BA382.10
M
M
M
P T
T
T
H
Illustration 3.68
Analog I/O Carsd Control Card Power card
Room temperature Supply temperature Outdoor temperature Heating Coil Cooling coil Dampers or Heat recover Wheel
Humidier Duct Pressure Humidity sensor
Humidier steps
or
Cooling steps
RELAY1 RELAY2
1 2 3 10 11 124 5 6 7 8 9 12 13 18 19 27 29 32 33 20 37 39 42 50 53 54 55 01 02 03 04 05 06
130BA381.10
X42
AIN AIN AIN AOUT AOUT AOUT 24VDC 24VDC DIN DIN DIN/DOUT DIN/DOUT DIN DIN AOUT AIN AIN
Illustration 3.69
Parameter Description
VLT
®
Refrigeration Drive Programming Guide
MG16H102 - VLT
®
is a registered Danfoss trademark
157
