Danfoss VLT FC 103 Operating Instructions

All dimensions are in mm [in]
130
[5.1]
656
[25.8]
844
[33.2]
901
[35.5]
148
[5.8]
18
[0.7]
82
[3.2]
20
[0.8]
378
[14.9]
507
[20.0]
164
[6.5]
674
[26.5]
99
[3.9]
200
[7.9]
200
[7.9]
180
[7.1]
246
[9.7]
325
[12.8]
78
[3.1]
123
[4.8]
844
[33.2]
561
[22.1]
130BC515.11
1
4
2
3
1 Ceiling
2 Air space outlet minimum 225 mm [8.9 in]
3 Air space inlet minimum 225 mm [8.9 in]
4 Floor

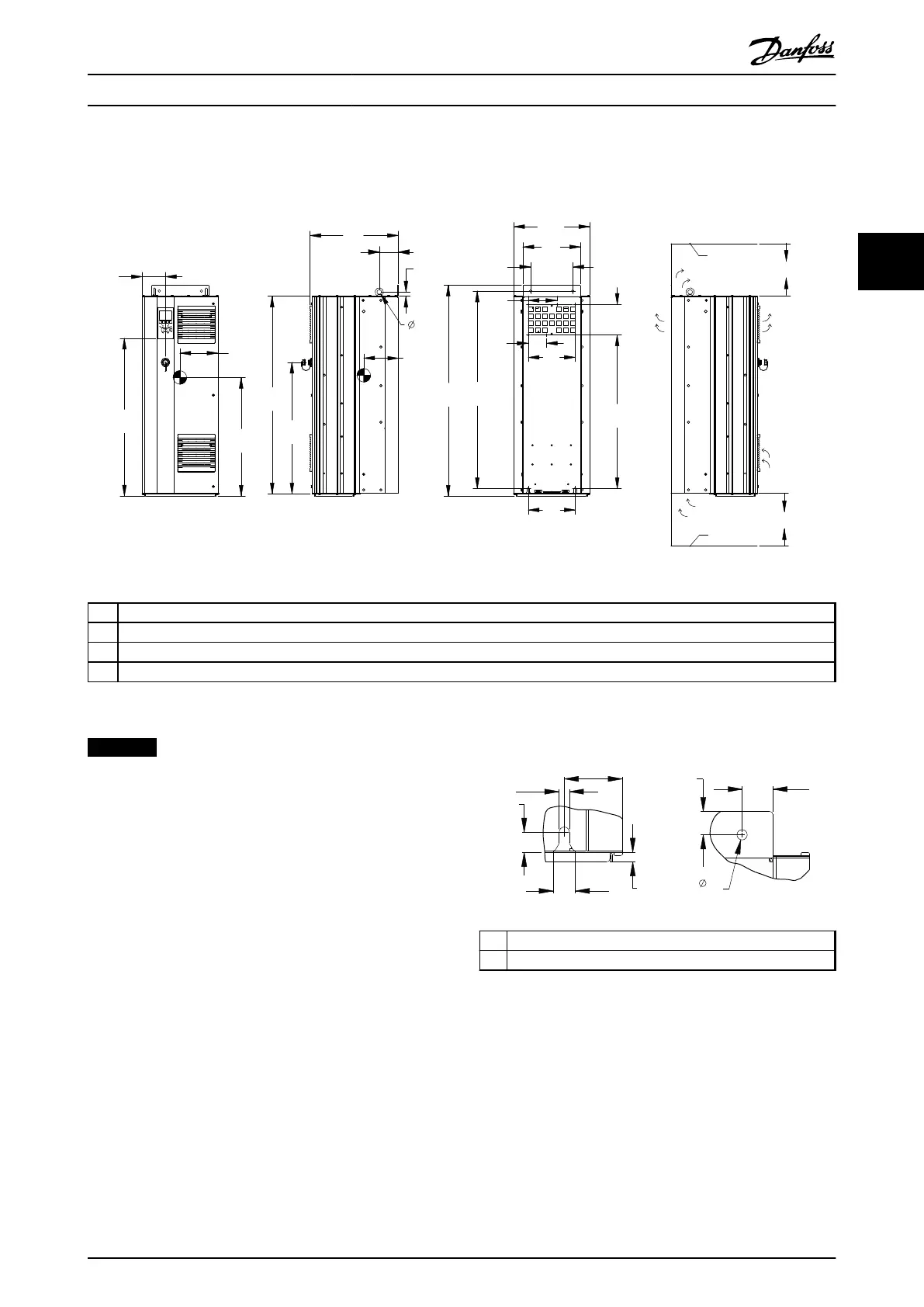

Illustration 3.5 Mechanical Dimensions, D1h
NOTICE
If using a kit to direct the airflow from the heat sink to
the outside vent on the back of the frequency converter,
the required ceiling clearance is 100 mm.
1
33
[1.3]
63
[2.5]
24
[0.9]
22
[0.9]
25
[1.0]
11
[0.4]
10
[0.4]
11
[0.4]
2
130BD514.10
1 Bottom mounting slot detail
2 Top mounting hole detail
Illustration 3.6 Detail Dimensions, D1h
Installation Operating Instructions
MG16J202 Danfoss A/S © Rev. 05/2014 All rights reserved. 15
3 3
