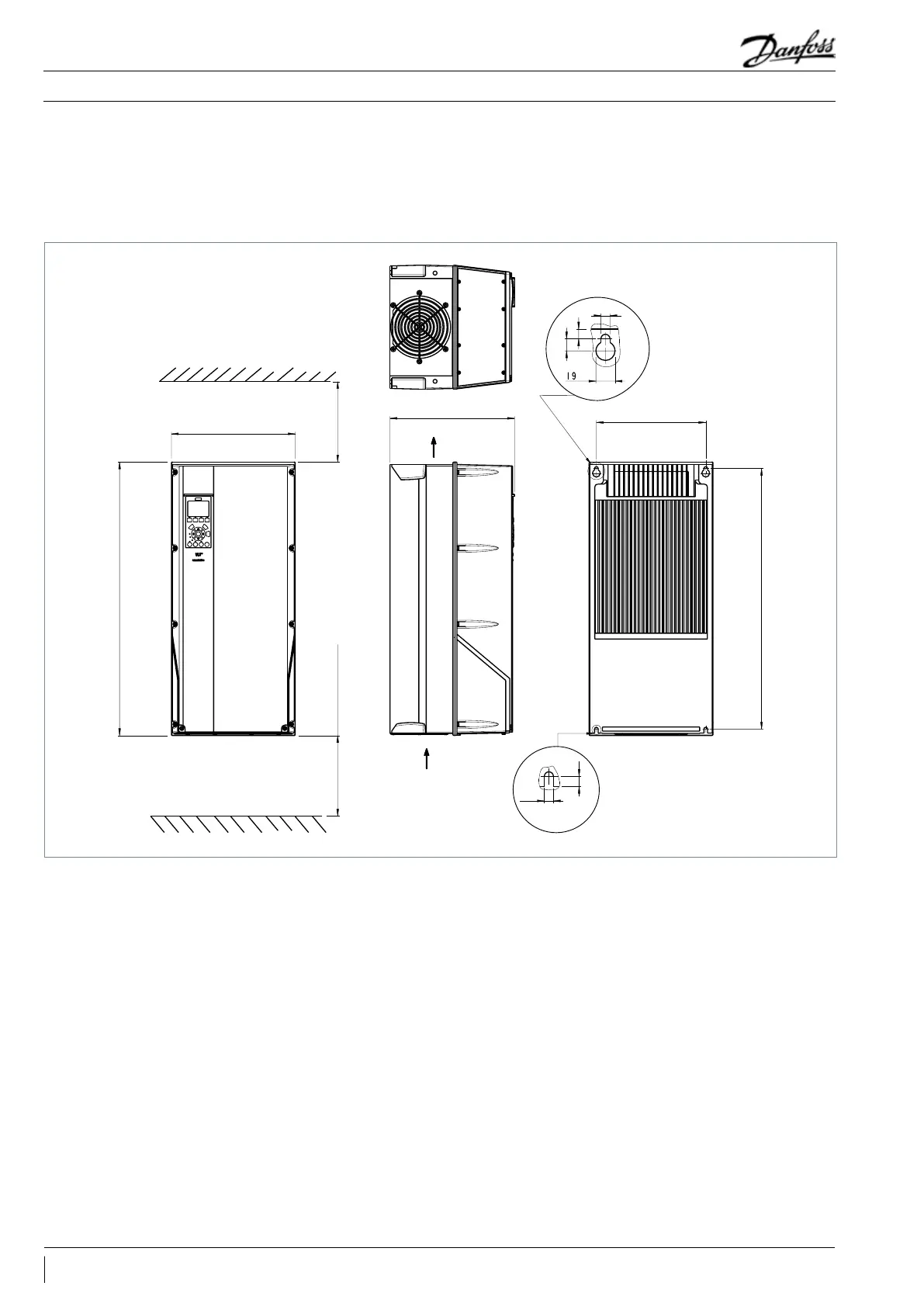

Dimensions
CDS303 frequency converter - enclosure C1
200-240 volts – 15-18-22 kW - IP55 housing
9
10
scale 1:2
308
310
648
272
9
9.8
12
scale 1:2
680
Min 200
Air space outlet
Min 200
Air space inlet
Air inlet
Mounting base
Air outlet
32 FRCC.PC.023.A8.02
