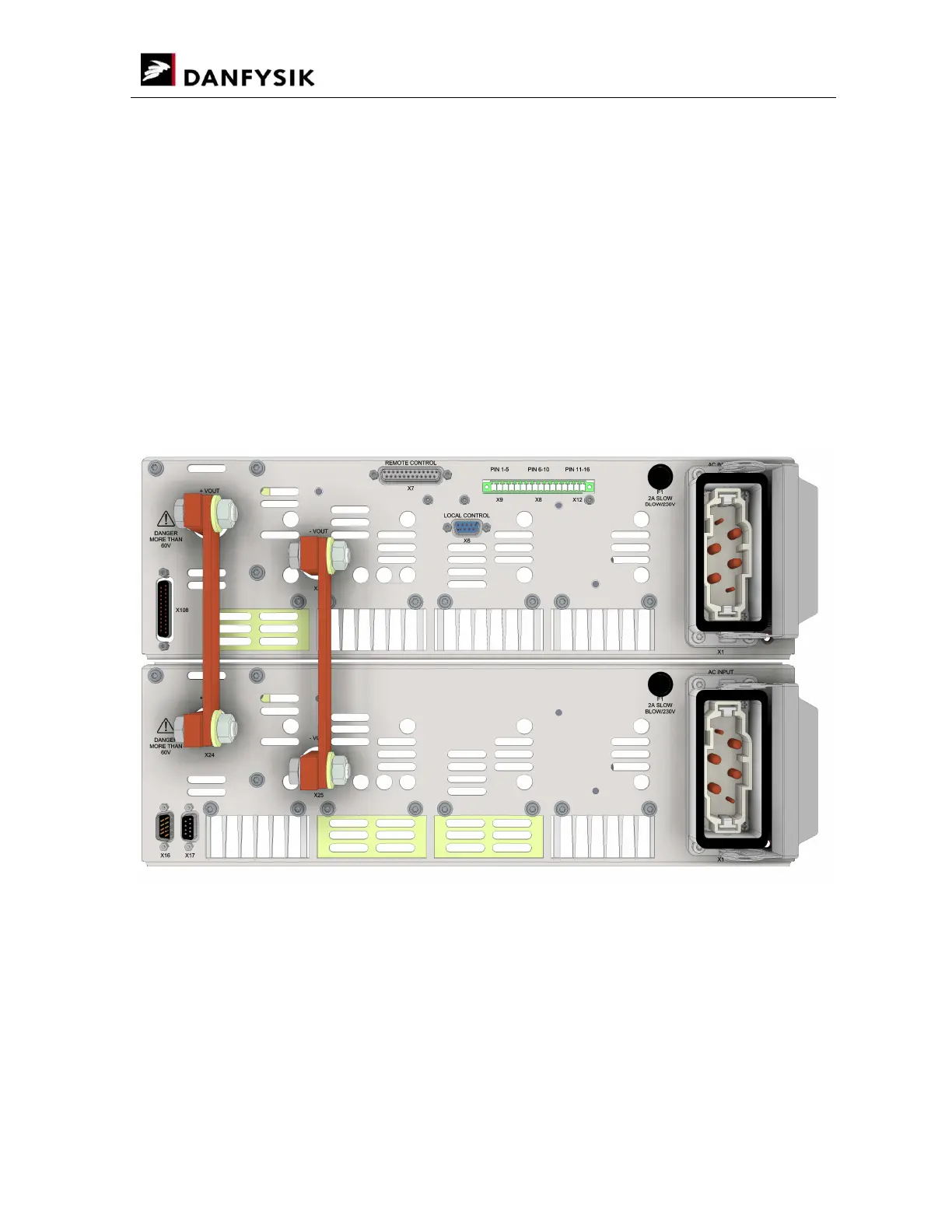

5. System 9700 Interface specification:
The System 9700 consists of one master control units and up to eight slave power units.
The combined unit has following external connections:
 REMOTE control Interface, D-sub 25 pole female.
 LOCAL control interface, D-sub 9 pole female.
 AC main input, 3 phase, Neutral and Earth and AC Control input.
 Voltage output (+) X24, (-) X25
 MPS Status, 16-pole connector.
 External trig (for use with Ramp), 16-pole connector.
 External interlocks and polarity switch, 16-pole connector.
 Fuse 2 A.
 Water in/out for water cooling or air-cooled.
