Danfysik 9700 - Relay Extension Board (Optional); Output Current; Output Voltage Monitor (Optional)

System 9700 User Manual
Page 51 of 56

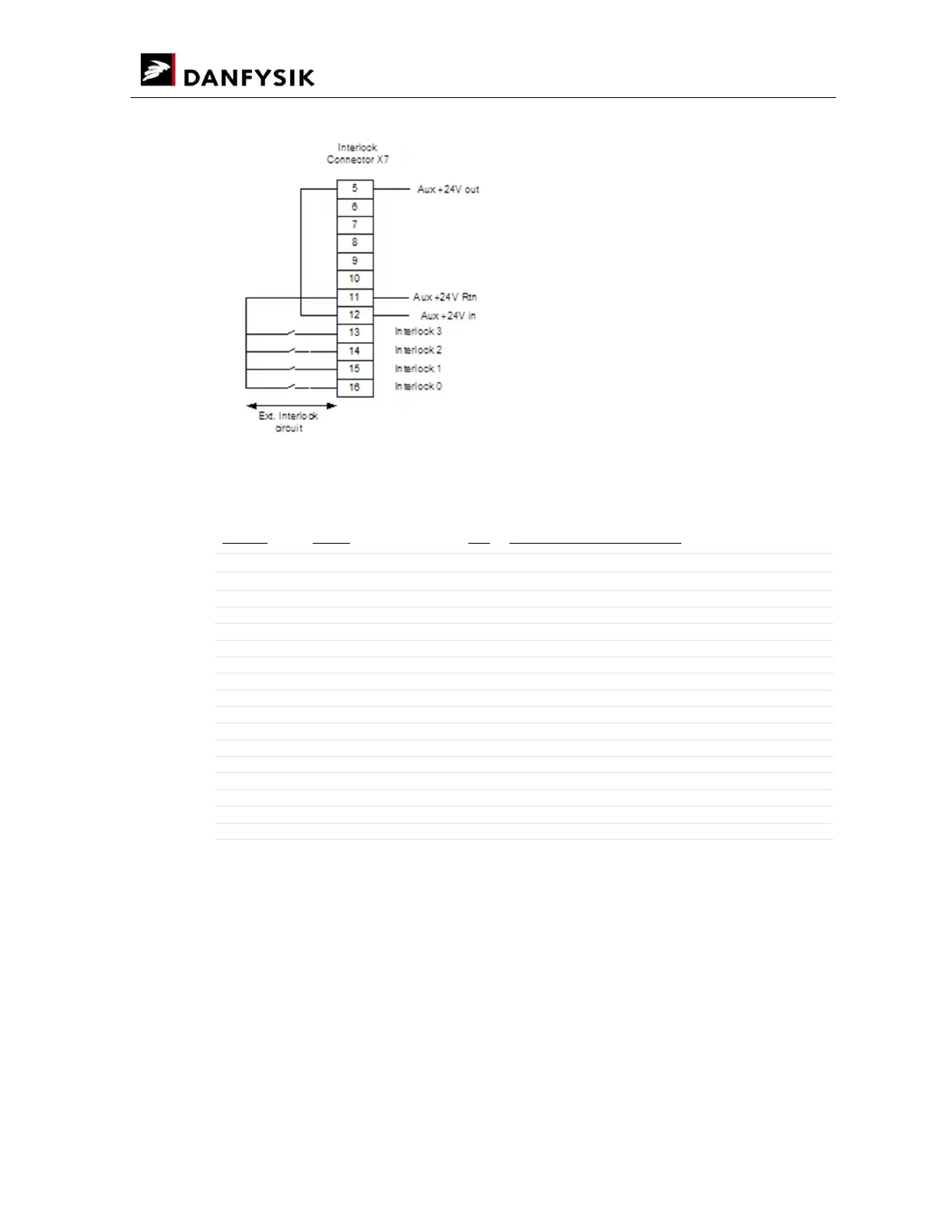

Interlock connections
5.2.4. Relay Extension Board (Optional)
Counterpart for connector is Phoenix FMCD 1,5/9-ST-3,5
Pin no: Name I/O Description & Specification
1 top
SUM-INTL
I
SUM Interlock
1 Bottom
SUM-INTL
O
SUM Interlock
2 top
LOC
-
REM
I
Local/Remote
2 bottom
LOC
-
REM
O
Local/Remote
3 top
ON
-
OFF
I
ON/OFF contact set 1
3 bottom
ON
-
OFF
O
ON/OFF contact set 1
4 top
ON
-
OFF
I
ON/OFF contact set 2
4 bottom
ON
-
OFF
O
ON/OFF contact set 2
5 top
READY
I
READY
5 bottom
READY
O
READY
6 top
SUM
-
EXT
-
INTL
I
SUM External Interlock
6 bottom
SUM
-
EXT
-
INTL
O
SUM External Interlock
7 top
EARTH LEAK
I
EARTH Leak interlock
7 bottom
EARTH LEAK
O
EARTH Leak interlock
8 top
OCP
I
Overcurrent Interlock
8 bottm
OCP
O
Overcurrent Interlock
9 top
Phase Failure
I
Phase Failure
9 bottm
Phase Failure
O
Phase Failure
Max rating for relay output is:
 < 30V DC
 < 100mA
5.2.5. Output current / output voltage monitor (Optional)
BNC connector on rear panel
Ratings:
 0V – 10 V
 < 5mA
