3.2.4. The display
The display is a multi-purpose graphical window. The window can be divided into the following
groups:

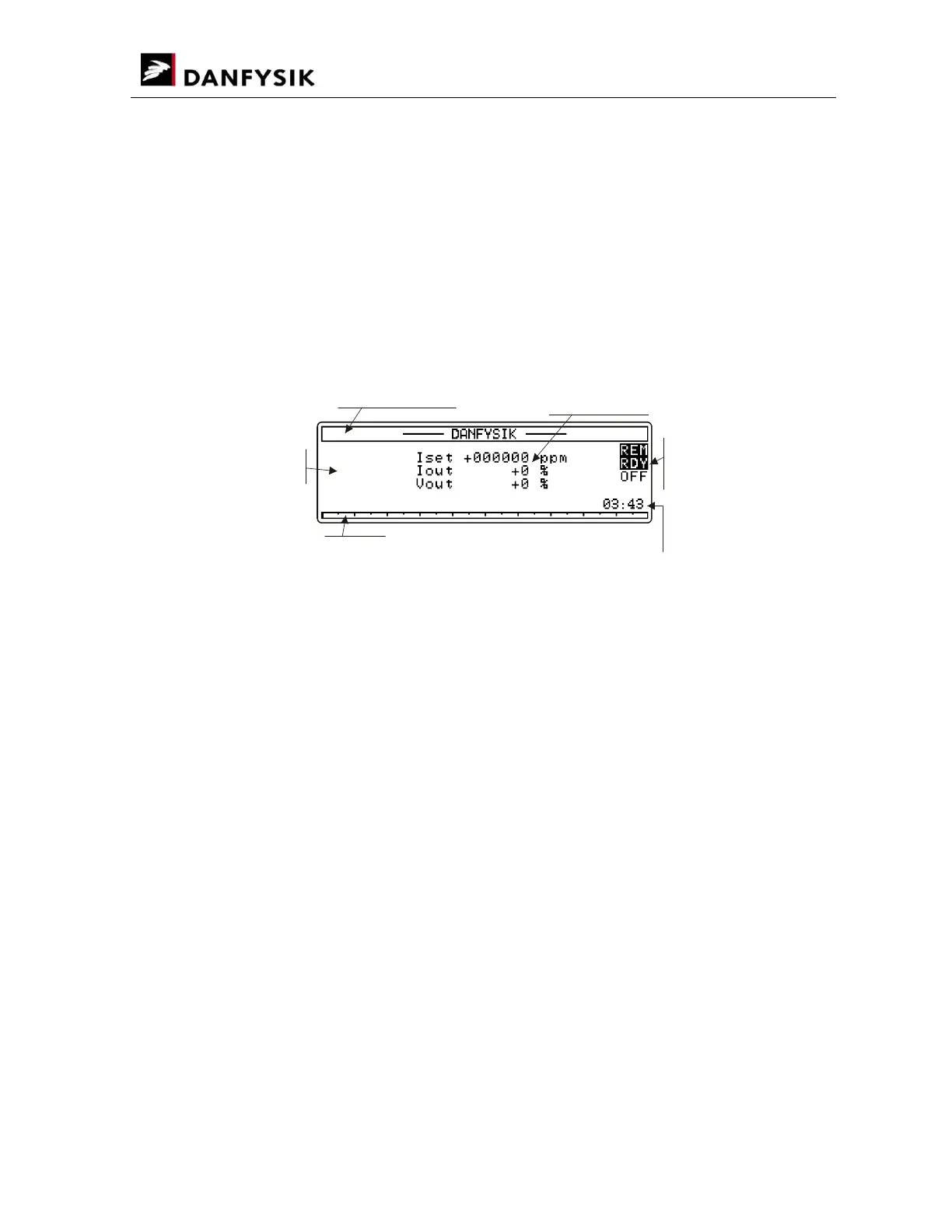

Default window:
The default window is shown below. If the M-Panel is unused for 5 minutes, it will automatically
revert to this state. This is for security reasons. Press the “MENU” key again to exit any menu
and return to this default window. Any on-going operations will be cancelled.
Scrolling menu bar:
The upper part of the display is normally used for displaying the available top menus. In the
default window, “------ DANFYSIK ------“ is displayed. This is a so-called “scrolling menu bar”
since unlike normal Windows
©
OS pull-down menus, it is the top menus that scroll using the
“” “” keys.
Pull down menu area:
The pull-down menus are always shown in this area. If a pull-down menu contains sub-menus,
they will advance to the right. The second sub-menu will overwrite the “Set and Output” area.
Power supply Set and Output
The upper line displays the output current setting with six digits. After a cold start, it displays
"SET 000000 ppm". When full output current is set, it displays "Iset 999999 ppm", which is to
be read as 99.9999% of full scale. If required, a setting in Ampere with six digits and a decimal
point can be adapted. This will be set at Danfysik during test or by Danfysik service personnel.
The middle line displays the actual output current with two digits. For example, "Iout 54%"
means that the current is 54% of full scale. This reading is made by the internal 8 bit bipolar
ADC. If a more accurate read-out is required, a control module can be added with a 16 bit ADC.
The current will then be automatically displayed with six digits where the last digit will always
be zero, i.e. with five significant digits. For example, "Iout 346340 ppm" means that the current
is 34.634% of full scale. If required, an output reading in Ampere with two or five digits can be
adapted. This will be set at Danfysik during test or by Danfysik service personnel.
The lower line displays the actual output voltage with two digits. For example, "Vout 45%"
means that the voltage is 45% of full scale. This reading is made by the internal 8 bit bipolar
ADC. If required, an output reading in Volt with two digits can be adapted. This will be set at
Danfysik during test or by Danfysik service personnel.
Bar graph
Status
area
Clock,
Help text,
area
Information,
Scrolling menu bar
Pull down
menu area
Power supply
Set and Output
