150i Desktop Card Personalization System 7
Opening the Top Cover
The Top Cover can be opened with either a four-digit password or a key. The
default password shipped from the factory for the 150i system is *00000. This
password should be changed upon receipt of the machine.

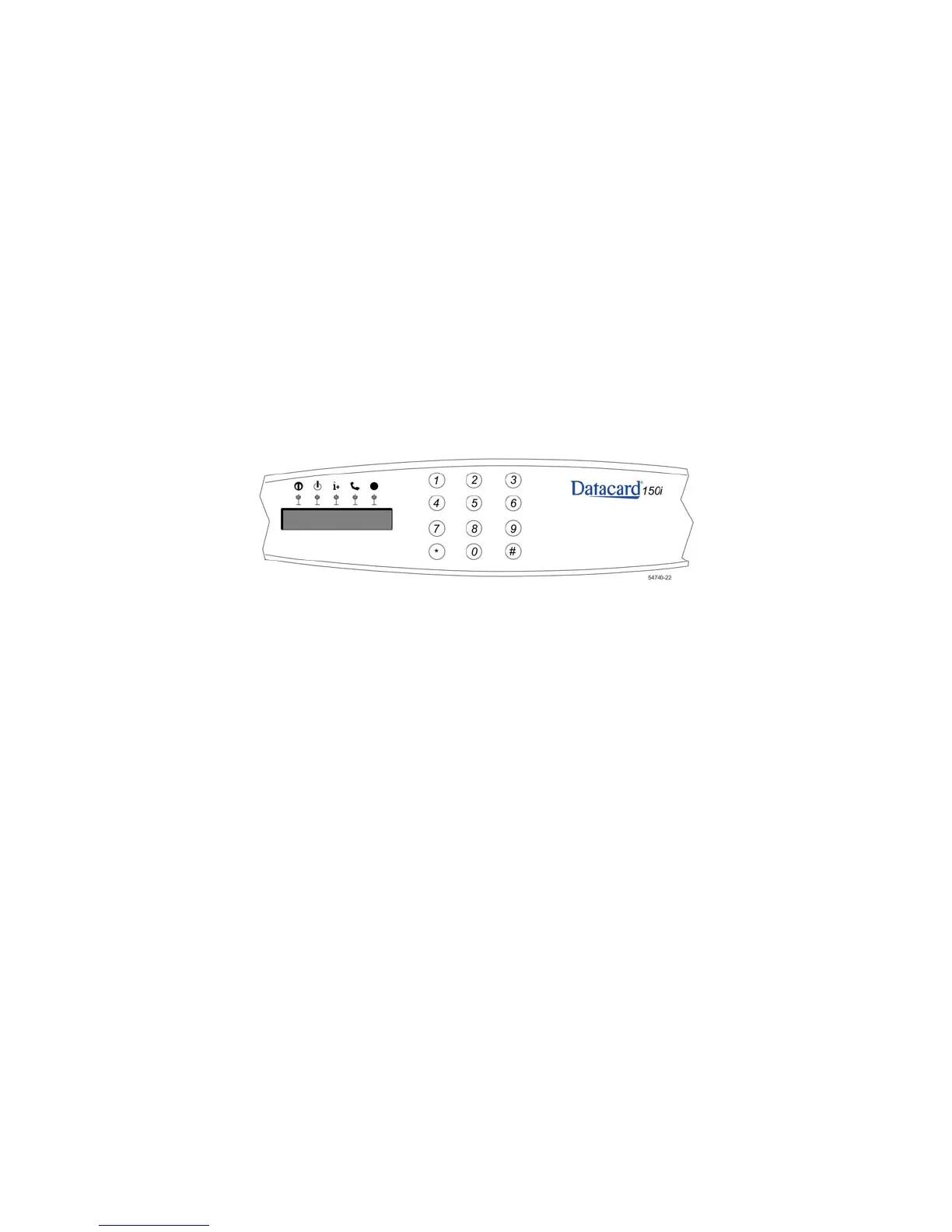

• To open the Top Cover using a password, using the keypad, enter *0 (unlock
code) followed by your 4-digit password (XXXX). The solenoid to open the
Top Cover will be energized for 5 seconds.
• The message “OPEN COVER!” is displayed. If the password is entered
incorrectly, “ACCESS DENIED!” is displayed. To reenter the correct
password, press *0 followed by the correct password.
• To open the Top Cover using a key, insert the key in the keyhole and turn it
clockwise a quarter turn.
