14 Owner’s Manual
Replacing the Topping Foil

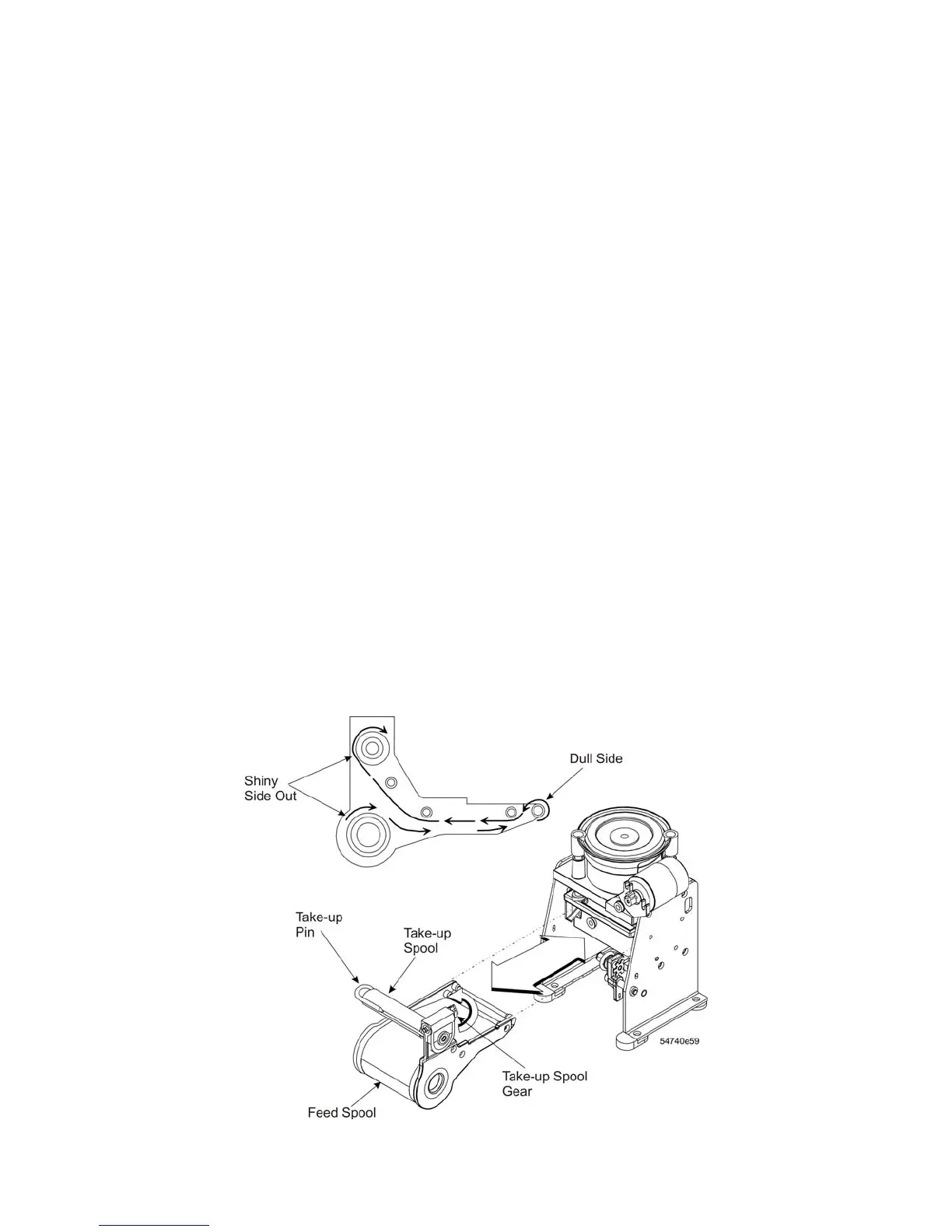

To replace the Topping Foil, perform the following steps:
1. Unlock and lift the Top Cover.
2. Lift the Topper Cassette Release Ring and pull the Topper Cassette out of the
Topper Module (toward the front of the 150i system).
3. Pull the Take-up Pin out of the Topper Cassette and remove any used
Topping Foil from the Take-up Spool.
4. Pull the Feed Spool from the Topper Cassette and remove the core and any
unused foil from the Topper Cassette Feed Spool.
5. Insert the Topper Cassette Feed Spool into the core of the new topping foil.
6. Insert the Feed Spool with the new Topping Foil so it feeds from the top with
the shiny side up and snap into place in the cassette.
7. Wrap the Topping Foil with the shiny side toward the Topping Foil Roller.
8. Wrap the end of the Topping Foil, shiny side out, around the Take-up Spool
and replace the Take-up Pin so it holds the topping foil securely in place.
Remove slack in the Topping Foil either by winding either the Take-up Spool
gear or the Supply Spool.
9. Replace the Topper Cassette by lifting the Topper Cassette Release Ring and
inserting the Topper Cassette in the Topper Module until it is firmly in place.
10. Close the Top Cover.
