DataCard SD160 User Manual

A-6 Windows Printer Sharing
3. Add the printer to the client PC.
a. Open the Windows Devices and Printers window.
b. Select Add a printer. The Add
Printer wizard displays.

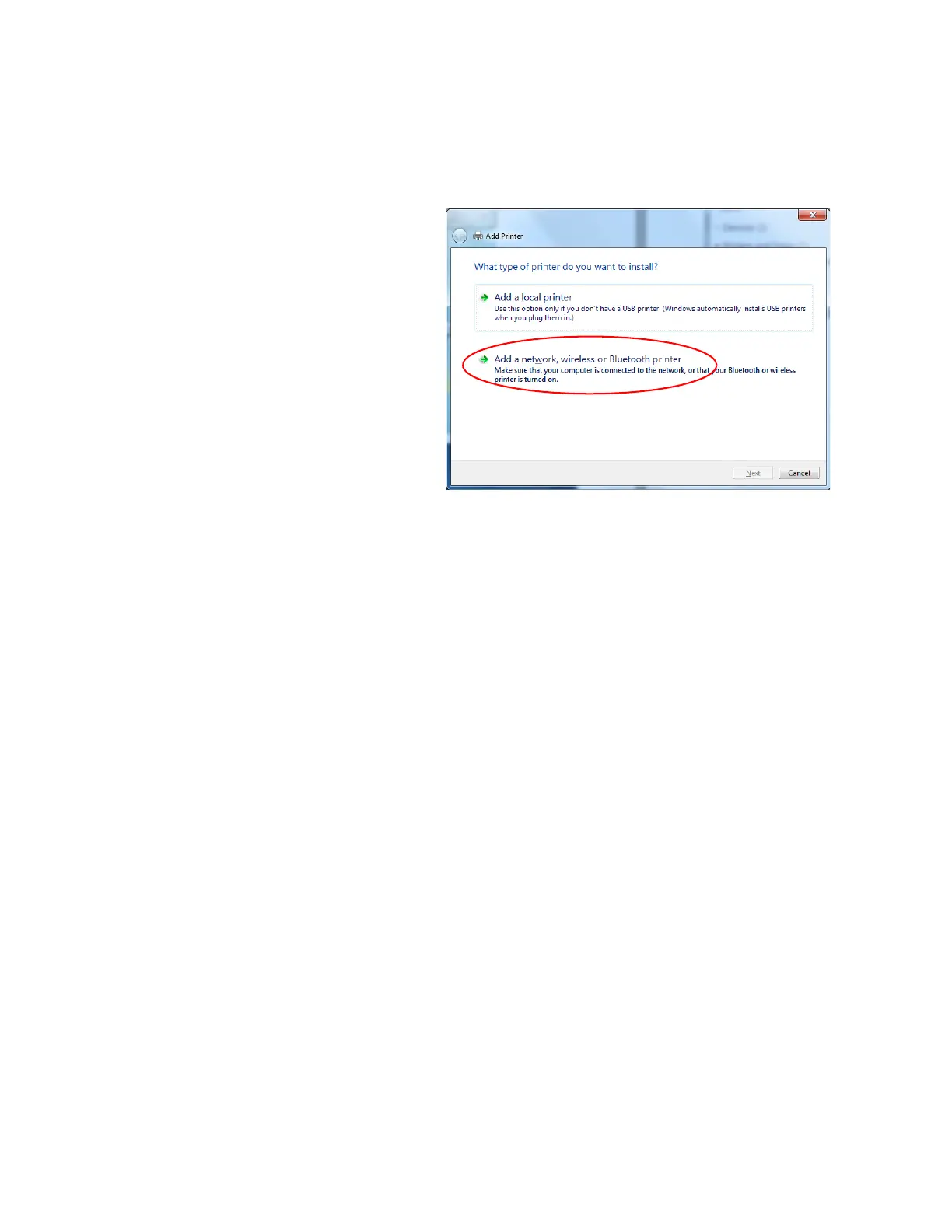

c. Select Add a network,
wireless or Bluetooth
printer.
The system searches for
networked printers and
displays the Select a printer
page.
d. Select the printer to which
you want to connect.
If the printer does not display
in the list:
i. Click The printer that I want isn’t listed. The Find a printer by name or TCP/IP
address page displays.
ii. Click Select a shared printer by name.
e. Enter the name of the host PC and the shared printer name by doing one of the
following:
 Use the names you wrote down during the host PC installation using the format:
\\host PC name\shared printer name
 If you don’t have the printer name, enter the host PC name using the format:
\\host PC name\

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
