DataCard SD160 User Manual

XPS Card Printer Driver User’s Guide A-7

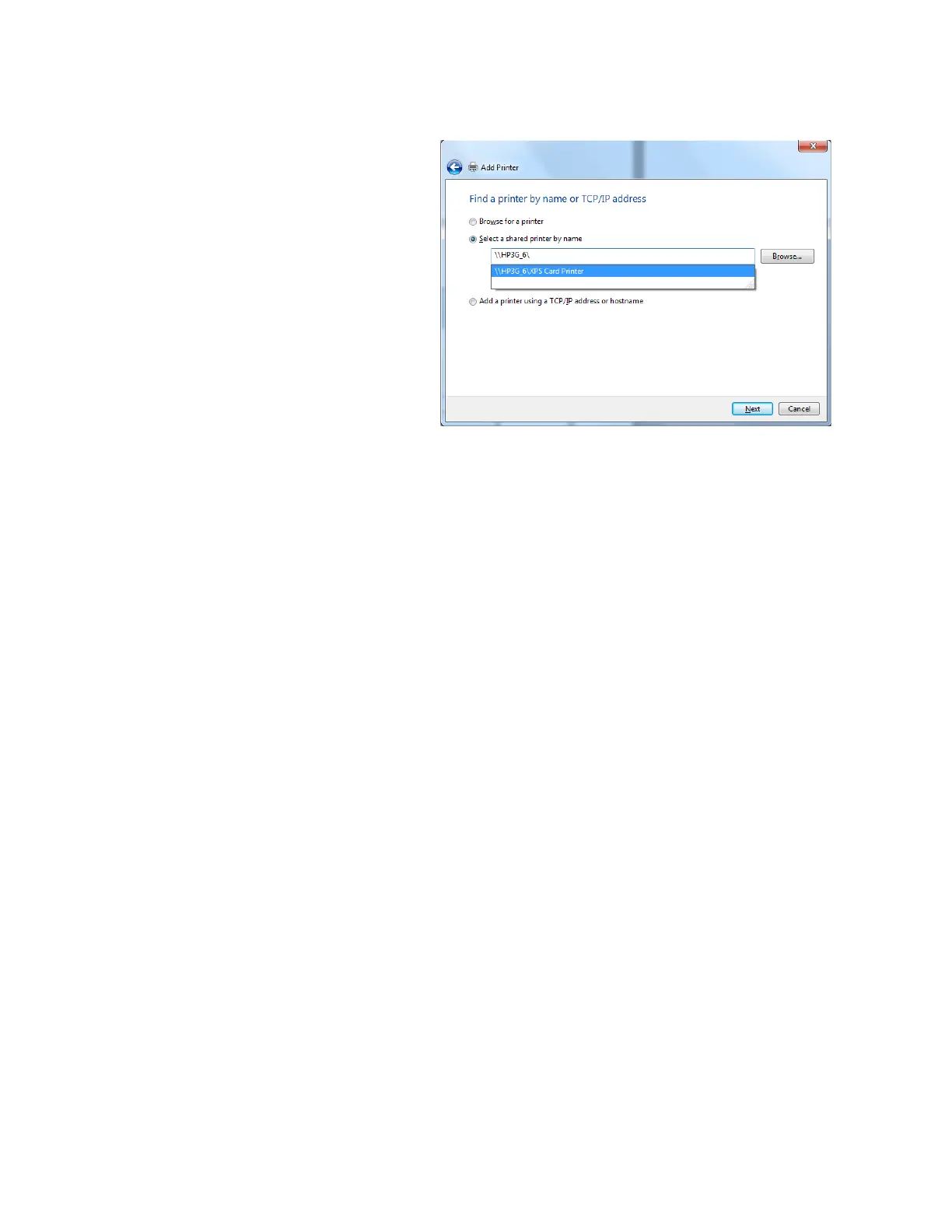

When you type the last
backslash without a
printer name, a list of
host printers displays in
a drop-down list.
Select the shared printer
from the drop-down list.
f. Click Next. If the Do you
trust this printer? dialog box
displays, click Install Driver.
Windows installs the Card
Printer Driver. The message
“You’ve successfully added
printer name” displays when the installation is complete. Click Next.
g. Close any open windows.
h. Click Finish to end the Add Printer wizard.
4. If card production software is installed on this computer, or if you need other support files,
such as magnetic stripe fonts, install the Printer Plug-in or support files from the Driver
Installation CD. For instructions, refer to “Install Support Files” on page 22.
5. Configure the client PC printing preferences.
a. From the Devices and Printers window, right-click the card printer icon and select
Printing preferences. The Printing Preferences window displays.
b. Specify your printing preferences.
Refer to “Design Tasks in Windows Printing Preferences” on page 65 for more
information.
c. Click OK to close the Printing Preferences window.

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
