DataCard SD160 User Manual

XPS Card Printer Driver User’s Guide 11

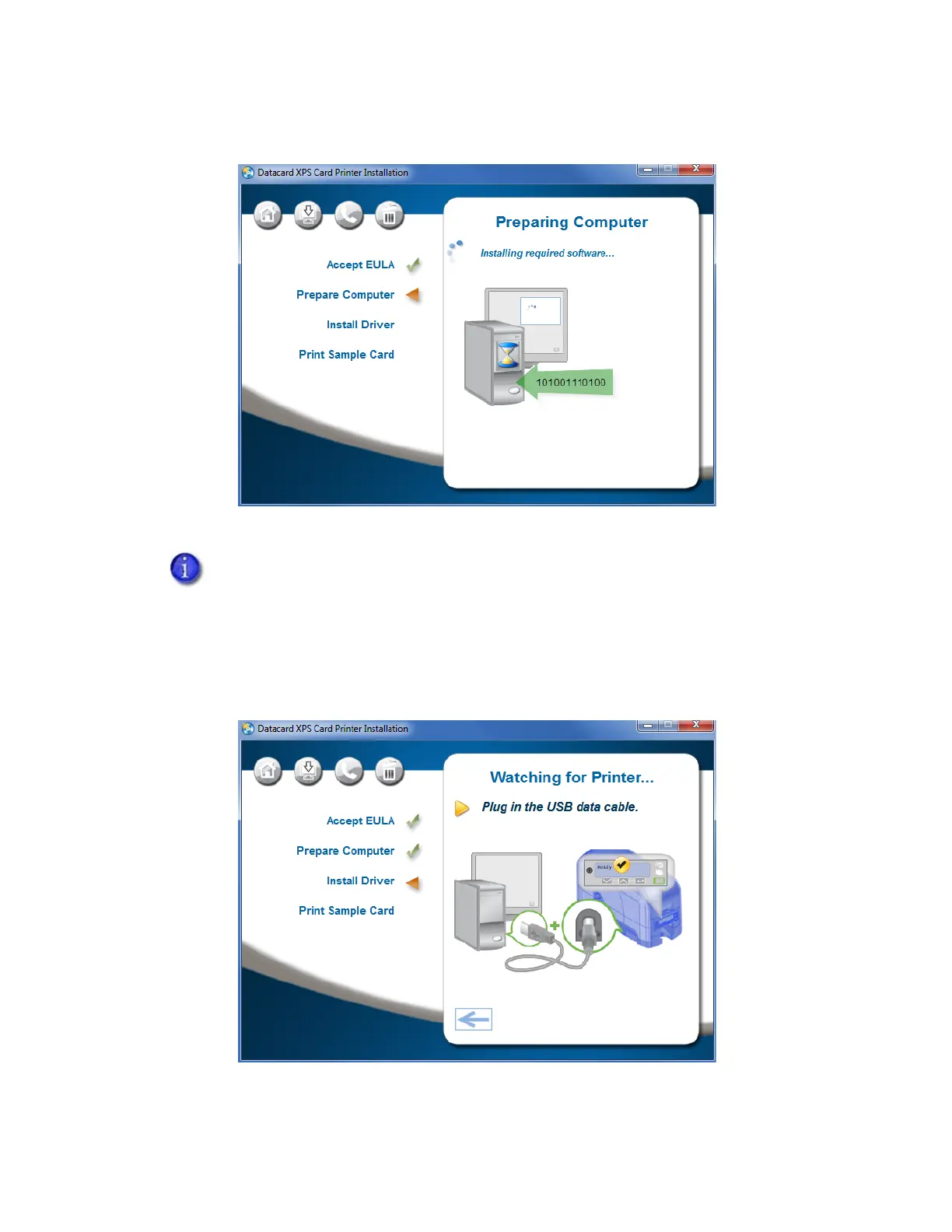

The Card Printer Driver begins loading.
4. When prompted, connect the printer to the PC with a USB cable, as shown on your screen.
 If you are using a USB connection, continue with step 4.
 If you are using a network connection, skip to step 5.
USB Installation:

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
