DataCard SD160 User Manual

40 Card Printer Driver Management Tasks
Windows 7, Windows 8.1, and Windows 10

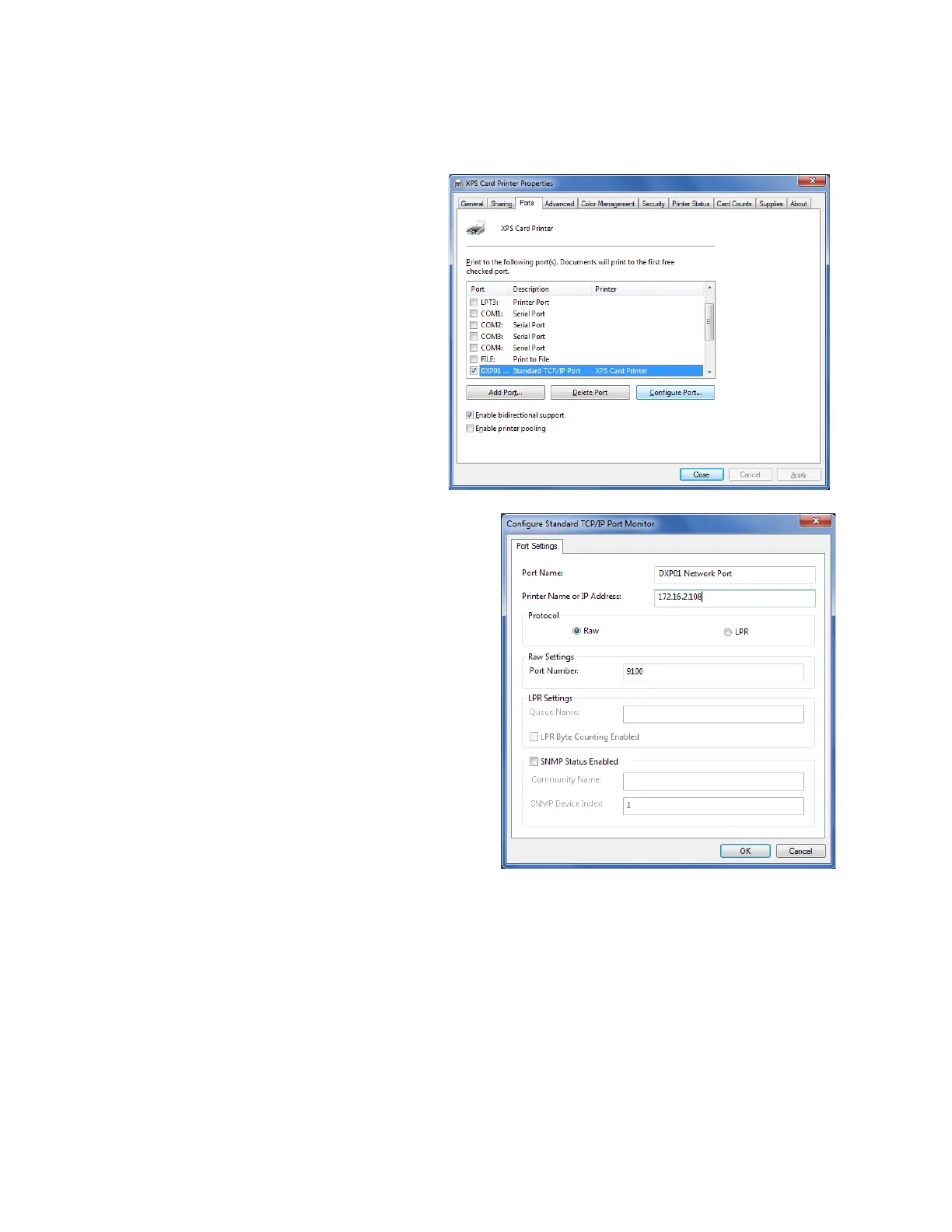

1. Open the Printer Properties
window and select the Ports tab.
2. Select the installed network
printer you want to change and
click Configure Port.
3. On the Configure Standard TCP/IP
Port Monitor dialog box, enter the new
IP address for the printer.
4. Click OK to save the new settings and
then click Close on the Printer Properties
window.

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
