DataCard SD360 - Assemble the Printer and Laminator

A-6 SD460 Laminating System
Assemble the Printer and Laminator

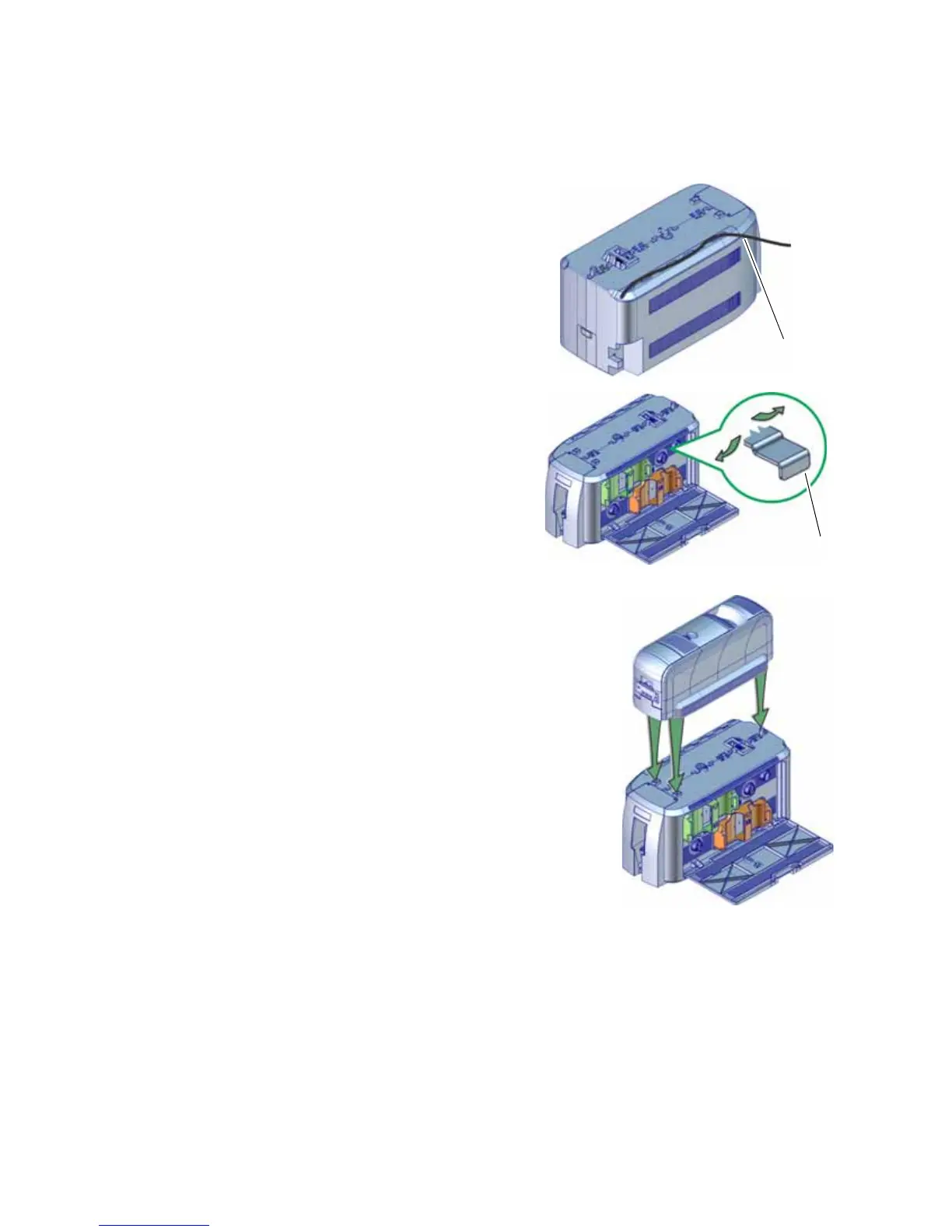

1. Locatetheinterconnectcableinthe
cableroutingareaofthelaminator
andmakesurethatitremains
accessible.
2. Openthelaminatoraccessdoor.
3. Slidetheprinterlockingleverinthe
laminatortothelefttopositionthe
mountinglockintheunlocked
state.
4. Lifttheprinteroverthelaminator
andalignthepinsonthelaminatorwiththe
holesontheundersideoftheprinter.
5. Pressdownontheprintercarefully,butfirmly,
topositionit.
6. Pushtheprinterlockinglevertotherightto
locktheprinterontothelaminator.Makesure
thattheprinterissecurelylockedtothe
laminator.
7. Closethelaminatoraccessdoor.
Interconnect
Cable
Lock
Unlock
Printer Locking
Lever
